34 21 171 Removing and installing / replacing a brake carrier / brake guard at rear

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove expander lock, refer to 34 41 250 REMOVING AND INSTALLING/REPLACING EXPANDER LOCK FOR HANDBRAKE SHOES .
Remove wheel hub

Release screws (1) and remove brake carrier (2).

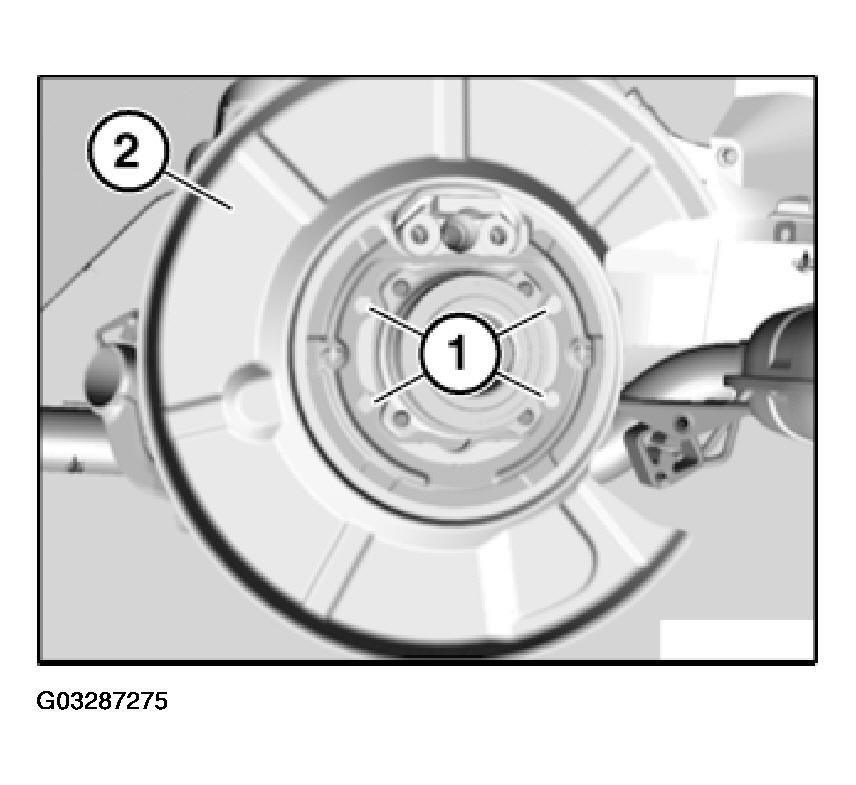

Fig 1: Releasing Screws And Removing Brake Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 34 21 6AZ in BRAKES - TIGHTENING TORQUES - 645CI .
