34 41 220 Removing and installing/replacing all handbrake shoes

Special tools required:

• 32 1 030
• 34 4 000

Installation:

• Remove rear brake disk, refer to 34 21 320 REMOVING AND INSTALLING OR REPLACING BOTH REAR BRAKE DISKS

After completing tasks, adjust handbrake, refer to 34 10 014 ADJUSTING HANDBRAKE .

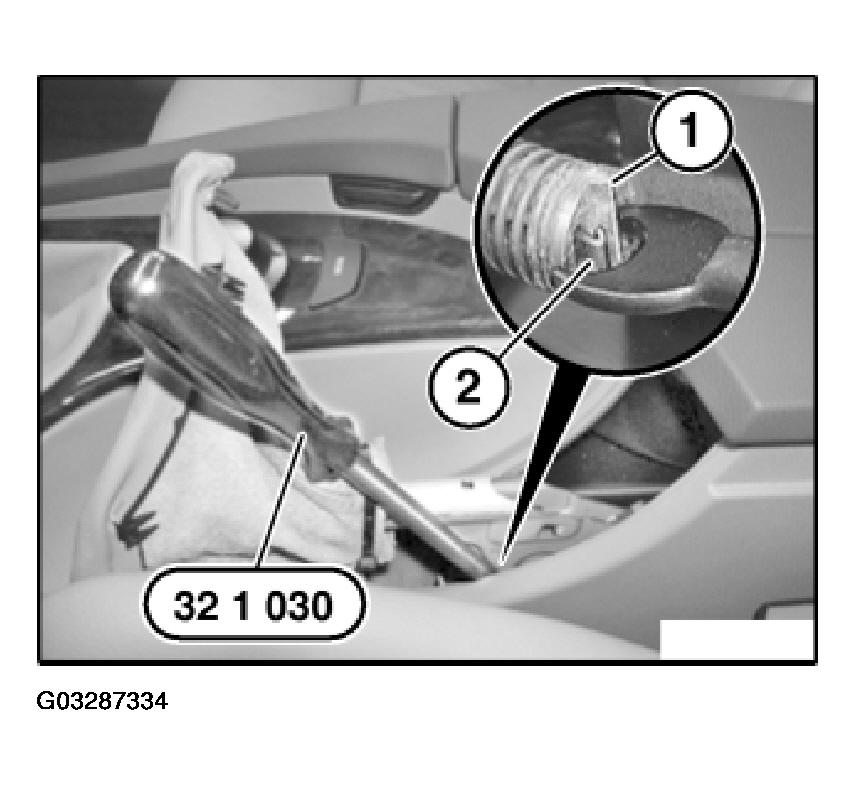

Lock adjuster unit (ASZE). Using special tool 32 1 030, press stop (2) of adjusting spring back to such an extent that retaining hook (3) engages in stop (2).

Fig 1: Pressing Adjusting Spring With Special Tool 32 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect return spring (1) with brake spring pliers.

Installation:

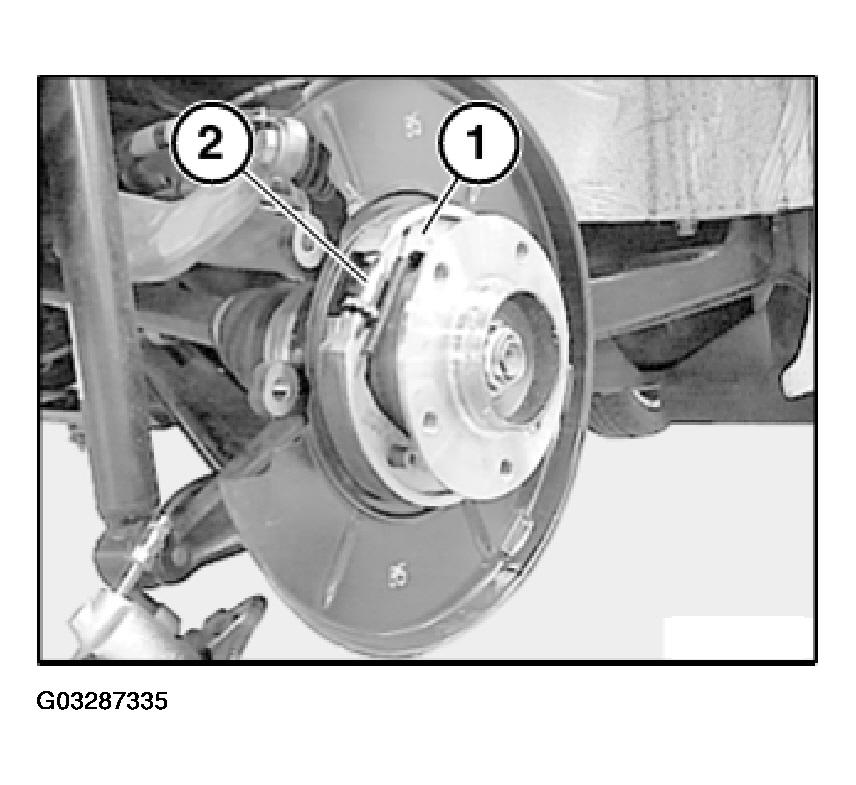

1. Check and if necessary replace return spring (1). Figure illustrates right side: left side is mirror image of this. Pay attention to installation position of adjustment screw (2).
Fig 2: Identifying Return Spring And Adjustment Screw
Courtesy of BMW OF NORTH AMERICA, INC.
2. Apply a thin coat of grease to bush and screw threads, Refer to OPERATING FLUIDS - BRAKES .

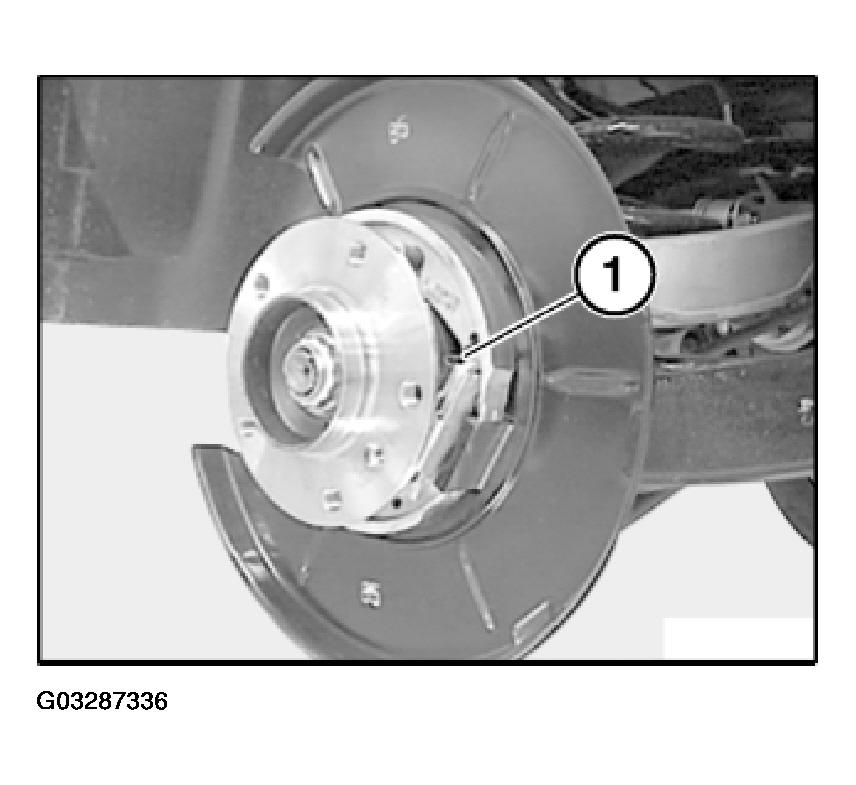

Disconnect return spring (1) with brake spring pliers.

Fig 3: Disconnecting Return Spring (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Check and if necessary replace return spring (1).

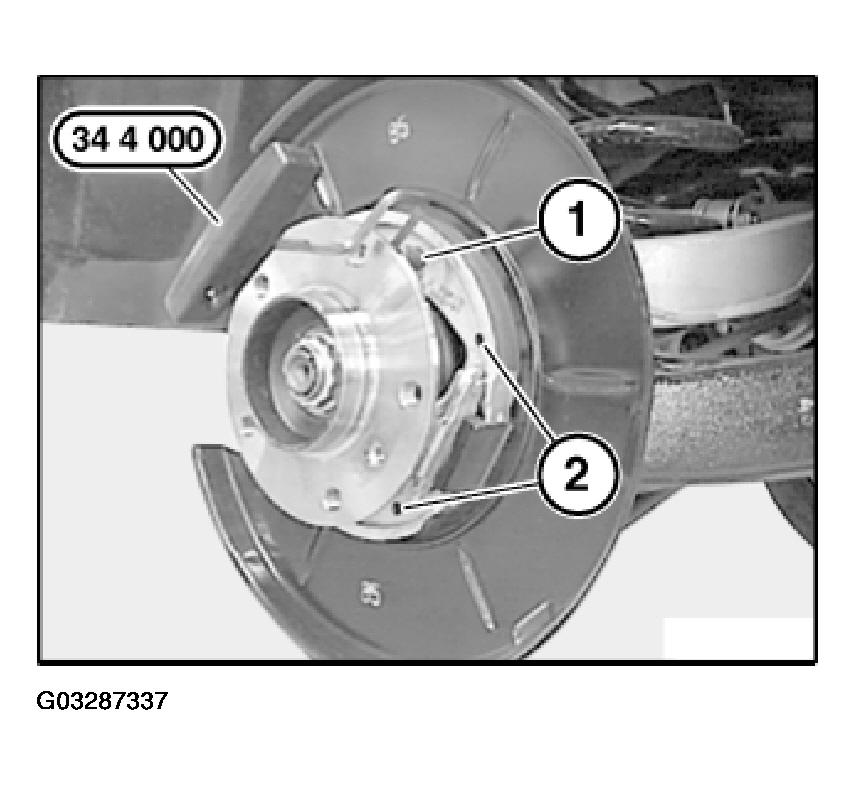

Turn clamping pins (1) with special tool 34 4 000 through 90° and disconnect.

Remove brake shoes (2).

Fig 4: Removing Brake Shoes

Courtesy of BMW OF NORTH AMERICA, INC.
