34 41 120 Removing and installing / replacing both handbrake Bowden cables

Special tools required:

• 32 1 030

Necessary preliminary tasks:

• Remove center console, refer to 51 16 200 REMOVING AND INSTALLING STORAGE COMPARTMENT .
• Remove rear brake disks, refer to 34 21 320 REMOVING AND INSTALLING OR REPLACING BOTH REAR BRAKE DISKS .
• Remove exhaust system.
• Remove heat shield.

After completing tasks, adjust handbrake, refer to 34 10 014 ADJUSTING HANDBRAKE .

Lock adjuster unit (ASZE).

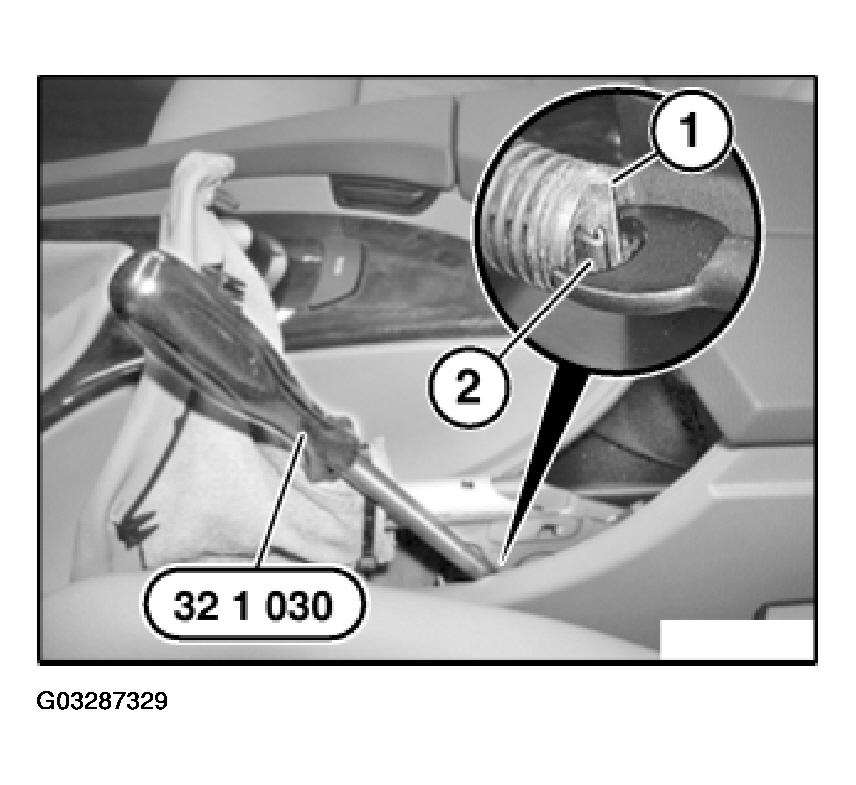

Using special tool 32 1 030, press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).

Fig 1: Pressing Adjusting Spring With Special Tool 32 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

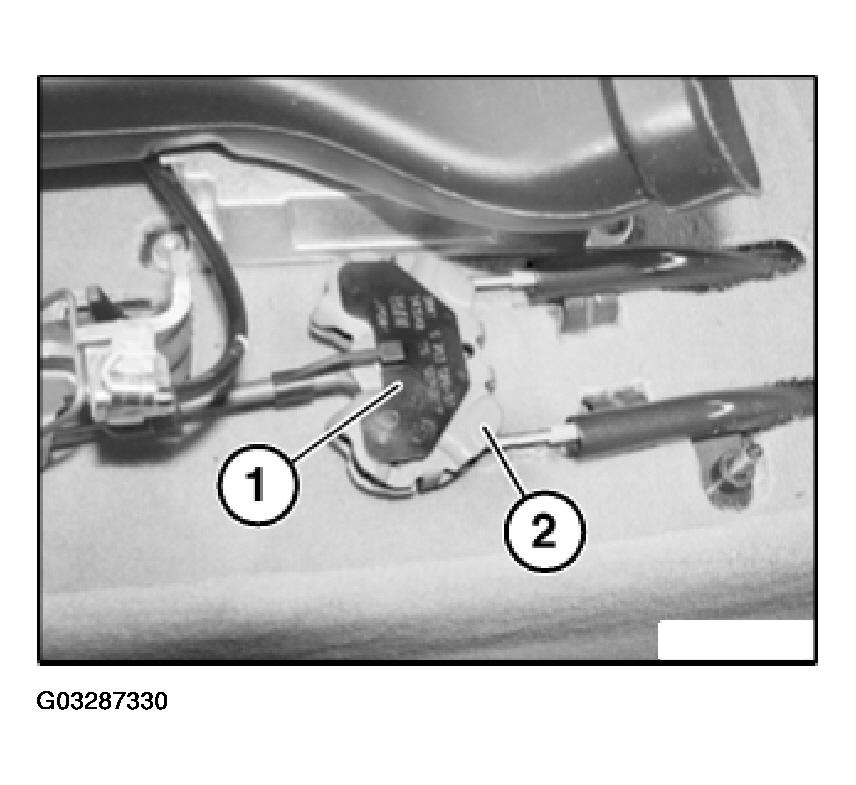

Unclip mounting clip (1) upwards out of balance arm (2).

Fig 2: Releasing Mounting Clip From Balance Arm

Courtesy of BMW OF NORTH AMERICA, INC.

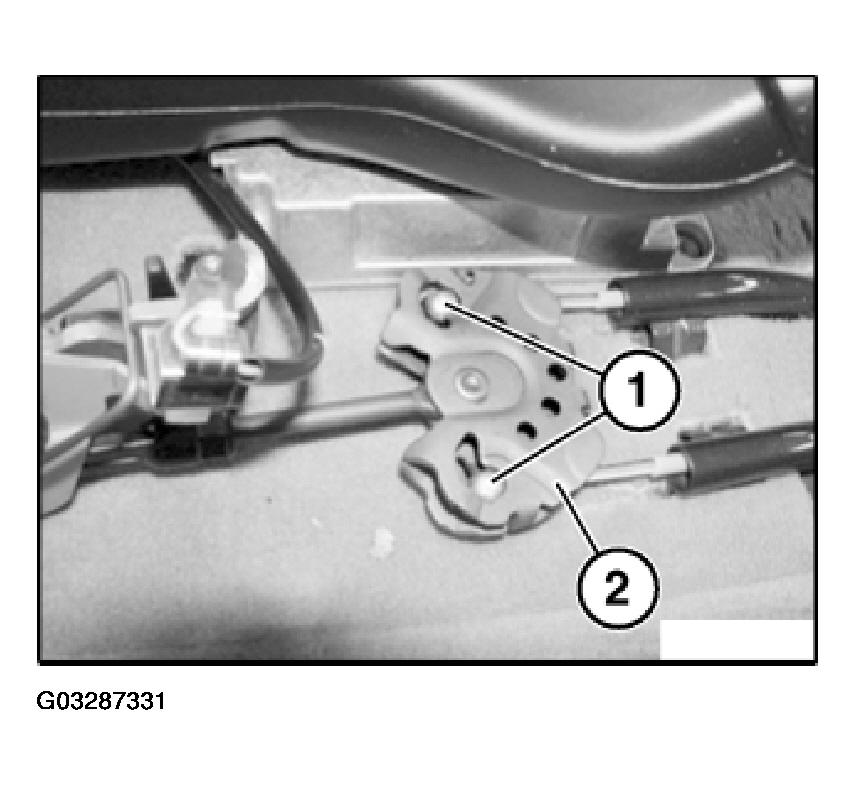

Guide handbrake Bowden cables (1) with a screwdriver inwards and pull out of balance bar (2).

Fig 3: Removing Handbrake Bowden Cables From Balance Bar

Courtesy of BMW OF NORTH AMERICA, INC.

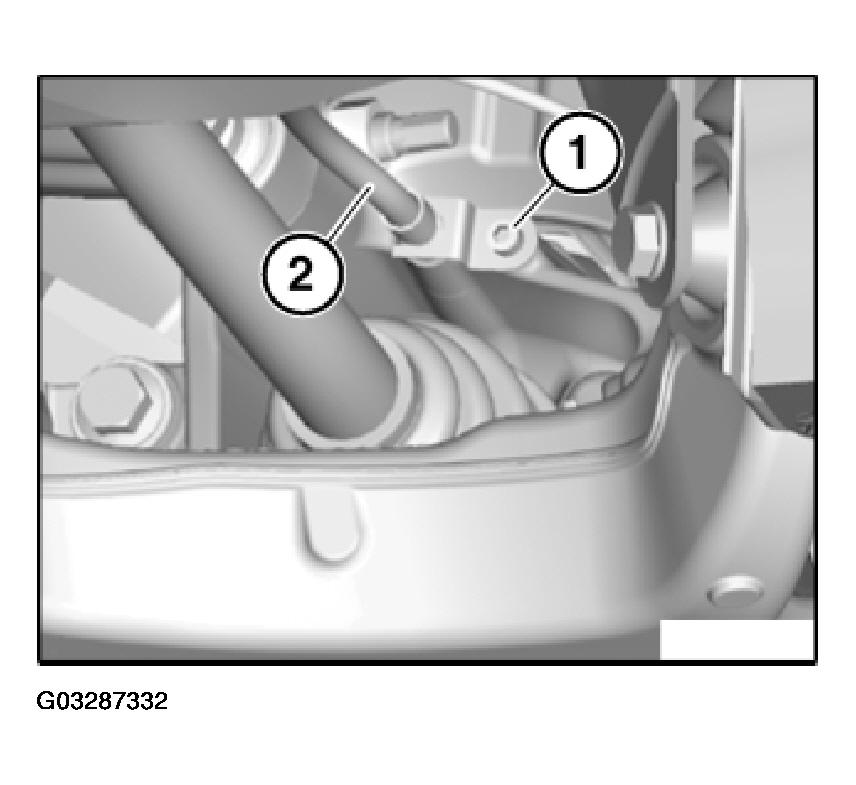

Disconnect handbrake Bowden cables at expander locks. Release screw (1) and remove bracket.

Installation:

Tightening torque, refer to 34 41 5AZ in BRAKES - TIGHTENING TORQUES - 645CI .

Pull handbrake Bowden cables (2) out of wheel carrier.

Fig 4: Removing Handbrake Bowden Cables From Wheel Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

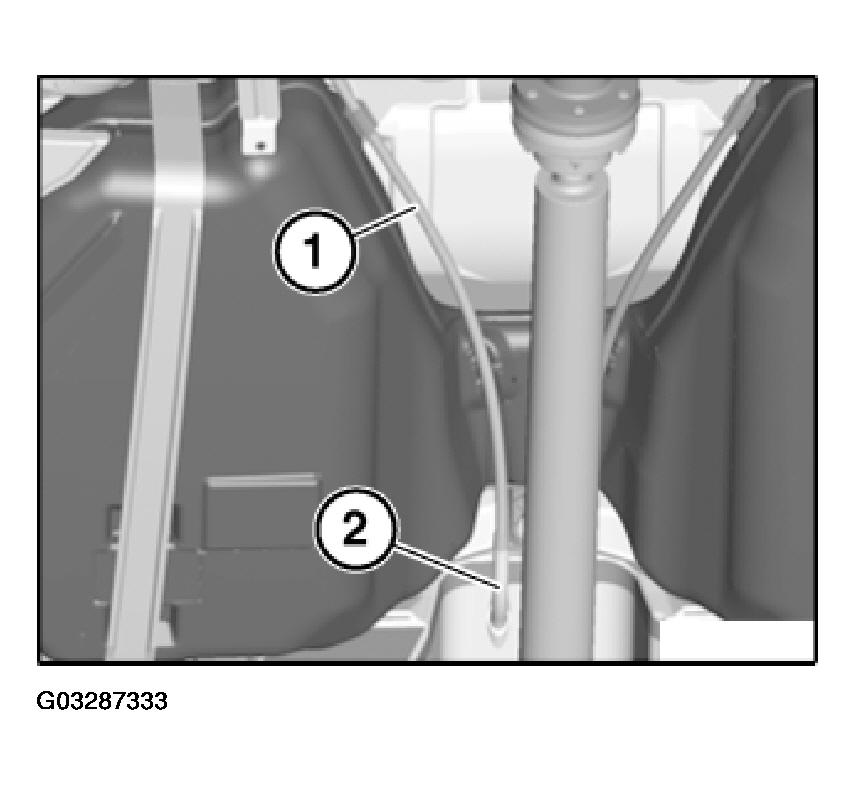

Disconnect handbrake Bowden cables (1) out of mountings. Pull handbrake Bowden cables (1) out of guide (2) and remove.

Fig 5: Removing Handbrake Bowden Cables From Guide

Courtesy of BMW OF NORTH AMERICA, INC.
