34 11 250 Removing and installing / replacing a brake carrier / brake guard plate at front

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front brake disks, refer to 34 11 220 REMOVING AND INSTALLING/REPLACING BOTH FRONT BRAKE DISKS .

Release screws (1) and remove brake guard plate (2).

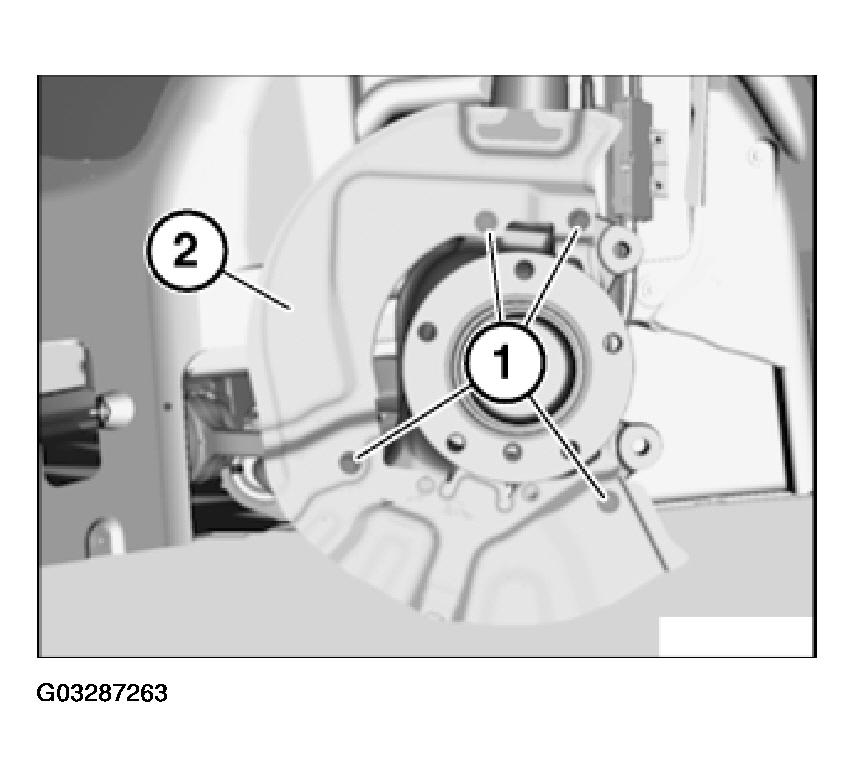

Fig 1: Releasing Screws And Removing Brake Guard Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 34 11 5AZ in BRAKES - TIGHTENING TORQUES - 645CI .
