34 00 017 Checking brake booster (low-pressure test)
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 34 3 100
Necessary preliminary tasks:
- Remove left microfilter housing, refer to 64 31 061 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT MICROFILTER HOUSING LOWER SECTION .

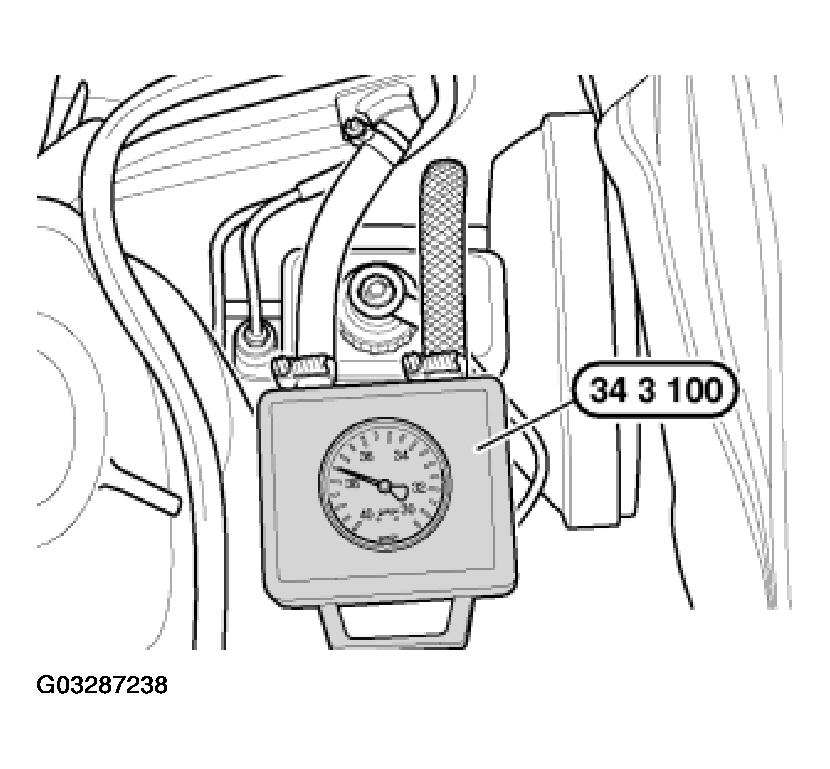

- Detach hose from connection piece. Install vacuum tester 34 3 100 between connection piece and vacuum hose of non-return valve.
- Start engine.
- Check buildup of partial vacuum.
- Switch off engine.
- Press the brake pedal to set a vacuum pressure of not more than 0.8 bar and wait for the value to stabilize.
- When the brake pedal is not pressed, the vacuum pressure is permitted to drop over a test period of 1 minute by max. 0.06 bar.
If specified values are not reached:
- Check line connections for vacuum seal.
- Replace non-return valve.
- Check seal between brake booster and brake master cylinder (sealing ring) for perfect condition and correct seating.
- If the specified values are not achieved when the test is repeated, you must replace the brake booster.
