11 37 006 Removing and installing/replacing left eccentric shaft (S63T 0)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 480
Bank 2

(cylinder bank 5 to 8)

Necessary preliminary tasks:

REMOVE the engine with front axle.
Remove left INTERMEDIATE LEVER
Remove left SERVOMOTOR .
Remove left intake camshaft. See 11 31 032 REMOVING AND INSTALLING/REPLACING THE LEFT INTAKE CAMSHAFT (S63T0) .

IMPORTANT: All intake side bearing supports are marked and may only be reinstalled at the same position.

Unfasten screws (2 and 3).

Remove intake side bearing support (1) and place on special tool 11 4 480 in an orderly fashion.

Illustration of cylinders 1 to 4.

Fig 1: Identifying Intake Side Bearing Support And Screws

G10043457

Courtesy of BMW OF NORTH AMERICA, INC.

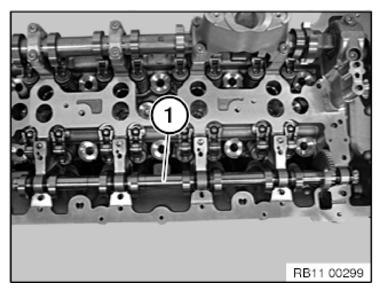

Lift off eccentric shaft (1).

Illustration of cylinders 1 to 4.

Fig 2: Identifying Eccentric Shaft

G10043458

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of mixing up the eccentric shafts.
Identification: 14 = cylinders 1 to 4.
Identification: 58 = cylinders 5 to 8.

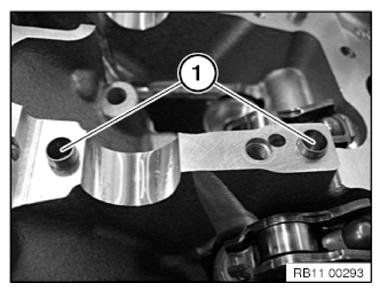

Check fitting bushes (1) for damage and replace if applicable.

Fig 3: Identifying Fitting Bushes

G10043459

Courtesy of BMW OF NORTH AMERICA, INC.

Insert intermediate shaft 58 for cylinders 5-8.

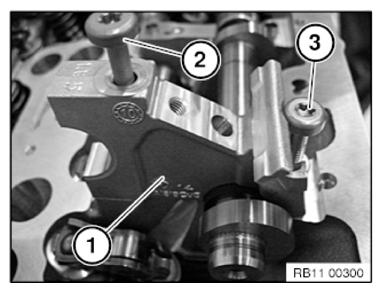

Place bearing support (1) in position.

Insert screws (2 and 3).

Tightening torque: 11 37 1AZ

Illustration of cylinders 1 to 4.

Fig 4: Identifying Bearing Support And Screws

G10043460

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME.
