11 36 715 Removing and installing/replacing both solenoid valves on left side (N63O1)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Always check that the solenoid valves are clean during removal and installation.
Possible malfunctions if valves are contaminated:

Irregular operation
OBD incorrect entry
Poor exhaust gas values
Low engine performance

IMPORTANT: Risk of damage!
Do not clean solenoid valves with compressed air.

Solenoid valves, cylinders 5-8:

Necessary preliminary work:

Read out fault memory in DME control unit
Switch off ignition
Remove left INTERCOOLER .

Unlock plug connections of solenoid valves (1 and 2) and disconnect.

Installation note:

Plug connections must snap audibly into place!

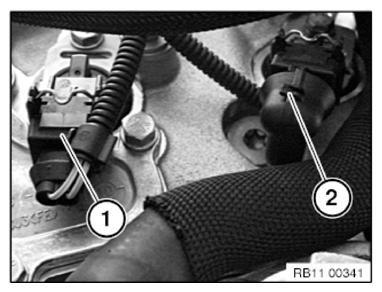

Fig 1: Identifying Solenoid Valves Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Solenoid valve (2) controls the exhaust adjustment unit.
Solenoid valve (4) controls the inlet adjustment unit.

Release screws (1 and 3).

Tightening torque 11 36 3AZ .

Pull out solenoid valves (2 and 4).

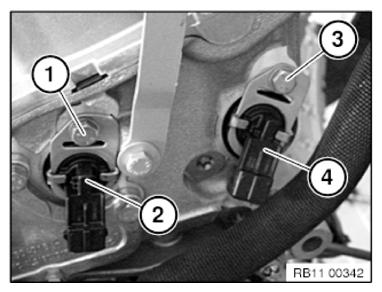

Fig 2: Identifying Adjustment Unit Solenoid Valves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace O-rings (1 and 2) on solenoid valve.

Installation note:

To install solenoid valves, coat both O-rings with engine oil.

If the solenoid valve is to be reused, the filter strainer (see arrow in illustration) must be cleaned.

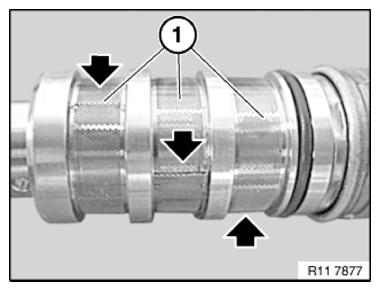

Fig 3: Locating Solenoid Valve O-Rings

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If a filter element is clogged with dirt, the filter element (filter strainer) may be removed.

Release filter elements (1) at contact edges.

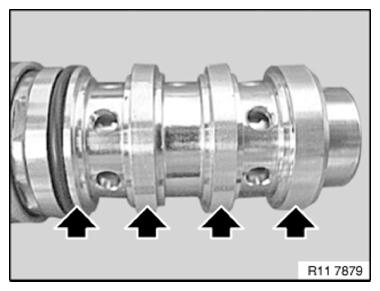

Fig 4: Locating Filter Elements

Courtesy of BMW OF NORTH AMERICA, INC.

Bend open welding spots on filter element (1) with a screwdriver (2) in direction of arrow until welding spots are opened.

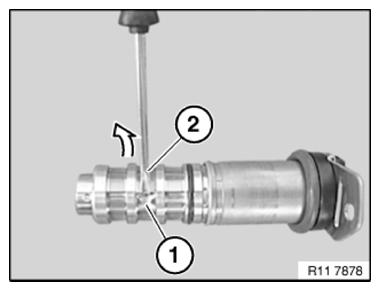

Fig 5: Bending Open Welding Spots On Filter Element Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Avoid damage to the solenoid valve housing such as notches or scratches (see arrows in illustration).

Installation note:

Apply engine oil to O-ring.

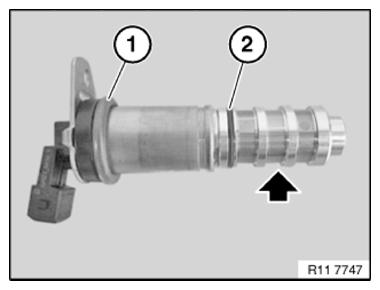

Fig 6: Locating Solenoid Valve Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Gently insert solenoid valves as far as stop.

Ensure correct installation position.

Insert screws (1 and 3) and tighten down.

Tightening torque 11 36 3AZ .

Fig 7: Identifying Solenoid Valves Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Clear diagnostic fault entries from fault memory.

Check function of DME control unit.
