11 33 062 Removing and installing/replacing all hydraulic valve clearance compensating elements (HVC) (S63T 0)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 480

Necessary preliminary tasks:

Remove all rocker arms . See 11 33 052 REMOVING AND INSTALLING/REPLACING ALL ROCKER ARMS ON LEFT SIDE (S63T 0) and 11 33 054 REMOVING AND INSTALLING/REPLACING ALL ROCKER ARMS, RIGHT (S63T 0) .

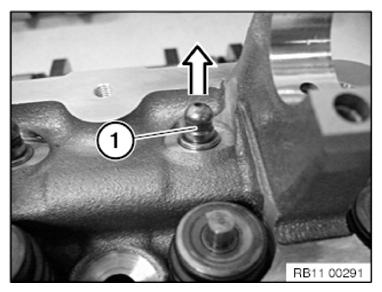

Remove hydraulic valve clearance compensating elements (1) in direction of arrow.

If the valve clearance compensating elements are to be reused, set them down in neat order in special tool 11 4 480 .

Fig 1: Removing Hydraulic Valve Clearance Compensating Elements

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
