11 41 115 Removing and installing/replacing hydraulic valve (N55)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove fan cowl with electric fan.
Have a cleaning cloth ready to catch escaping oil

Detach plug (1) from hydraulic valve (2).

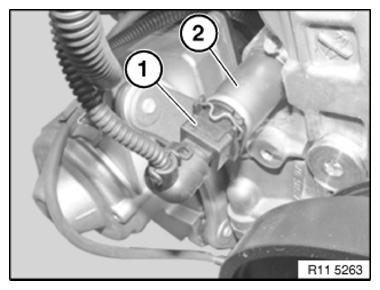

Fig 1: Identifying Hydraulic Valve And Connector

G10042485

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove hydraulic valve.

Tightening torque: 11 41 4AZ .

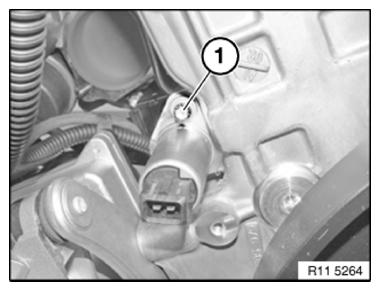

Fig 2: Identifying Hydraulic Valve Screw

G10042486

Courtesy of BMW OF NORTH AMERICA, INC.

Replace O-ring (1).

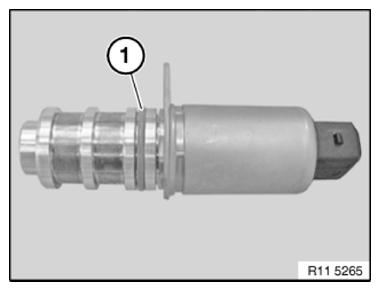

Fig 3: Identifying Hydraulic Valve O-Ring

G10042487

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of Digital Engine Electronics.

CHECK ENGINE OIL PRESSURE .

DIAGNOSIS PATH :

DME Motor Electronics
Complete vehicle
Drive
Engine electronics
Engine oil
Oil-pressure control
