11 41 000 Removing and installing/replacing oil pump (S63T 0)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

DRAIN ENGINE OIL .
REMOVE lower oil sump section.

Release screw (1).

Tightening torque: 11 41 4 AZ .

Release side of chain tensioner (2).

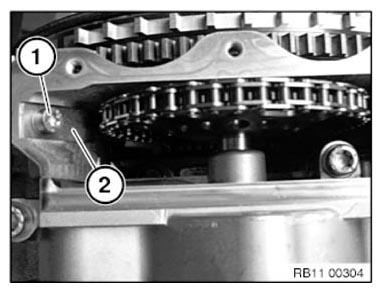

Fig 1: Identifying Chain Tensioner Screw

G09924858

Courtesy of BMW OF NORTH AMERICA, INC.

Remove chain tensioner (1).

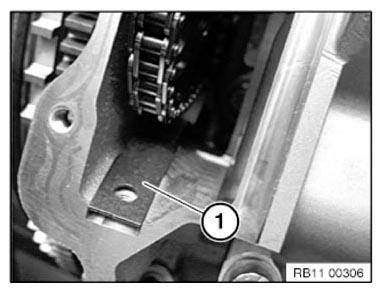

Fig 2: Identifying Chain Tensioner

G09924859

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 11 41 2AZ .

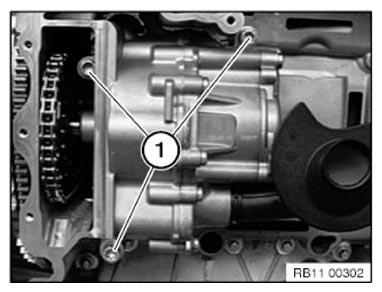

Fig 3: Identifying Oil Pump Screws

G09924860

Courtesy of BMW OF NORTH AMERICA, INC.

Raise oil pump chain (1).

Feed out the sprocket (2) of the oil pump.

Remove oil pump (3) in direction of arrow.

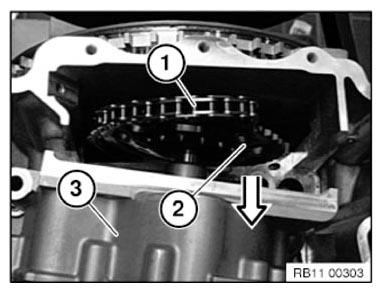

Fig 4: Removing Oil Pump

G09924861

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

When the oil pump is reused, check and clean the sealing surfaces.

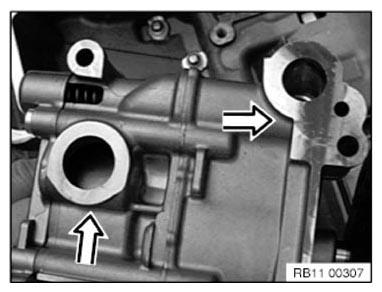

Fig 5: Identifying Oil Pump Sealing Surfaces

G09924862

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install the chain tensioner (1) in direction of arrow.

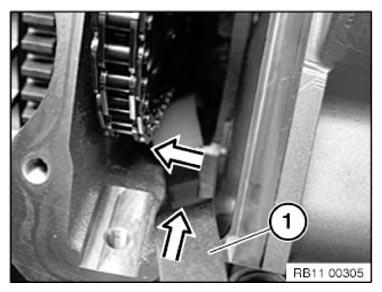

Fig 6: Installing Chain Tensioner

G09924863

Courtesy of BMW OF NORTH AMERICA, INC.

Secure chain tensioner (2) with screw (1).

Tightening torque: 11 41 4AZ .

Fig 7: Identifying Chain Tensioner With Screw

G09924858

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
