11 40 000 Checking engine oil pressure
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
WARNING:
Risk of scalding!
NOTE:
To check the engine oil pressure, remove the oil pressure switch and install and connect the special tool.
NOTE:
A small amount of engine oil emerges when the oil pressure switch is removed.
Have a cleaning cloth ready.
Have a cleaning cloth ready.
Necessary preliminary work:
- Follow BMW diagnosis instruction
- Remove OIL PRESSURE SWITCH

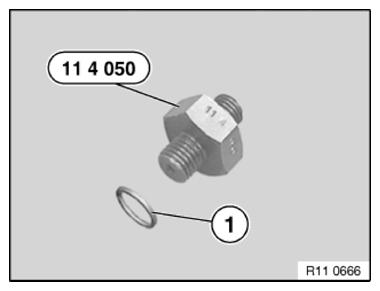

Special tool 11 4 050 is equipped with a sealing ring (1).
IMPORTANT:
Tightening torque of special tool 11 4 050
max. 20 Nm.

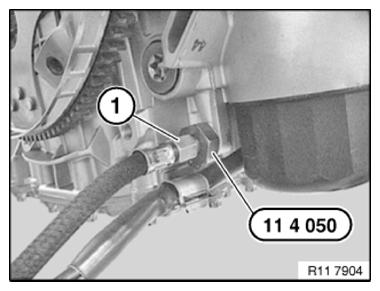

Screw special tool 11 4 050 into crankcase to max. 20 Nm.
Secure union nut (1) of special tool 13 3 063 to max. 15 Nm.
Checking engine oil pressure with DIS Tester:

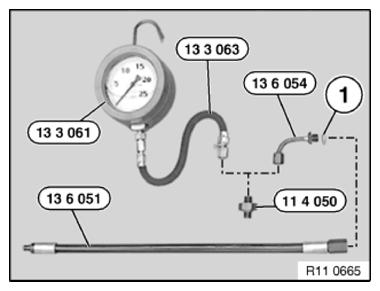

Screw special tool 13 6 054 with sealing ring (1) into special tool 13 6 051 and connect to DIS tester.
Checking engine oil pressure with pressure gauge:
Connect special tool 13 3 063 with special tool 13 3 061 (pressure gauge).
Start engine and check engine oil pressure.
