11 40 000 Checking engine oil pressure (N63O1)
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
WARNING:
Risk of scalding!
NOTE:
To check the engine oil pressure, remove the oil pressure switch and install and connect the special tool.
NOTE:
A small amount of engine oil emerges when the oil pressure switch is removed.
Have a cleaning cloth ready.
Have a cleaning cloth ready.
Necessary preliminary work:
- Follow BMW diagnosis instruction

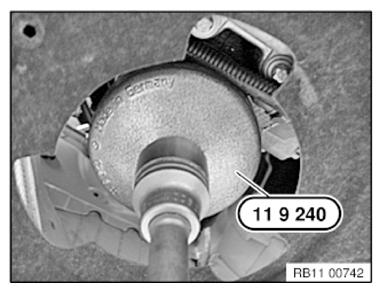

Remove oil filter with special tool 11 9 240 .

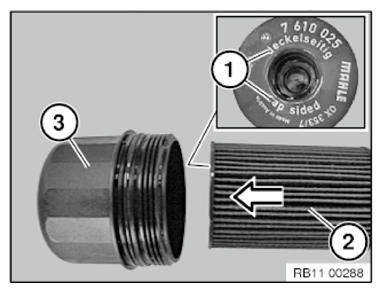

Mount oil filter element (2) on special tool 11 7 470 .

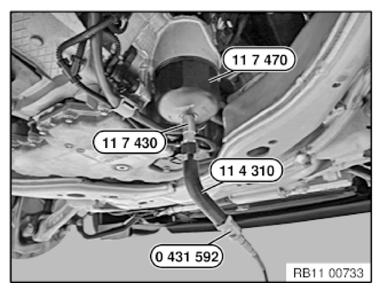

Screw special tool 11 7 470 into crankcase to max. 40 Nm.
Screw special tool 11 7 430 into special tool 11 7 470 with no more than 10 Nm.
Attach special tool 11 4 310 to special tool 11 7 430 using its union nut with maximum 15 Nm.
Hand-tighten hundred-bar sensor 0 431 592 onto special tool 11 4 310.
Checking engine oil pressure with DIS Tester:
Checking engine oil pressure with pressure gauge:
Start engine and check engine oil pressure.
