11 31 574 Adjusting camshaft timing on right side (S63T 0)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Release central bolts on adjuster only with special tool 2 249 117 .
Risk of damage  to timing drive.

(cylinder bank 1 to 4)

Necessary preliminary tasks:

Get set of special tools 2 249 117 ready for securing camshafts.

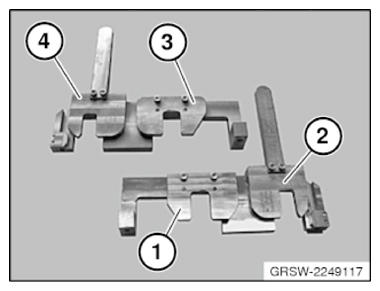

Fig 1: Identifying Special Tools (2 249 117)
G10042574Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 2 249 137 on intake camshaft.

Position exhaust camshaft with special tool 2 249 140 and attach to special tool 2 249 137 .

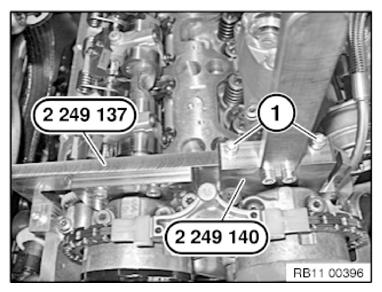

Fig 2: Checking Timing Adjustment Of Camshaft
G10042575Courtesy of BMW OF NORTH AMERICA, INC.

Release central bolts (1 and 2) of intake and exhaust camshaft adjusters.

Installation note:

Replace central bolts after releasing.

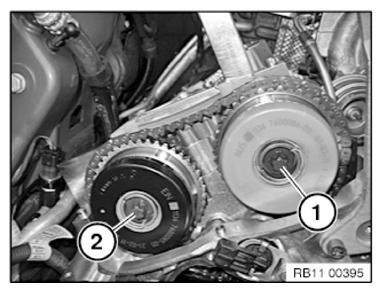

Fig 3: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjusters
G10042576Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Check whether head of central bolt (1) is greased (see arrow in illustration).

Installation note:

Coat contact surface of new central bolt (1) with copper paste.

Fig 4: Coating Contact Face Of New Central Bolt With Copper Paste
G10042577Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolts (1 and 2).

IMPORTANT: Loosen the central bolts (1 and 2) by maximum 40°.

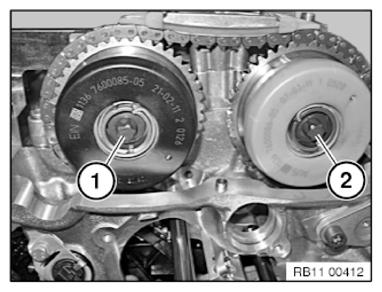

Fig 5: Identifying Central Bolts
G10042578Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190 .

Fig 6: Turning Engine To 150° Crankshaft Position Before TDC Firing Position Of Cylinder 1
G10042579Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Crank engine back at central bolt through 8°.

Position engine with special tool 11 9 190 in front of special tool 11 8 570 as shown in graphic.

Fig 7: Positioning Special Tools
G10042580Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The tightening sequence begins with the exhaust camshaft.

Insert central bolt (1) of exhaust camshaft with special tool 11 4 350 .

Jointing torque 5 Nm.

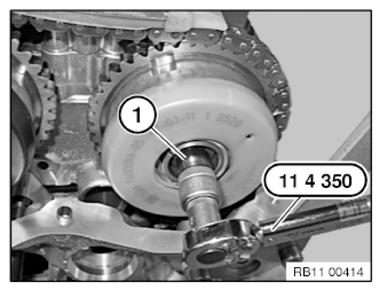

Fig 8: Inserting Central Bolt Of Exhaust Camshaft Using Special Tool (11 4 350)
G10042581Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of intake camshaft with special tool 11 4 350 .

Jointing torque 5 Nm.

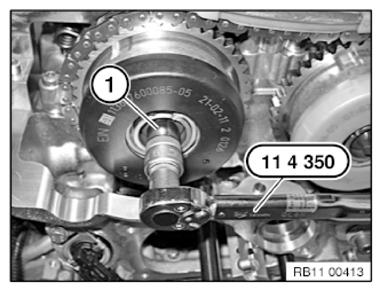

Fig 9: Inserting Central Bolt Of Intake Camshaft Using Special Tool (11 4 350)
G10042582Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190 .

Fig 10: Positioning Special Tools
G10042583Courtesy of BMW OF NORTH AMERICA, INC.

Turn the engine at the central bolt further until the special tool 11 9 190 can be positioned in the gear case cover.

The engine is now in the 150° crankshaft position before the TDC firing position of cylinder 1.

Fig 11: Turning Engine To 150° Crankshaft Position Before TDC Firing Position Of Cylinder 1
G10042584Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten central bolts beginning with the exhaust camshaft.

Insert central bolt (1) of exhaust camshaft with torque.

Tightening torque of 30 Nm

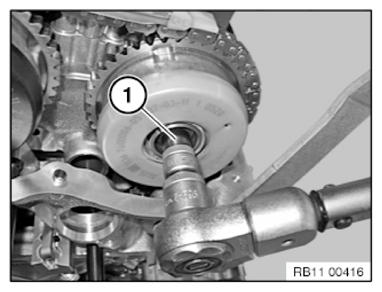

Fig 12: Tightening Central Bolts Of Exhaust Camshaft
G10042585Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of intake camshaft with torque.

Tightening torque of 30 Nm

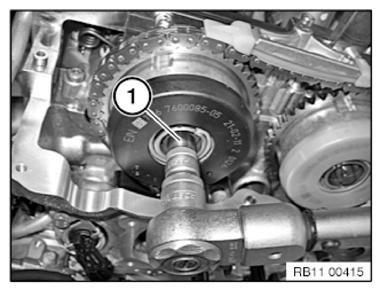

Fig 13: Tightening Central Bolts Of Intake Camshaft
G10042586Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of exhaust camshaft with special tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90°

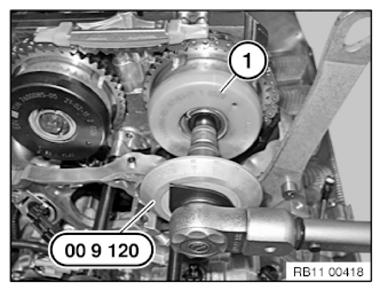

Fig 14: Inserting Central Bolt Of Exhaust Camshaft Using Special Tool (00 9 120)
G10042587Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of intake camshaft with special tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90°

Remove special tool 2 249 117 .

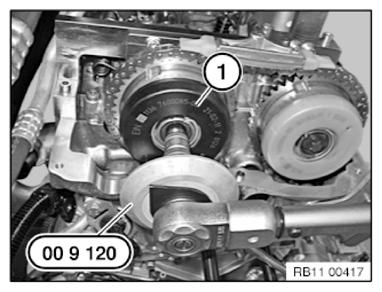

Fig 15: Inserting Central Bolt Of Intake Camshaft Using Special Tool (00 9 120)
G10042588Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tools 11 9 190 and 11 8 570 .

Crank engine at central bolt twice in direction of engine rotation until engine returns to 150° before cylinder no. 1 firing TDC position.

Secure vibration damper with special tools 11 8 570 and 11 9 190 in the 150° TDC firing position, cylinder 1.

Fig 16: Turning Engine To 150° Crankshaft Position Before TDC Firing Position Of Cylinder 1
G10042589Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 2 249 137 on intake camshaft and check timing adjustment.

NOTE: Timing is correctly adjusted when special tool 2 249 137 rests without a gap on cylinder head.

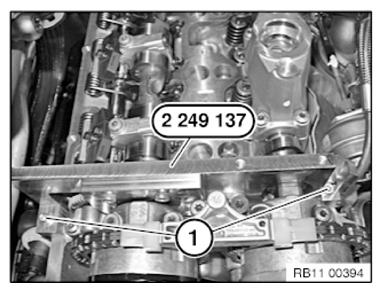

Fig 17: Checking Timing Adjustment - Intake Camshaft
G10042590Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 2 249 140 on the exhaust camshaft and check timing adjustment.

NOTE: Timing is correctly adjusted when special tool 2 249 140 rests without a gap on special tool 2 249 137 .

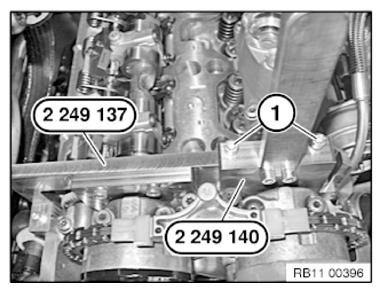

Fig 18: Checking Timing Adjustment Of Camshaft
G10042591Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Assemble engine.
