11 31 573 Adjusting camshaft timing on left side (S63T 0)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

(cylinder bank 5 to 8)

Necessary preliminary tasks:

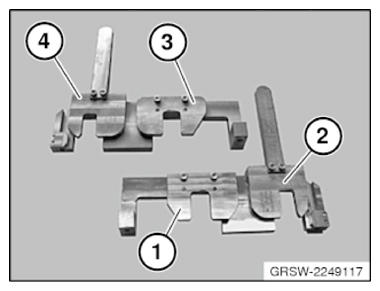

Get set of special tools 2 249 117 ready for securing camshafts.

Fig 1: Identifying Special Tools (2 249 117)
G10042530Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 2 249 144 on intake camshaft.

Position exhaust camshaft with special tool 2 249 159 and attach to special tool 2 249 144 .

Fig 2: Checking Timing Adjustment - Exhaust Camshaft
G10042531Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Mount special tool 2 249 117 .

Release central bolts (1 and 2) of intake adjuster and exhaust camshaft adjuster.

Installation note:

Replace central bolts after releasing.

Fig 3: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjuster
G10042532Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat contact surface of new central bolt (1) with 4.4 copper paste.

Fig 4: Coating Contact Face Of New Central Bolt With Copper Paste
G10042533Courtesy of BMW OF NORTH AMERICA, INC.

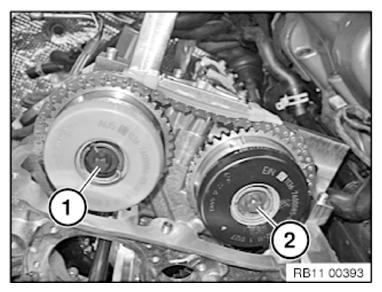

Insert central bolt (1 and 2).

IMPORTANT: Loosen the central bolts (1 and 2) by maximum 40°.
Fig 5: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjuster
G10042534Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Crank engine back at central bolt through 8°.

Position engine with special tool 11 9 190 in front of special tool 11 8 570 as shown in graphic.

Fig 6: Positioning Special Tools
G10042535Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten the central bolt (1) beginning with the intake camshaft.

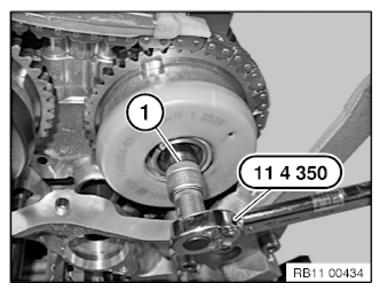

Insert central bolt (1) of intake camshaft with special tool 11 4 350 .

Jointing torque 5 Nm.

Fig 7: Inserting Central Bolt Of Intake Camshaft Using Special Tool (11 4 350)
G10042536Courtesy of BMW OF NORTH AMERICA, INC.

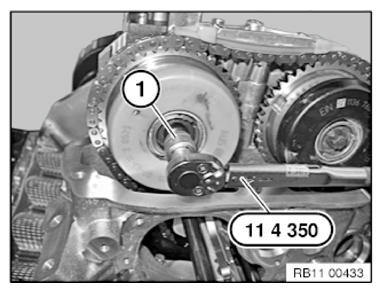

Insert central bolt (1) of exhaust camshaft with special tool 11 4 350 .

Jointing torque 5 Nm.

Fig 8: Identifying Connecting Rod Bolts And Crankshaft
G10042537Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190 .

Fig 9: Positioning Special Tools
G10042538Courtesy of BMW OF NORTH AMERICA, INC.

Turn the engine at the central bolt further until the special tool 11 9 190 can be positioned in the gear case cover.

The engine is now in the 150° crankshaft position before the TDC firing position of cylinder 1.

Fig 10: Turning Engine To 150° Crankshaft Position Before TDC Firing Position Of Cylinder 1
G10042539Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten the central bolt (1) beginning with the intake camshaft.

Insert central bolt (1) of intake camshaft with torque.

Tightening torque of 30 Nm

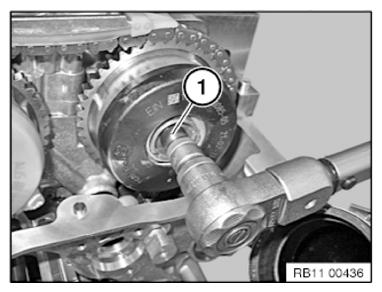

Fig 11: Tightening Intake Camshaft Central Bolt
G10042540Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of exhaust camshaft with torque.

Tightening torque of 30 Nm

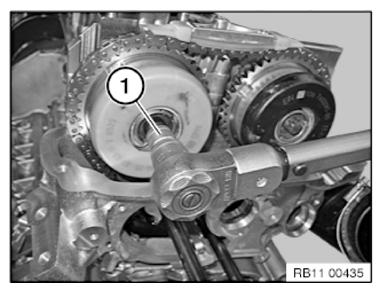

Fig 12: Tightening Exhaust Camshaft Central Bolt
G10042541Courtesy of BMW OF NORTH AMERICA, INC.

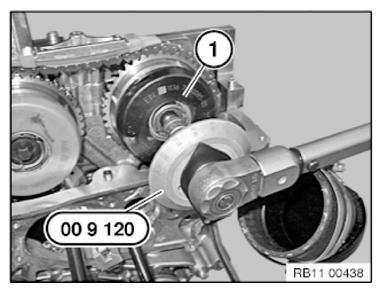

Insert central bolt (1) of intake camshaft with special tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90°.

Fig 13: Inserting Central Bolt Of Intake Camshaft Using Special Tool (00 9 120)
G10042542Courtesy of BMW OF NORTH AMERICA, INC.

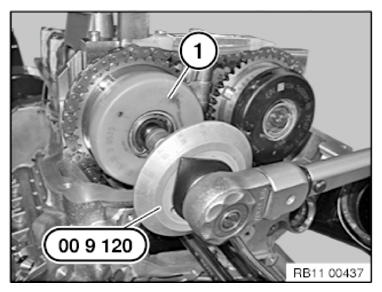

Insert central bolt (1) of exhaust camshaft with special tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90°

Checking the timing: Remove special tool 2 249 117 .

Fig 14: Inserting Central Bolt Of Exhaust Camshaft Using Special Tool (00 9 120)
G10042543Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tools 11 9 190 and 11 8 570 .

Crank engine at central bolt twice in direction of engine rotation until engine returns to 150° before cylinder no. 1 firing TDC position.

Secure vibration damper with special tools 11 8 570 and 11 9 190 in the 150° TDC firing position, cylinder 1.

Fig 15: Turning Engine To 150° Crankshaft Position Before TDC Firing Position Of Cylinder 1
G10042544Courtesy of BMW OF NORTH AMERICA, INC.

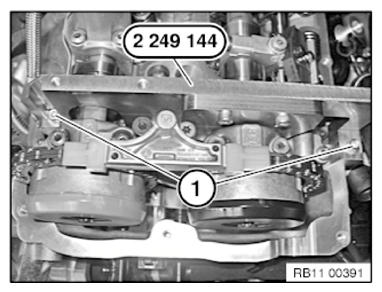

Fit special tool 2 249 144 on intake camshaft and check timing adjustment.

NOTE: Timing is correctly adjusted when special tool 2 249 144 rests without a gap on cylinder head.
Fig 16: Checking Timing Adjustment - Intake Camshaft
G10042545Courtesy of BMW OF NORTH AMERICA, INC.

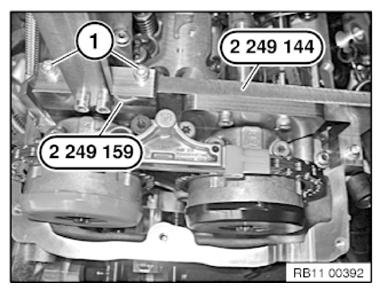

Place special tool 2 249 159 on the exhaust camshaft and check timing adjustment.

NOTE: Timing is correctly adjusted when special tool 2 249 159 rests without a gap on special tool 2 249 144 .
Fig 17: Checking Timing Adjustment - Exhaust Camshaft
G10042546Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Assemble engine.
