Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

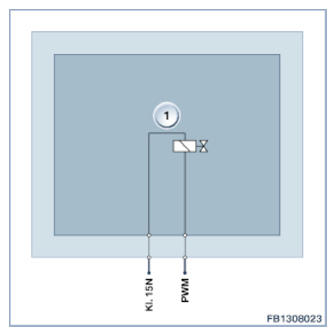

The quantity control valve is a solenoid valve. The quantity control valve is activated via a pulse-width modulated signal (PWM signal) from the engine control system. Depending on the activation signal, the ratio between return delivery in the low-pressure range and delivery stroke in the high-pressure range changes. This sets the necessary fuel mass flow for each load point. The quantity control valve is powered by the quantity control valve relay using terminal 15N. The engine control system activates the relay.
| Index | Explanation |
|---|---|
| 1 | Volume control valve |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| Terminal 15N | Voltage supply for quantity control valve |
| PWM | Pulse-width modulated signal |
