Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The tank vent shutoff valve is a solenoid valve. The tank vent shutoff valve is open when in a de-energized state.
The tank vent shutoff valve is supplied with voltage from terminal 30B.

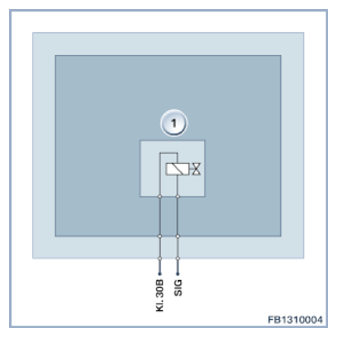

| Index | Explanation |
|---|---|
| 1 | Tank vent shutoff valve |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| Terminal 30B | Terminal 30, voltage supply |
| SIG | Activation, tank vent shutoff valve |
