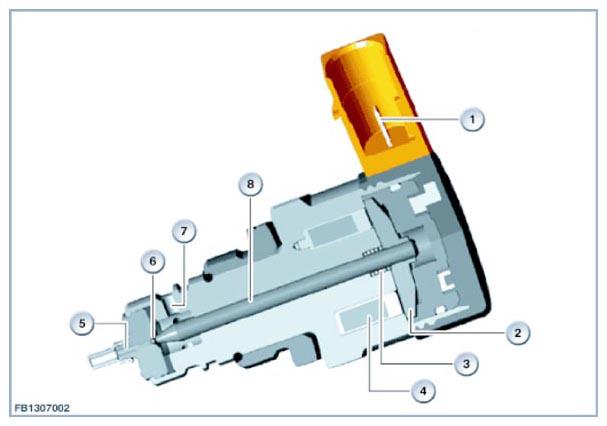

Cutaway view and specifications
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
When the rail pressure regulating valve is not supplied with current, the rail pressure regulating valve is opened. This then completely eliminates the rail pressure. Activation of the rail-pressure regulating valve means that the coil is supplied with current. This energizes the armature plate and the pressure pin presses the valve ball into the valve seat. The stronger the valve ball is pressed into the valve seat, the less fuel can flow into the return flow.
| Index | Explanation |
|---|---|
| 1 | two-pin plug connection |
| 2 | Armature plate |
| 3 | Opening spring |
| 4 | Coil for electromagnet |
| 5 | Bore hole towards the high-pressure side |
| 6 | Ball valve |
| 7 | Bore hole to return line |
| 8 | Pressure pin |
Observe the following target values for the rail pressure regulating valve:
| Size | Value |
|---|---|
| Supply voltage | 12 Volts |
| Duty cycle | 30 to 95% |
| Coil resistance at 20 °C | 3.42 to 3.78 Ω |
| Maximum output current | 1.7 A |
| Temperature range | -40 °C to 130 °C |
