Structure and inner electrical connection

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

The pressure converter is connected via a two-pin plug connection.

The pressure converter is a proportional valve. The pressure converter is supplied with voltage from terminal 15N.

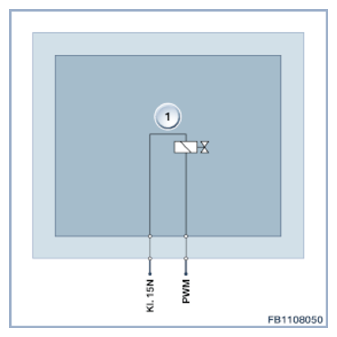

Fig 1: Pressure Converter And Wastegate Valve - Circuit Diagram
G09910125Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 Pressure converter, wastegate valve 2
PIN REFERENCE

Pin Explanation
Kl. 15N Terminal 15, voltage supply
PWM Pulse-width modulated activation of pressure converter
