Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
A protective layer is applied to prevent damage to the outer electrode due to residue in the exhaust gas. The ceramic layer, made from zirconium dioxide (ZrO2), is conductive to oxygen ions from approx. 350 °C. To ensure that the oxygen sensor reaches the operating temperature as quickly as possible, it includes an integrated heating element.

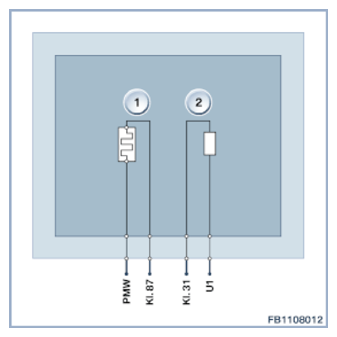

| Item | Explanation |
|---|---|
| 1 | Oxygen sensor heating |
| 2 | Measuring cell |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| PWM | Pulse-width modulated activation of the oxygen sensor heating |
| Terminal 87 | Battery voltage, terminal 15 on |
| Kl. 31 | Ground to measuring cell |
| U1 | Voltage to measuring cell |
