Fuel evaporation system overview (USA, Korea)
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

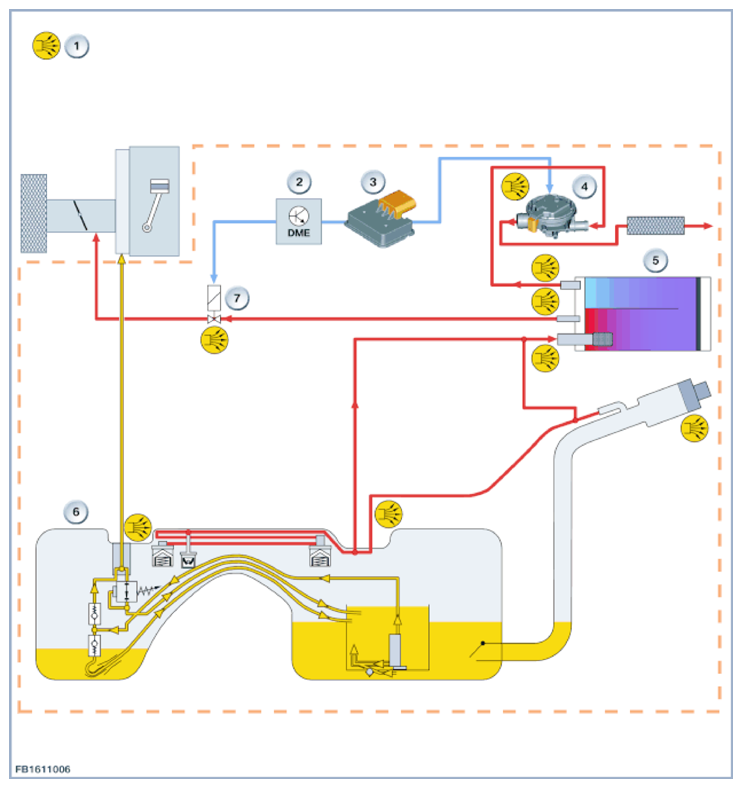

Basic version shown
| Index | Explanation |
|---|---|
| 1 | Points which must be checked first for leakage |
| 2 | Digital engine electronics (DME) |
| 3 | Natural Vacuum Leak DetectionTemperature sensor (used in basic versions only) |
| 4 | Natural Vacuum Leak DetectionPressure switch (basic version or integrated version) |
| 5 | Carbon canister |
| 6 | Fuel tank |
| 7 | Tank vent valve |
