Signal shape and setpoint values
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The hot film air mass meter has a frequency-coded output signal. The sensor is designed in such a way that return flows (dynamic pulsation in the intake pipe) can be detected and processed both with regard to their amount and direction of flow. The signal quality for the air mass is temperature-dependent. High accuracy is required to precisely determine the air mass. This is why the air mass signal received in the engine control unit must be corrected with the signal of the intake air temperature sensor.

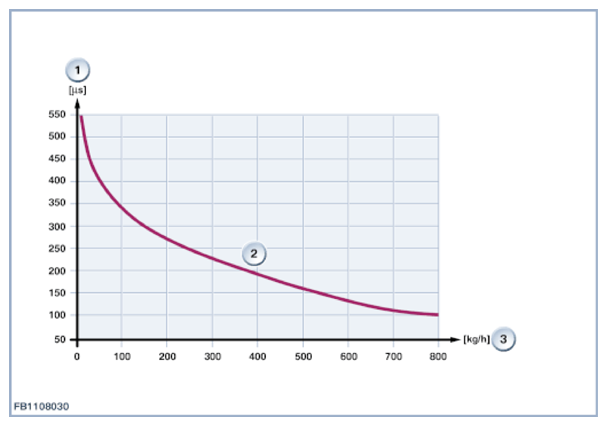

| Item | Explanation |
|---|---|
| 1 | Period |
| 2 | Characteristic curve for hot film air mass meter |
| 3 | Air mass |
Observe the following setpoint values for the hot film air mass meter:
| Variable | Value |
|---|---|
| Voltage range | 7.5 to 17 volts |
| Maximum power consumption | Less than 0, 1 A |
| Measuring range of hot film air mass meter | -60 bis 850 kg/h |
| Measuring range of intake air temperature | -40 °C to 110 °C |
| Frequency range | 1 to 15 kHz |
| Temperature range | -40 °C to 120 °C |
