Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

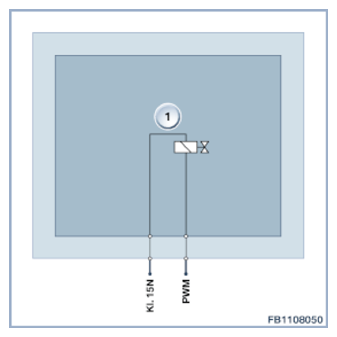

The fuel-quantity control valve is connected with a 2-pin plug.
The power supply for the fuel-quantity control valve originates at Terminal 15.
| Index | Explanation |
|---|---|
| 1 | Fuel quantity control valve |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| Kl. 15N | Terminal 15, voltage supply |
| PWM | Pulse-width-modulated control-activation of the fuel-quantity control valve |
