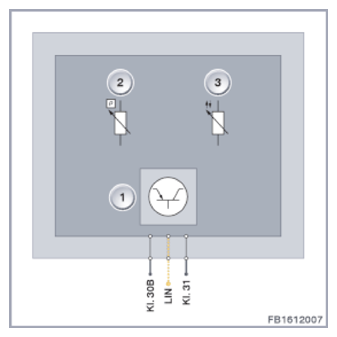

Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The fuel tank pressure sensor is connected to the engine control via local interconnect network bus. The fuel tank pressure sensor is supplied with voltage by terminal 30B.
The electrical contact is established via contact pins.
| Item | Explanation |
|---|---|
| 1 | Evaluation electronics |
| 2 | Pressure sensor |
| 3 | Temperature sensor |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| Terminal 30B | Terminal 30B, voltage supply |
| LIN | LIN bus |
| Kl. 31 | Terminal 31, ground |
