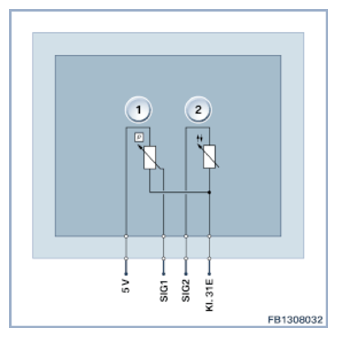

Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The fuel pressure and temperature sensor is connected by a 4-pin plug connection.
The fuel pressure sensor receives its ground and a supply voltage of 5 volts from the DDE control unit. The resistance of the fuel temperature sensor is part of a voltage divider circuit that is supplied with 5 volts by the DDE control unit.
| Item | Explanation |
|---|---|
| 1 | Fuel pressure sensor |
| 2 | Fuel temperature sensor |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| 5 V | 5 Volts, supply voltage |
| SIG1 | Fuel pressure sensor signal |
| SIG2 | Fuel pressure sensor signal |
| Terminal 31E | Terminal 31, electronics earth (ground) both sensors |
