Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

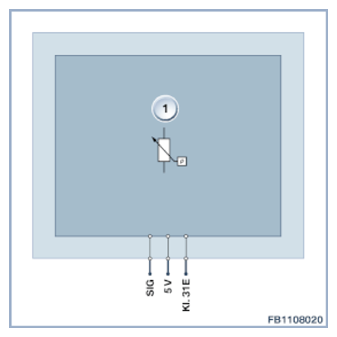

The exhaust backpressure sensor is connected with a 3-pin plug connection.
The sensor is supplied with 5 Volts by the engine control.
| Index | Explanation |
|---|---|
| 1 | Exhaust backpressure sensor |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| SIG | Exhaust back pressure signal |
| 5 V | 5 Volts, supply voltage |
| Kl. 31E | Terminal 31, electronics earth (ground) |
