Structure and inner electrical connection

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

A diaphragm box is fixed on the exhaust tailpipes of the rear silencer. The diaphragm box is linked to the exhaust flap via an adjustment mechanism. From the electric changeover valve the vacuum hose leads to the diaphragm boxes.

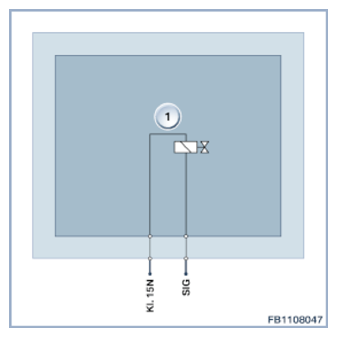

Fig 1: Electric Changeover Valve Exhaust Flap - Circuit Diagram
G09908345Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Electric changeover valve exhaust flap
PIN REFERENCE

Pin Explanation
Terminal 15N Terminal 15, voltage supply
SIG Activation of electric changeover valve
