Activation and setpoint values
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
Only the two conditions, open and closed, occur while driving. Control of the exhaust flap is governed by:
- Load
- Gear engaged
- Rotational speed

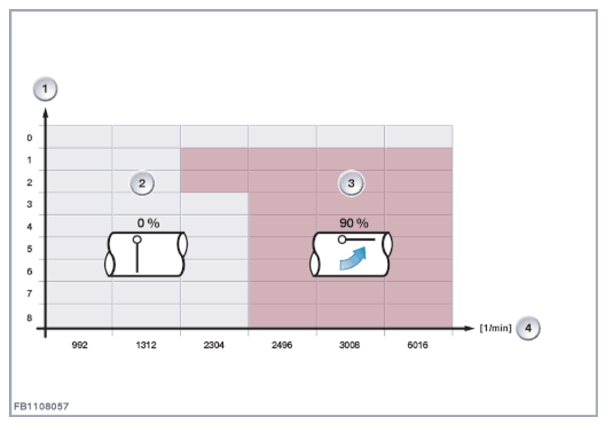

Example:
| Item | Explanation |
|---|---|
| 1 | Gear engaged |
| 2 | Exhaust flap, closed |
| 3 | Exhaust flap, open |
| 4 | Data point for engine speed |
Observe the following setpoint values for the electric changeover valve of the exhaust flap:
| Variable | Value |
|---|---|
| Voltage range | 9 to 16 volts |
| Power consumption | 1 A |
| Temperature range | -30 °C to 140 °C |
