Structure and inner electrical connection

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

The changeover valve is a solenoid valve.

The changeover valve is connected via a two-pin plug connection.

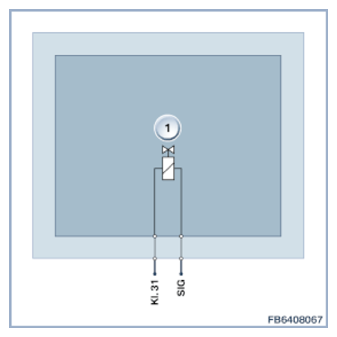

Fig 1: Refrigerant Shutoff Valve - Circuit Diagram
G09908194Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Refrigerant shutoff valve, rear
PIN REFERENCE

Pin Explanation
Kl. 31 Ground connection via engine control
SIG Activation of changeover valve
