Structure and inner electrical connection

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

The blow-off valve is connected via a two-pin plug connection.

The blow-off valve is a solenoid valve. The blow-off valve is supplied with voltage via terminal 15N. Activation by the engine control occurs on the earth side.

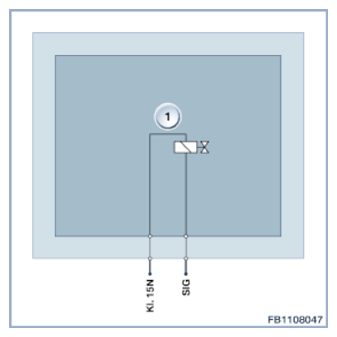

Fig 1: Diverter Valve - Circuit Diagram
G09908138Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 Diverter valve
PIN REFERENCE

Pin Explanation
Kl. 15N Terminal 15, voltage supply
SIG Activation of the blow-off valve
