32 41 100 Removing and installing/replacing belt pulley on vane pump for power steering

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Carry out preliminary work as described in the document "Replacing drive belt", refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (N62) .

If necessary, remove front assembly underside protection.

Slacken screws (1)

Slacken drive belt and remove from belt pulley (2).

Remove screws (1).

Remove belt pulley (2) from power steering pump and remove towards bottom.

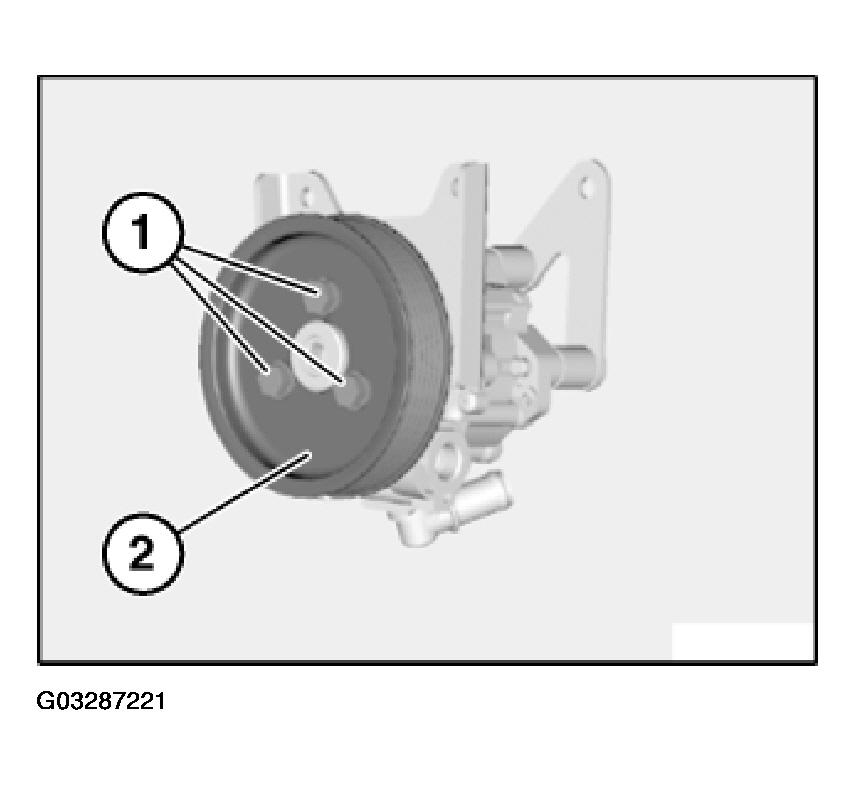

Fig 1: Removing Belt Pulley From Power Steering Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lettering on belt pulley (2) points forwards.
