32 41 033 Removing and installing/replacing power steering pump for power steering gear with active front steering (N62)
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off pipe connections with plugs.
After installation:
- Fill and bleed hydraulic system, refer to 32 13 006 BLEEDING POWER STEERING UNIT .
- Check pipe connections for leaks
Necessary preliminary tasks:
- Draw off and dispose off hydraulic fluid from fluid reservoir
Observe country-specific waste-disposal regulations
- Remove power steering pump belt pulley
- If necessary, remove deflection pulley on alternator
- Remove front assembly underside protection
- Disconnect suction line from power steering pump
- Detach pressure line from power steering pump

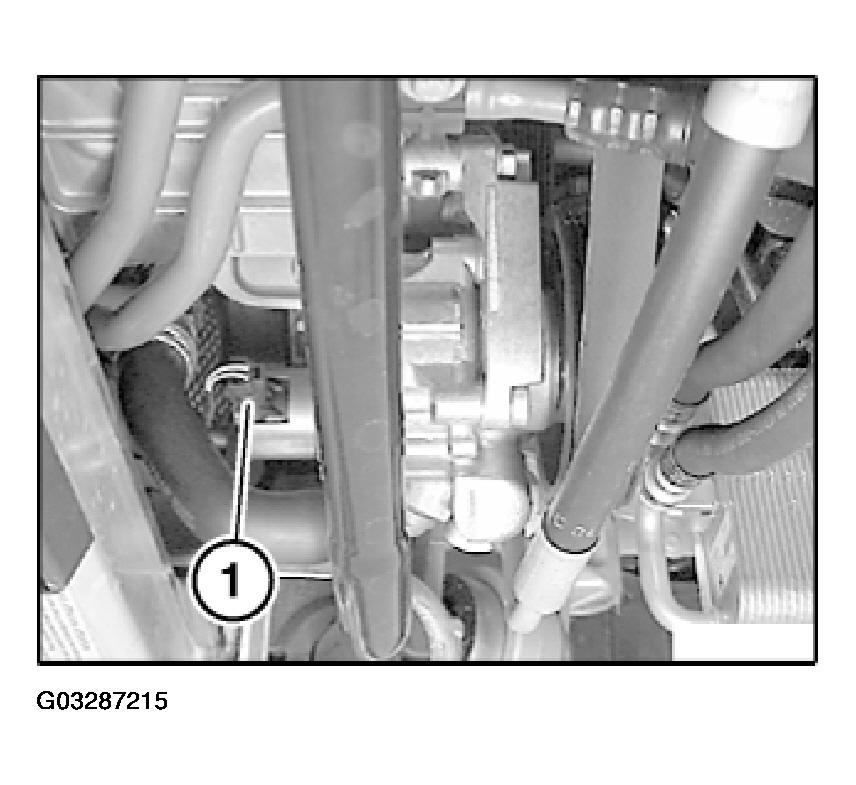

Disconnect connector (1).

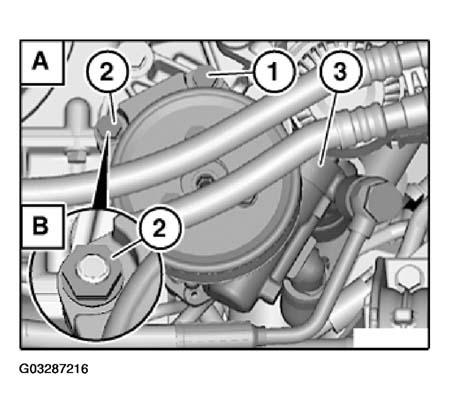

Variant (A) - build date up to 05/2004:
Release screws (1...2).
Remove power steering pump (3) towards front.
Variant (B) - build date from 05/2004:
Release bolt (1) and nut (2).
Remove power steering pump (3) towards front.
