18 10 031 Replacing rear muffler (left or right) (N62)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 210
31 2 220

WARNING: Scalding hazard! Only perform these tasks on an engine that has cooled down.

Support rear muffler with special tool 31 2 220.

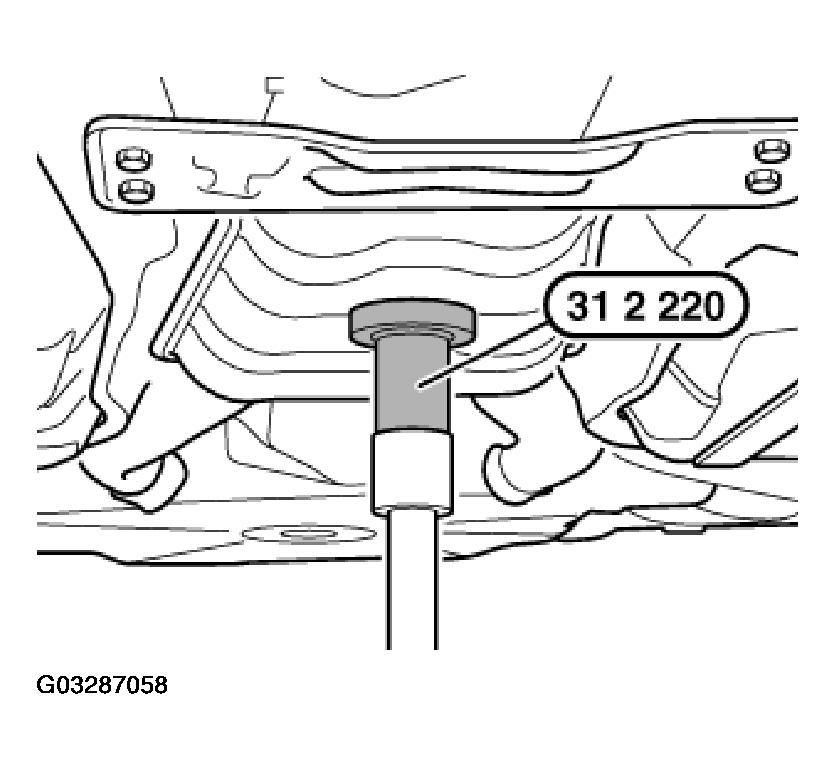

Fig 1: Supporting Rear Muffler With Special Tool 31 2 220 (Left Or Right - N62)

G03287058

Courtesy of BMW OF NORTH AMERICA, INC.

While installed, mark cutting line with aid of replacement muffler on faulty rear muffler.

Cut exhaust pipes with special tool 00 2 210 at marked points and deburr.

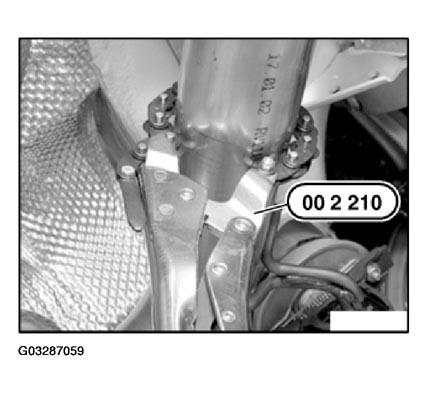

Fig 2: Cutting Exhaust Pipes With Special Tool 00 2 210 At Marked Points (Left Or Right - N62)

G03287059

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts.

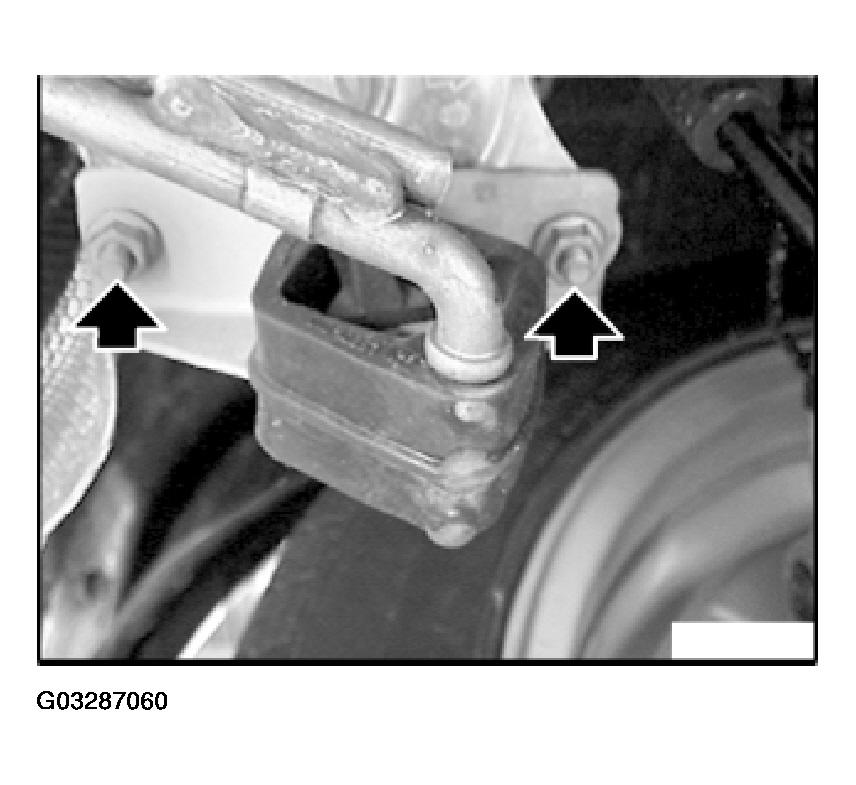

Fig 3: Releasing Nuts (Left Or Right - N62)

G03287060

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts and remove rear muffler.

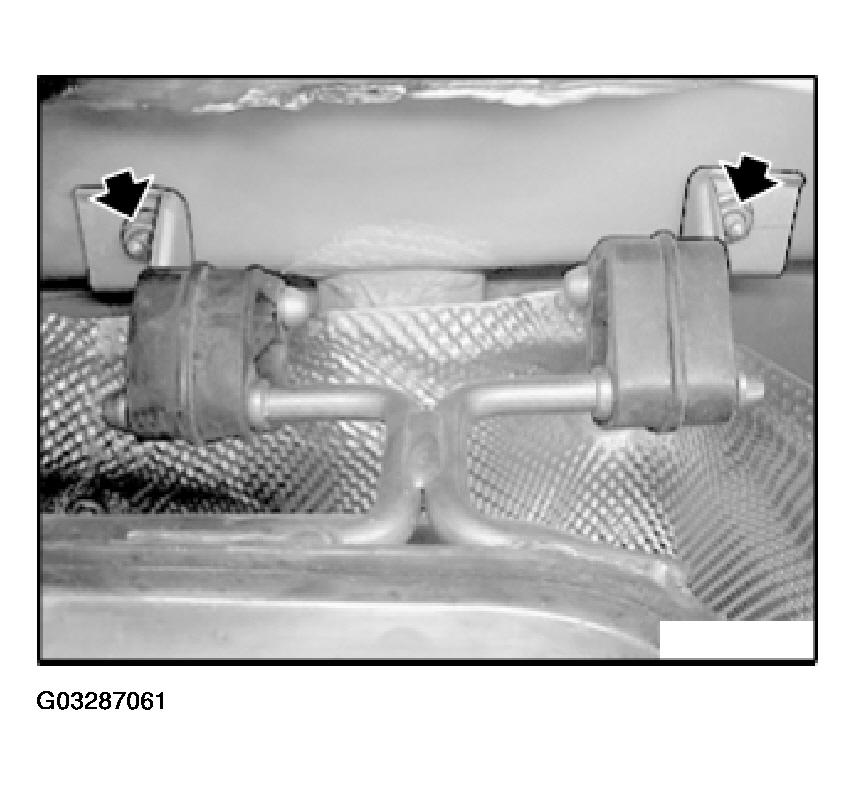

Fig 4: Releasing Nuts And Removing Rear Muffler (Left Or Right - N62)

G03287061

Courtesy of BMW OF NORTH AMERICA, INC.

Connect final muffler to center muffler.

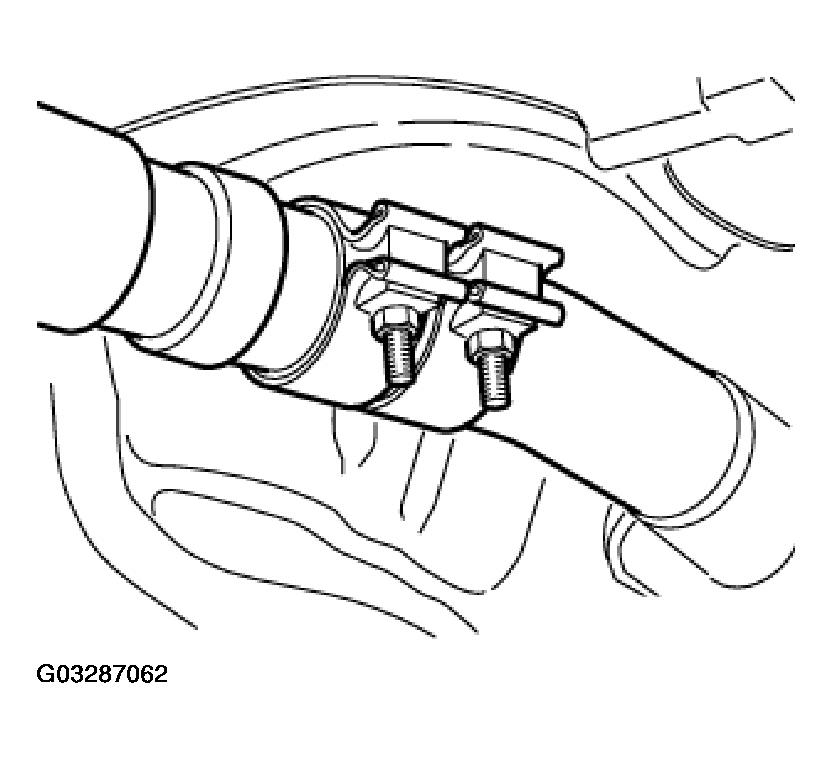

Fig 5: Connecting Final Muffler To Center Muffler (Left Or Right - N62)

G03287062

Courtesy of BMW OF NORTH AMERICA, INC.

Align clamp and tighten down.
