Arrangement of Flushing Device For Transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z, GA6HP26Z

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

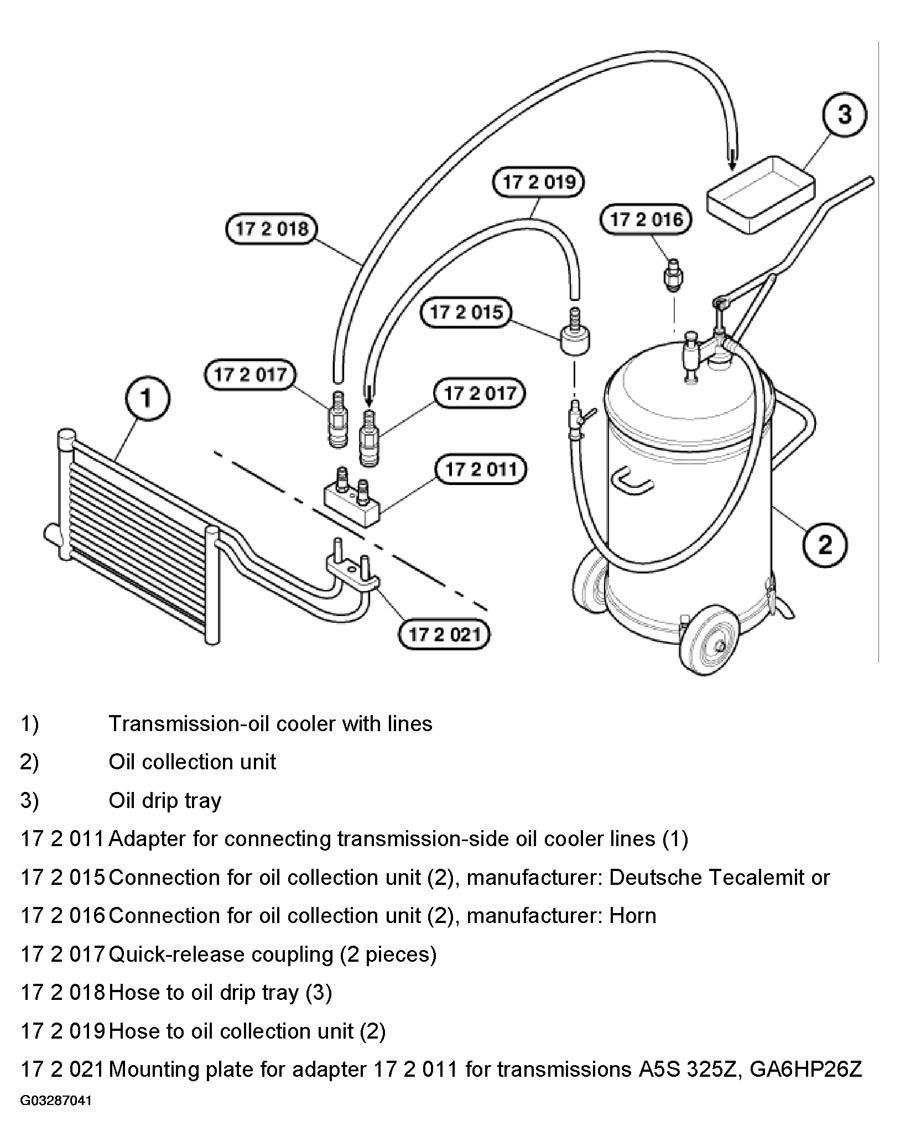

Fig 1: Identifying Transmission Flushing Device
G03287041Courtesy of BMW OF NORTH AMERICA, INC.
