Arrangement Of Flushing Device For Transmission A4S 310R

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

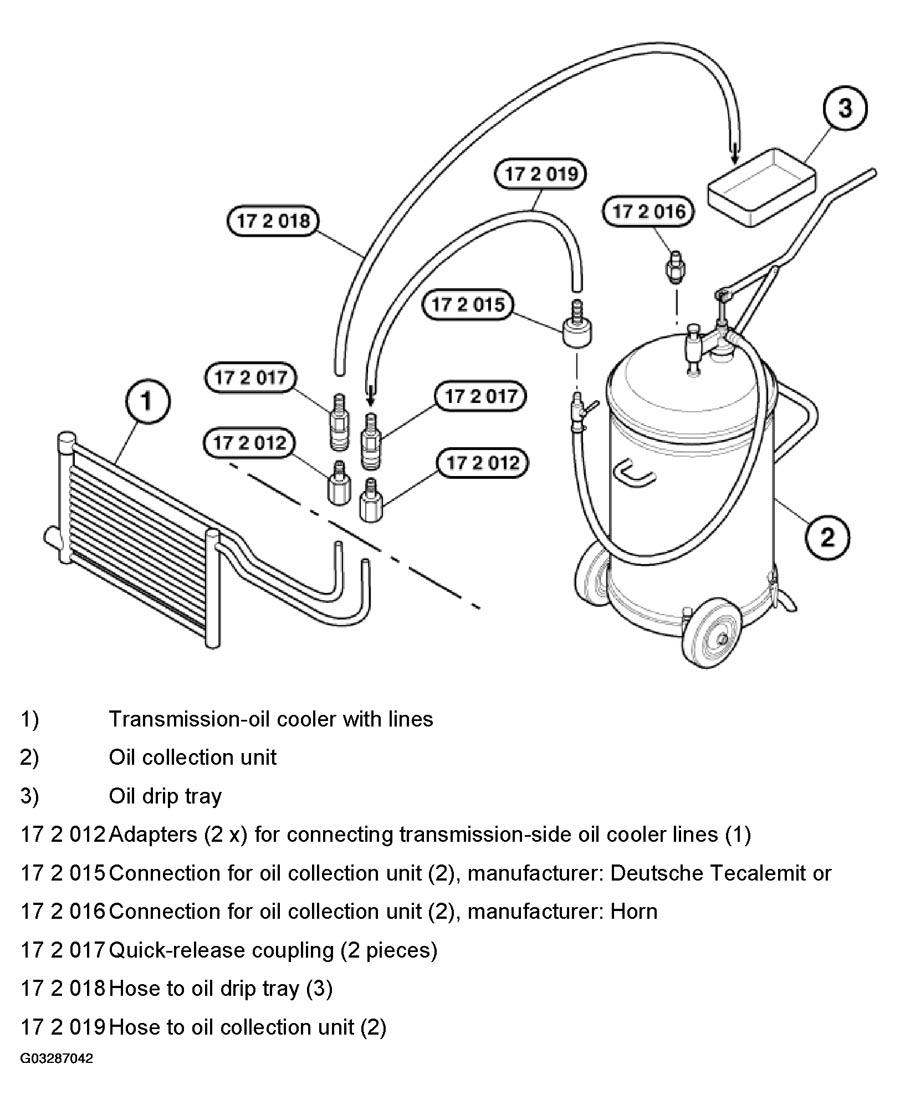

Fig 1: Identifying Transmission Flushing Device (A4S 310R)
G03287042Courtesy of BMW OF NORTH AMERICA, INC.
