17 11 035 Removing and installing/replacing fan cowl with electric fan (N62)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Switch off ignition
Remove radiator cover

Unlock plug (1) on AUC sensor and disconnect.

Unlock plug (2) and remove.

NOTE: Modify AUC sensor when replacing fan cowl.

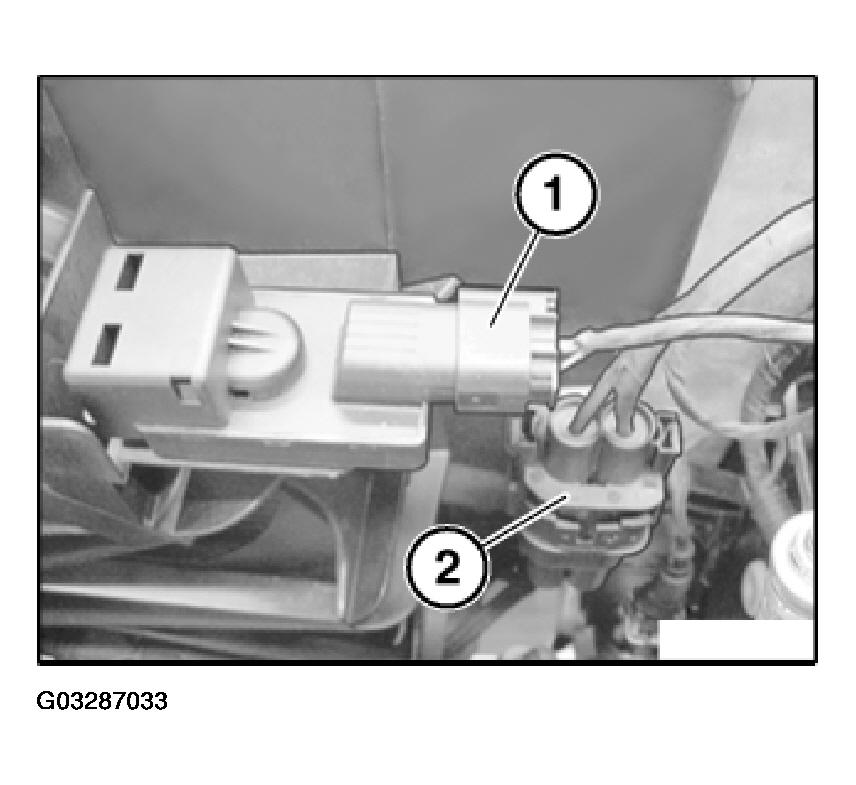

Fig 1: Disconnecting And Removing AUC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Raise fan cowl (1) approx. 3 cm.

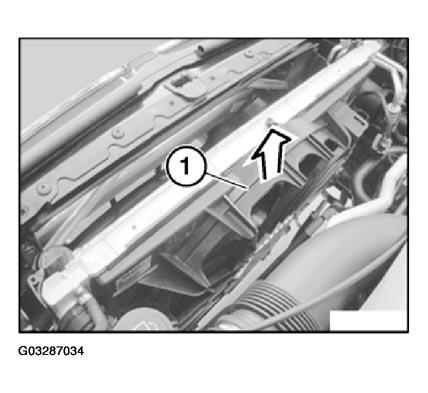

Fig 2: Raising Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, this work step is shown on the fan cowl after it has been removed.

Fold in left retaining tab (1) in direction of arrow.

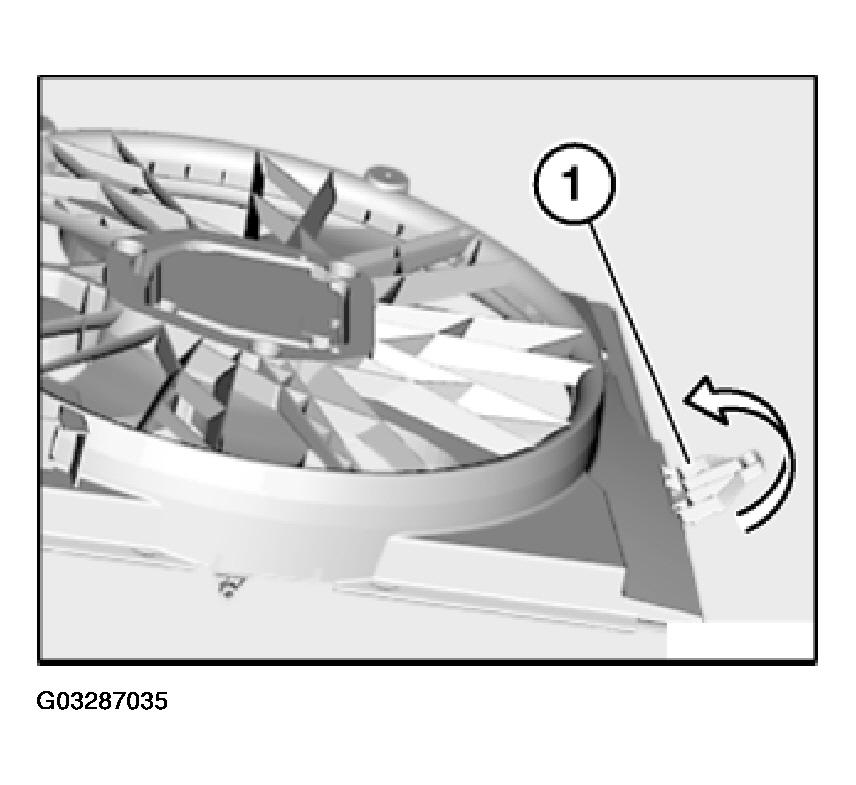

Fig 3: Folding In Left Retaining Tab

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan cowl (1) in direction of arrow.

Fig 4: Removing Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Check stored fault messages.

Clear DME fault memory.
