13 54 250 Replacing air intake hose (between airmass flow sensor and throttle valve assembly) (N62)
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Switch off ignition
- Remove acoustic cover

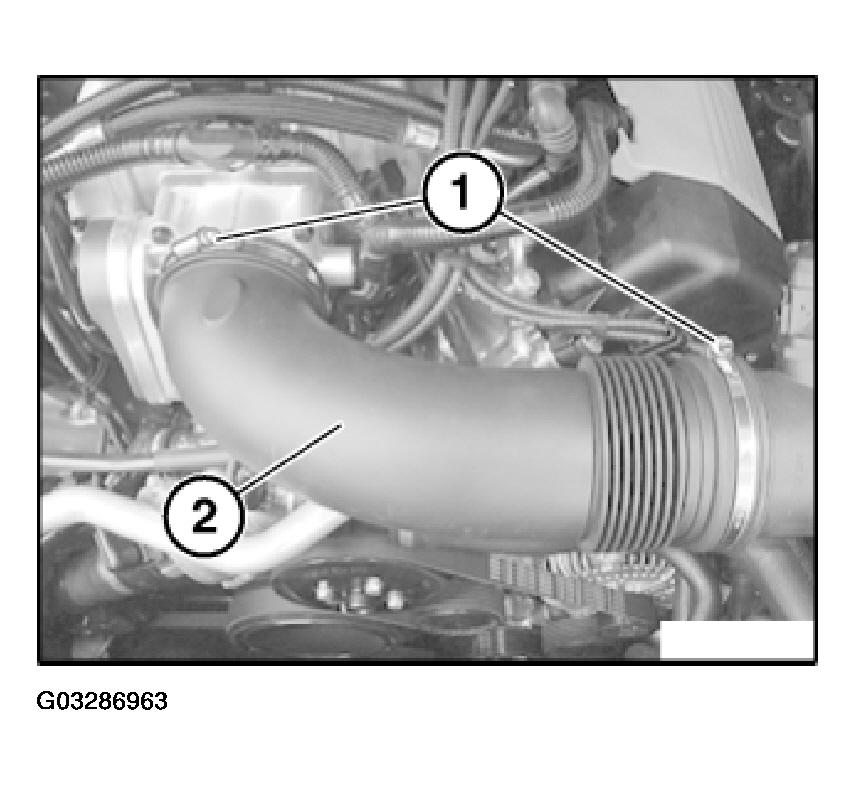

Loosen hose clamps (1).
Detach air-mass flow sensor (2) from throttle valve assembly.
Detach air intake hose (2) from air-mass flow sensor.
Installation:
Check sealing rings for damage, replace if necessary.
