13 54 030 Removing and installing/sealing throttle assembly (N62)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition
Remove air intake hose

Unlock plug (1) and remove.

Unfasten screws.

Remove throttle assembly (2).

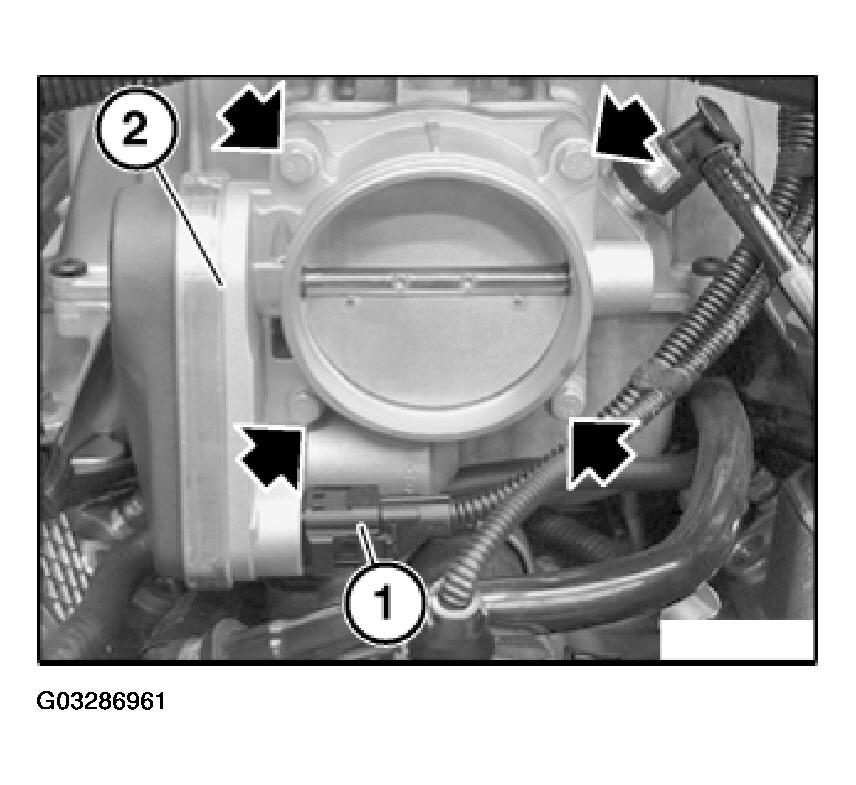

Fig 1: Removing Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring (1) of throttle assembly (2).

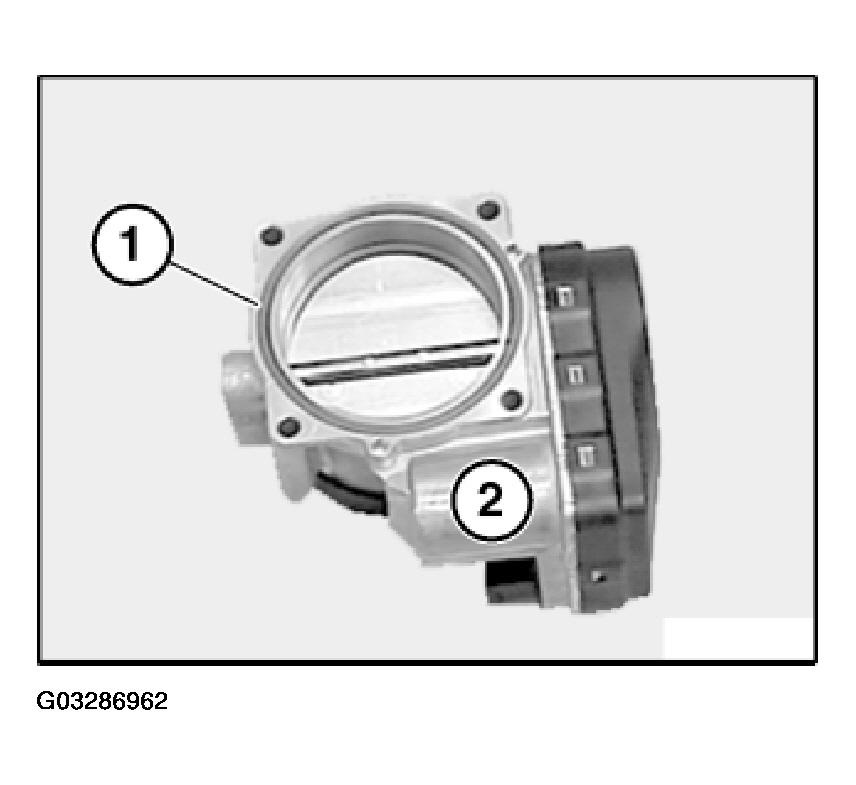

Fig 2: Replacing Throttle Assembly Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check stored fault messages.

Now clear the fault memory.
