11 37 022 Removing and installing/replacing servomotor for left eccentric shaft (N62)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder bank 5 to 8)

Remove acoustic cover.

Remove ignition coil cover.

Unlock plug (1) on servomotor (2) and disconnect.

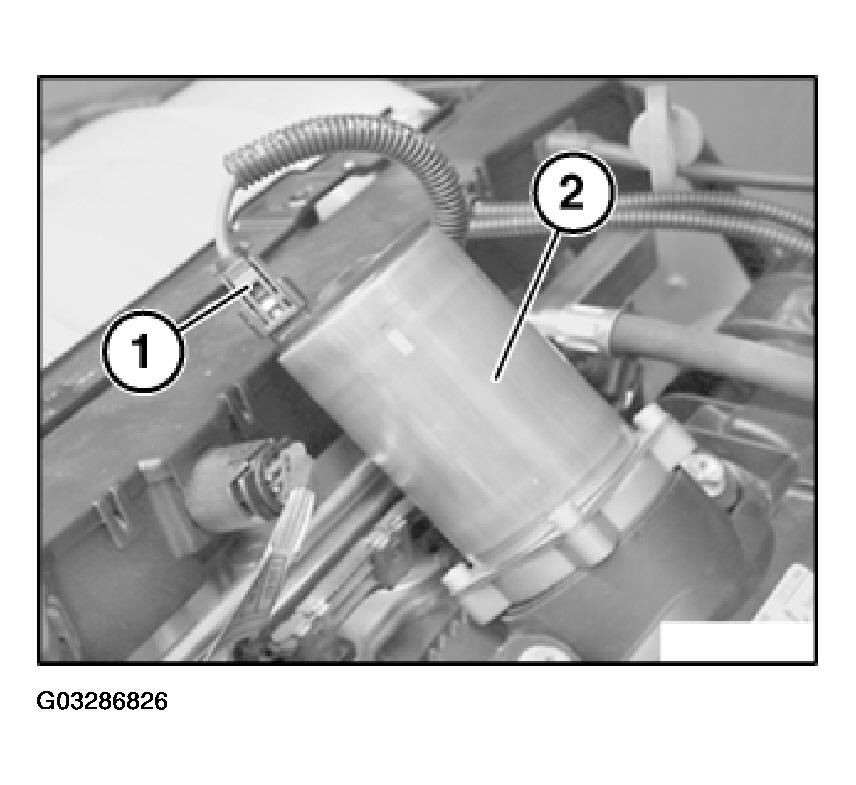

Fig 1: Unlocking And Disconnecting Plug On Servomotor

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Rotate servomotor (2) until no longer engaged in spline teeth of eccentric shaft.

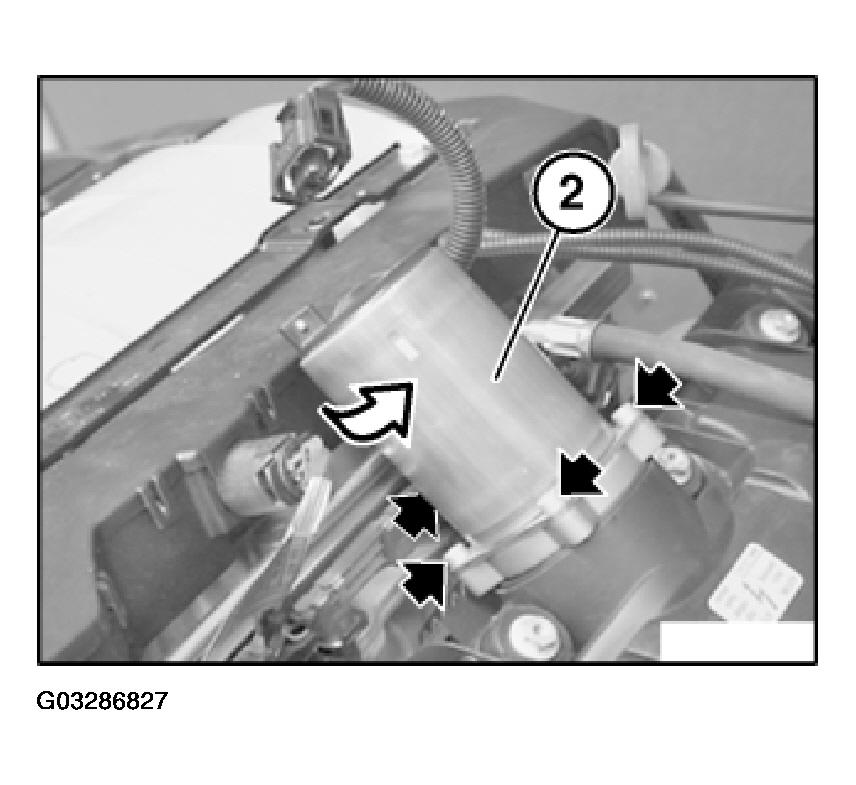

Fig 2: Rotating Servomotor Until No Longer Engaged In Spline Teeth Of Eccentric Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring on spacer.

Install servomotor (1) and screw in up to spacer.

Rotate servomotor (1) into correct installation position.

Install and tighten down screws.

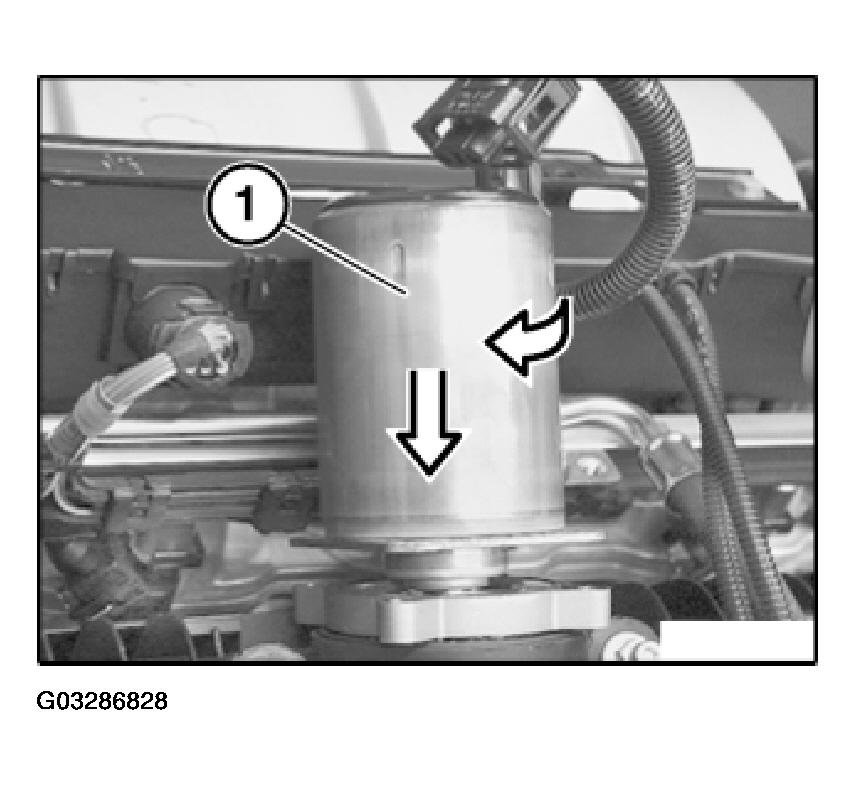

Fig 3: Replacing Sealing Ring On Spacer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Read out fault memory of control unit of Digital Motor Electronics (DME).

Check stored fault messages.

Rectify faults.

Now clear the fault memory.
