11 61 050 Removing and installing intake air manifold (N62)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove acoustic cover.

Remove design cover.

Remove center of bulkhead.

Remove intake hose.

Remove injection pipe, refer to 13 53 240 REPLACING COMPLETE INJECTION PIPE (N62) .

On rear side of manifold, unlock and disconnect plug on differential pressure sensor and on servomotor.

Fig 1: Detaching Vent Hose

Courtesy of BMW OF NORTH AMERICA, INC.

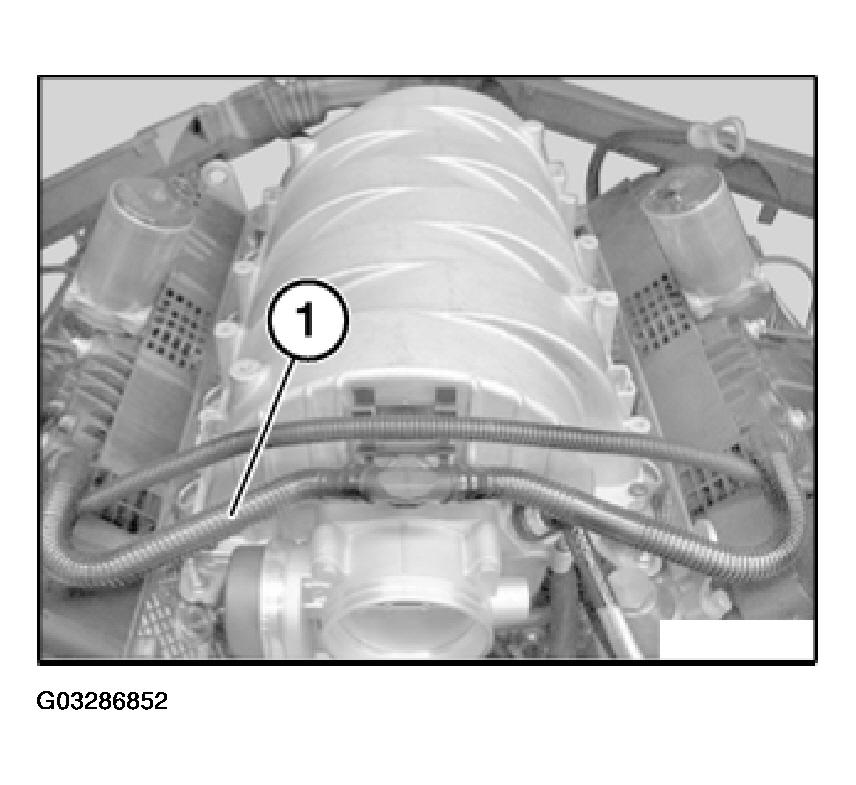

Unlock and detach vent hose (1).

Remove cable from holder.

Unfasten screws.

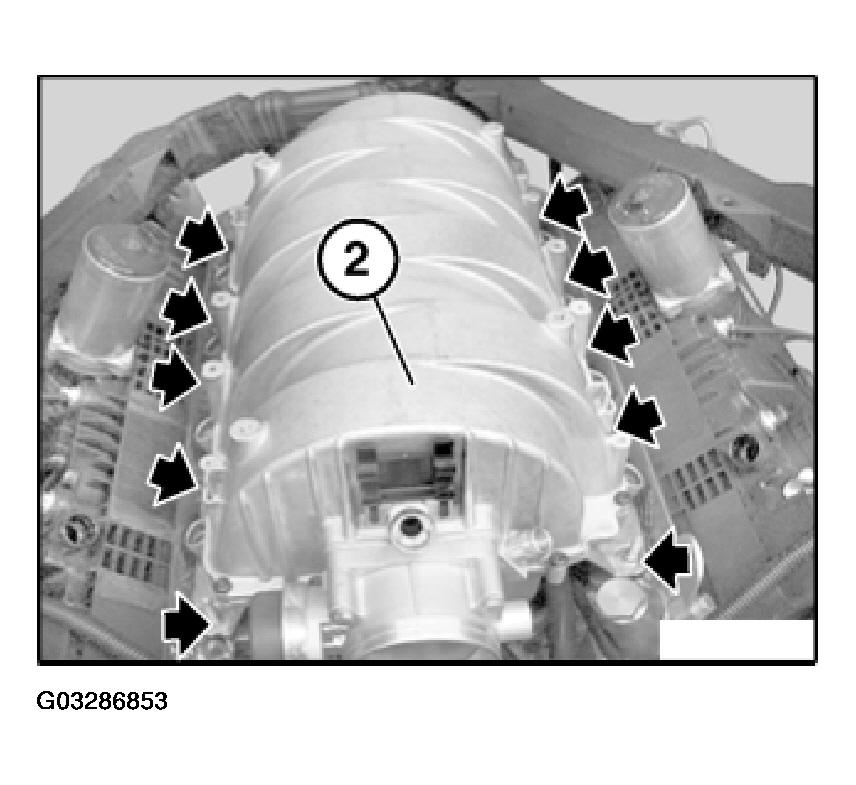

Remove intake air manifold (2) upwards with aid of a second person. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (N62) .

Fig 2: Removing Intake Air Manifold Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

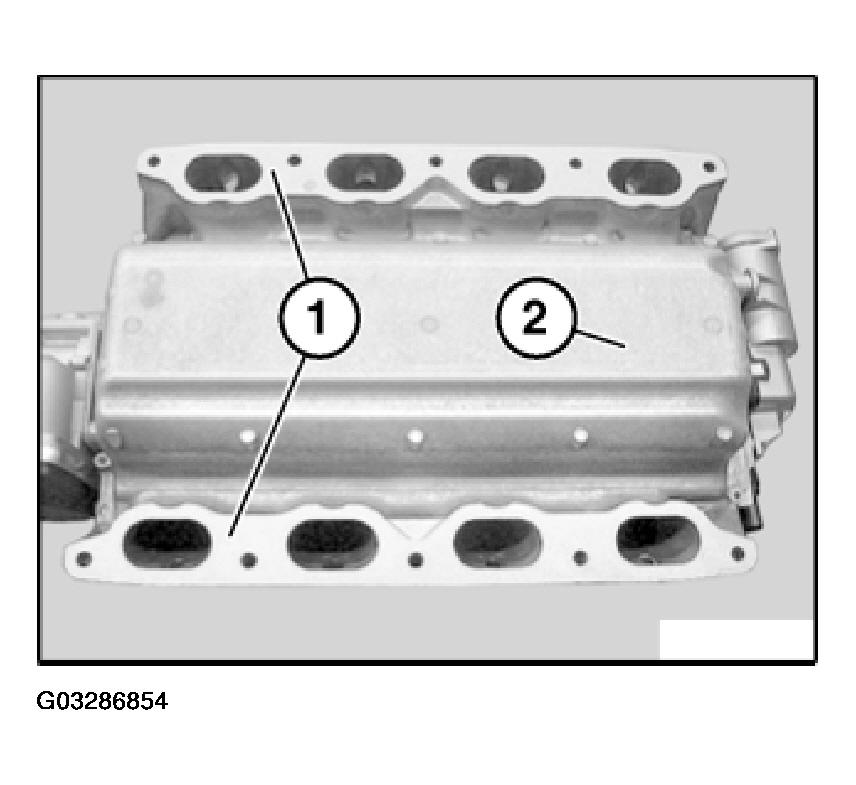

Clean sealing faces (1) on intake air manifold (2).

Fig 3: Cleaning Sealing Faces On Intake Air Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

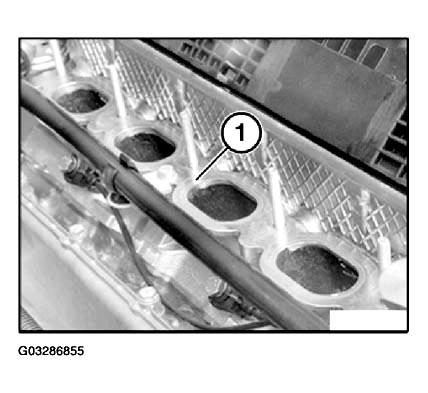

Clean sealing face (1) on left and right.

Fig 4: Cleaning Sealing Face On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Replace gasket on left and right.

Assemble engine.

Check air intake system for leaks.
