11 31 038 Removing And Installing/Replacing Right Exhaust Camshaft (N62): Removal

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Removal of exhaust camshaft is described separately from installation.

Remove servomotor for right eccentric shaft. Refer to 11 37 024 REMOVING AND INSTALLING/REPLACING SERVOMOTOR FOR RIGHT ECCENTRIC SHAFT (N62) .

Remove ignition coils on cylinder bank 1 to 4.

Remove right cylinder head cover. Refer to 11 12 006 REMOVING AND INSTALLING / SEALING RIGHT CYLINDER HEAD COVER (N62 / N62TU) .

Remove spark plugs on cylinder bank 1 to 4.

Remove inlet and exhaust adjustment unit on right side. Refer to 11 36 048 REMOVING AND INSTALLING/REPLACING INLET AND EXHAUST ADJUSTMENT UNITS ON RIGHT SIDE (N62) .

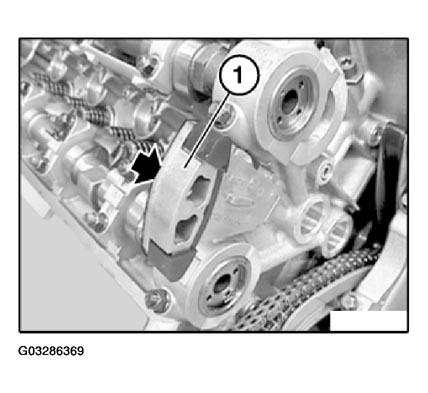

Remove slide rail (1).

Fig 1: Removing Slide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate exhaust camshaft at hexagon head against direction of rotation until exhaust cam on cylinder (2) faces upwards.

Fig 2: Aligning Exhaust Cam On Cylinder Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not mix up the camshaft bearing covers of cylinders 1 to 4 and 5 to 8.

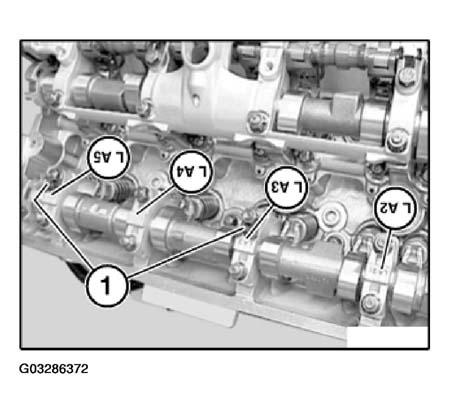

NOTE: Bearing caps of exhaust camshaft are marked on cylinder bank 1 to 4 with L A1 to L A5 from inlet side.

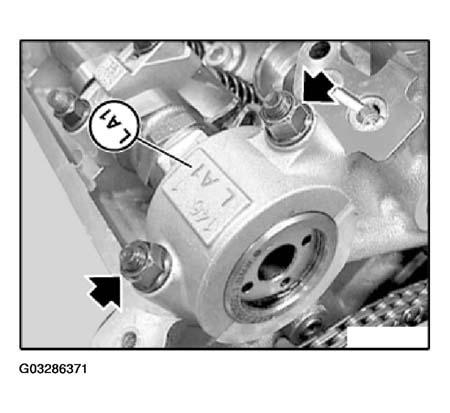

Release nuts and remove bearing cap L A1.

Fig 3: Identifying Bearing Cap L A1 And Retaining Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

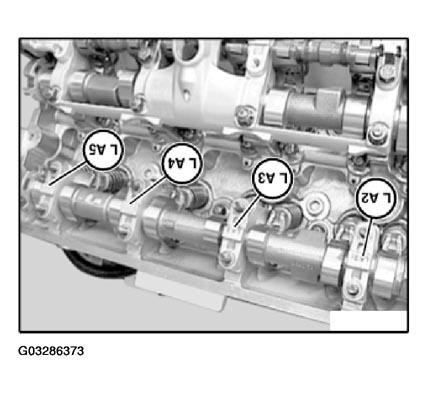

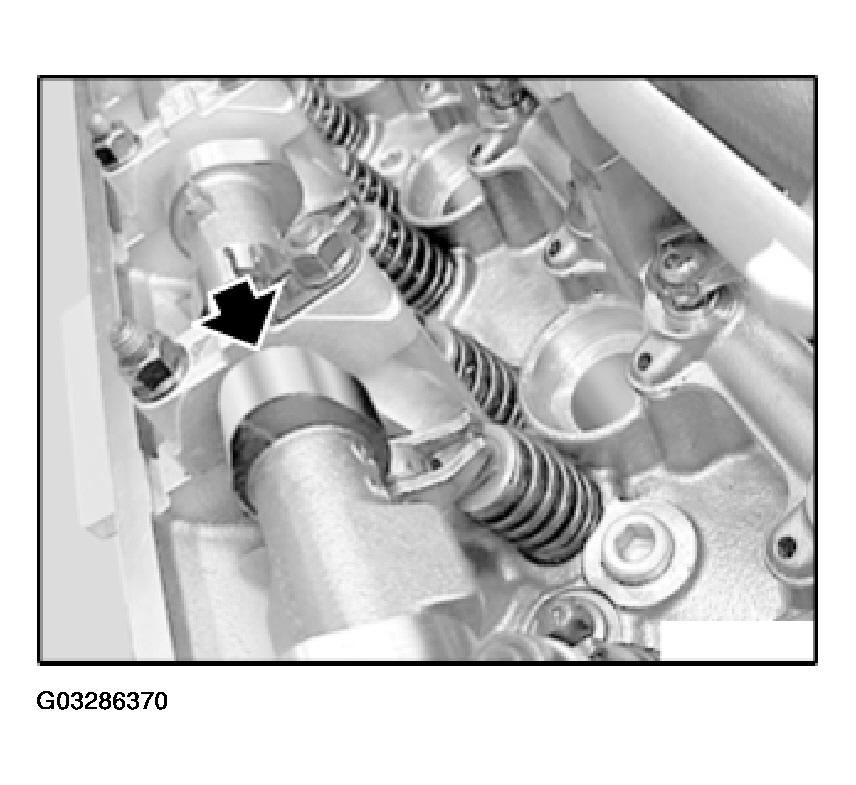

NOTE: Retaining clips (1) for oil line are fitted on bearing caps 3 and 5.

Release nuts on bearing caps L A2 to L A5.

Fig 4: Locating Retaining Clips For Oil Line

Courtesy of BMW OF NORTH AMERICA, INC.

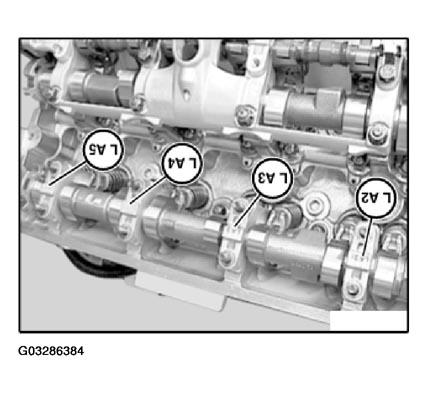

Remove bearing caps L A2 to L A5.

Fig 5: Removing Bearing Caps L A2 To L A5

Courtesy of BMW OF NORTH AMERICA, INC.

Remove exhaust camshaft (1).

Fig 6: Removing Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

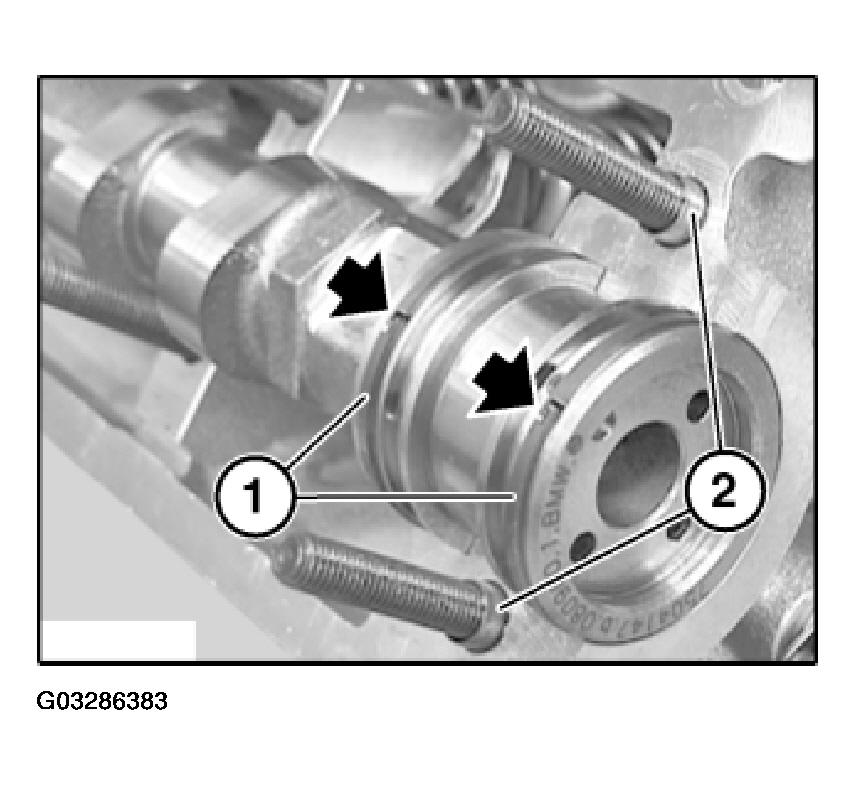

If necessary, replace plain compression rings (1).

CAUTION: Plain compression rings (1) can easily break.

Plain compression rings (1) are engaged at joint.

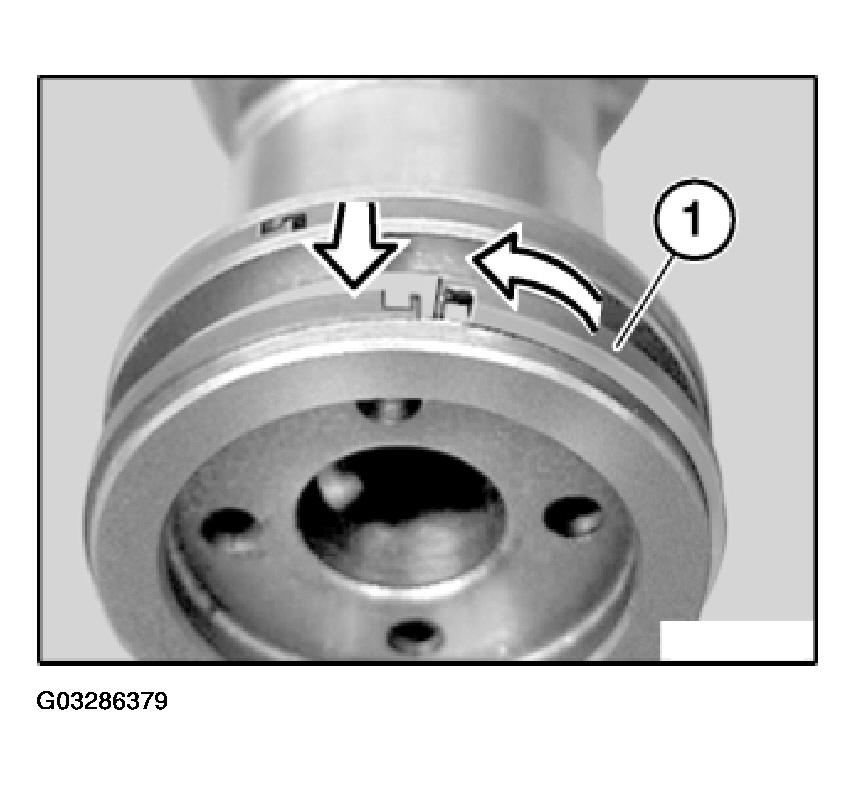

Press compression ring (1) on one side into groove, pull up on other side and remove catch.

Carefully pull compression ring (1) apart and remove towards front.

Fig 7: Identifying Plain Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

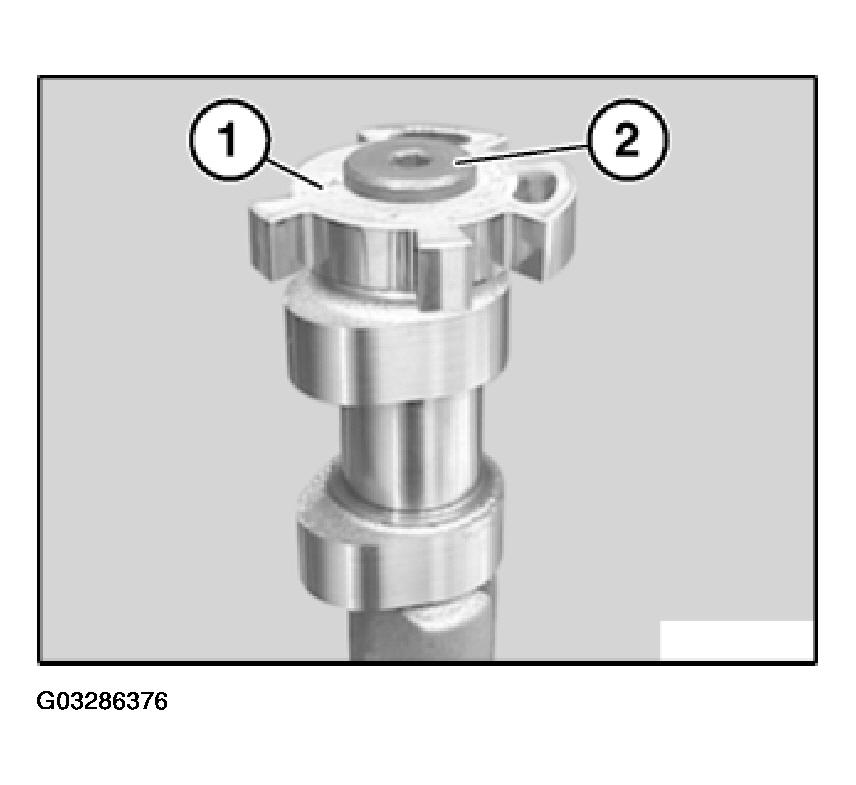

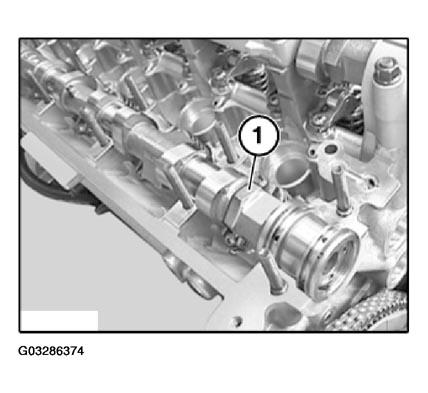

If necessary, replace sensor gear (1).

Release screw (2) and remove sensor gear (1).

Fig 8: Removing Sensor Gear And Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Installation of exhaust camshaft is described separately from removal.

Clean all bearings and cams of exhaust camshaft and lubricate with engine oil.

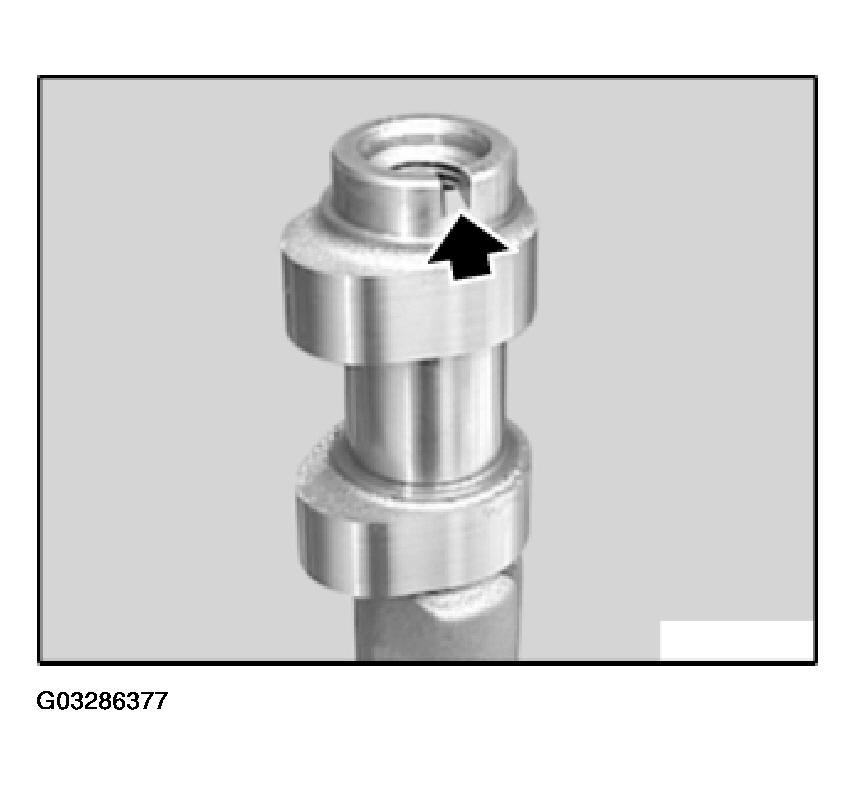

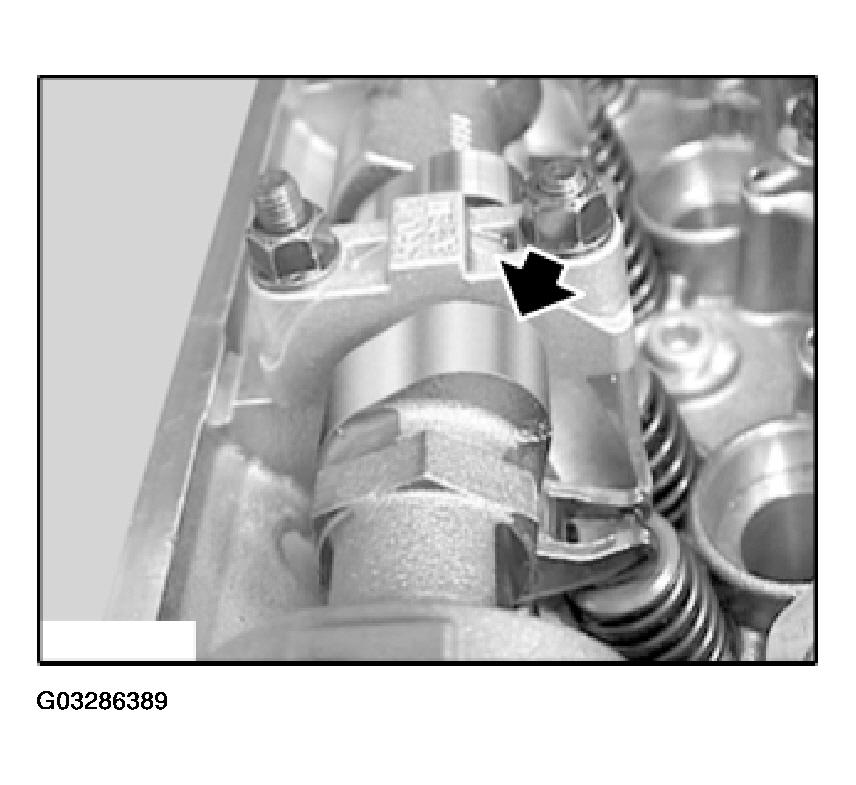

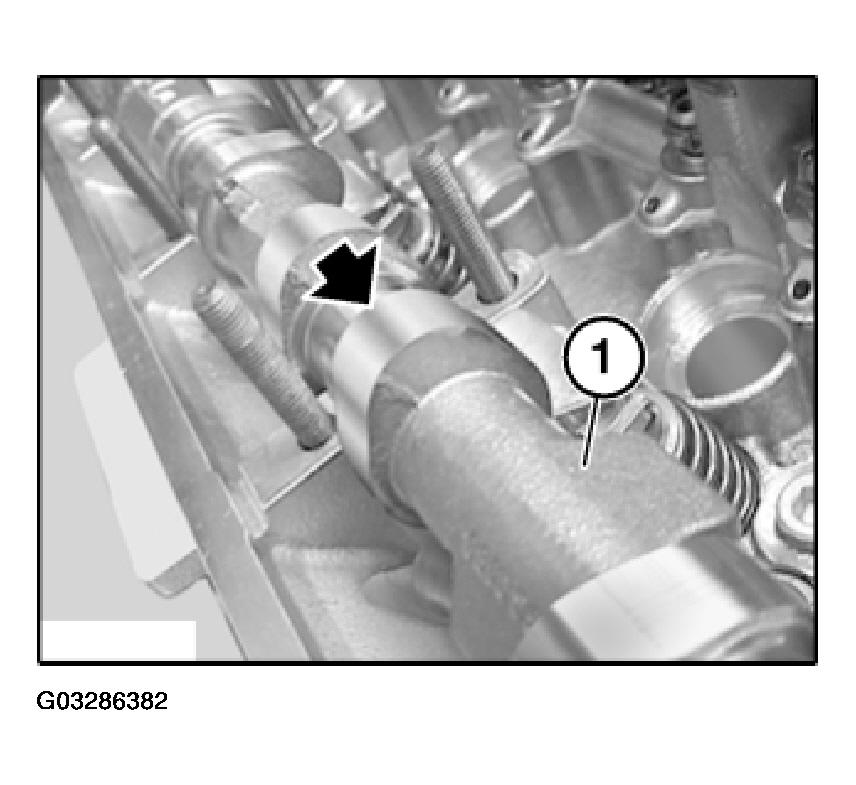

NOTE: Camshaft has a groove and sensor gear has a lug for fastening purposes.

Fig 9: Locating Camshaft Groove

Courtesy of BMW OF NORTH AMERICA, INC.

Fit sensor gear (1) and align to groove in camshaft.

Insert screw (2) and tighten down.

Tightening torque of screw (2), refer to 11 31 14AZ in ENGINE - TIGHTENING TORQUES .

Fig 10: Aligning Sensor Gear To Groove In Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installing compression rings (1):

CAUTION: Plain compression rings (1) can easily break.

Carefully pull compression ring (1) apart and install from front.

Press compression ring (1) on one side into groove, install catch on other side.

Fig 11: Installing Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

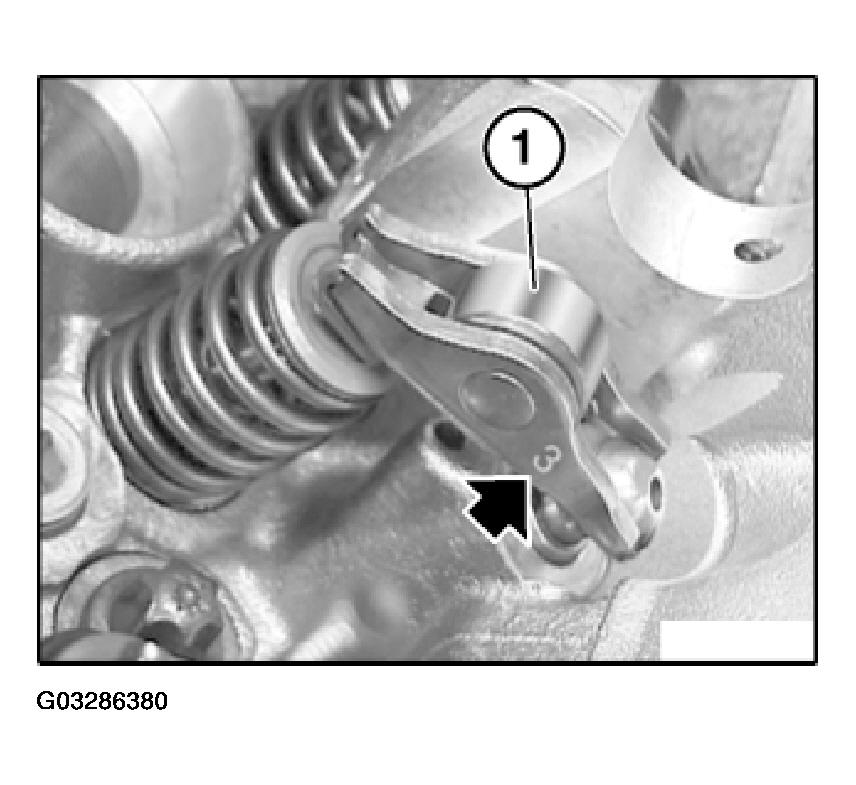

NOTE: Rocker arms (1) of exhaust camshaft are of same design as rocker arms of inlet camshaft.

The classification 3 shown in the illustration has no affect on the function on the exhaust camshaft.

Fig 12: Identifying Exhaust Rocker Arm Classification 3

Courtesy of BMW OF NORTH AMERICA, INC.

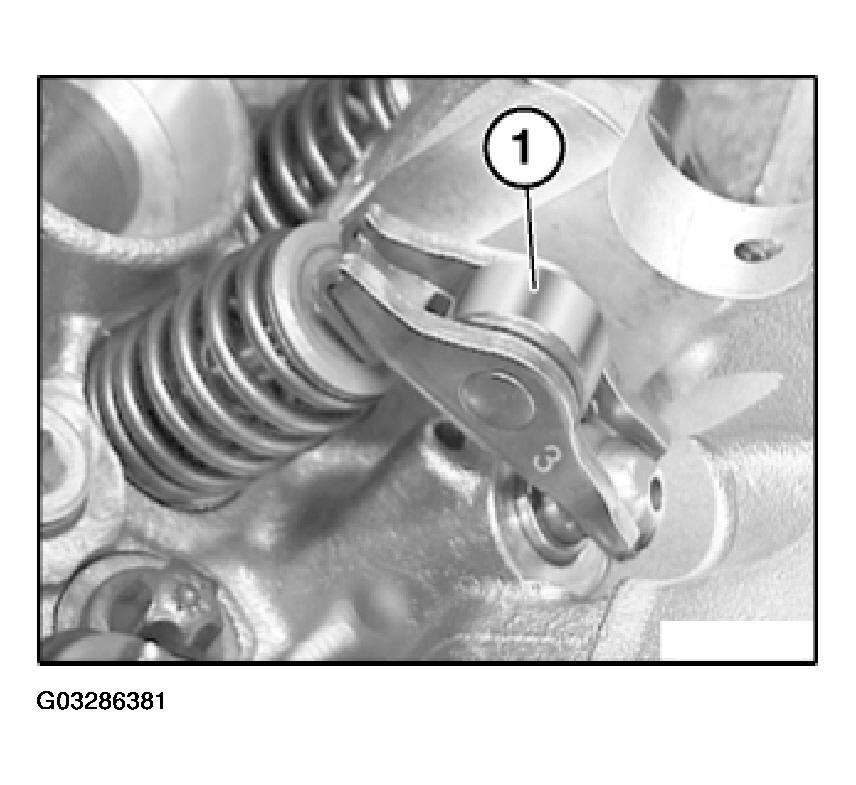

CAUTION: Rocker arms (1) slip slightly when exhaust camshaft is fitted. Make sure rocker arms (1) are secured as illustrated on hydraulic valve clearance compensating elements and on valves.

Used rocker arms (1) may only be reused in the same position.

Align rocker arms (1) straight.

Fig 13: Aligning Rocker Arms

Courtesy of BMW OF NORTH AMERICA, INC.

Lubricate exhaust camshaft and bearing caps with engine oil.

Install exhaust camshaft (1).

Rotate exhaust camshaft (1) until exhaust cam on cylinder 2 is facing upwards.

Fig 14: Installing Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Check adapter sleeves (2) for damage and correct installation position.

Ends of compression rings (1) point upwards.

Make sure compression rings (1) are engaged at ends.

Fig 15: Locating Adapter Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not mix up the camshaft bearing covers of cylinders 1 to 4 and 5 to 8.

NOTE: Bearing caps of exhaust camshaft are marked on cylinder bank 1 to 4 with L A1 to L A5 from inlet side.

Fit bearing caps L A2 to L A5.

Fig 16: Identifying Bearing Caps L A2 To L A5

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Retaining clips (1) for oil line are fitted on bearing caps 3 and 5.

Insert nuts and tighten by hand without play.

Tighten down nuts on bearing caps L A2 to L A5 in 1/2 turn increments evenly from inside to outside.

Tightening torque, refer to 11 31 1AZ in ENGINE - TIGHTENING TORQUES .

Fig 17: Identifying Retaining Clips For Oil Line

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not mix up the camshaft bearing covers of cylinders 1 to 4 and 5 to 8.

Fit bearing cap L A1 in such a way that marking is legible from inlet side.

Install nuts and tighten down.

Tightening torque, refer to 11 31 1AZ in ENGINE - TIGHTENING TORQUES .

Fig 18: Identifying Bearing Cap L A1

Courtesy of BMW OF NORTH AMERICA, INC.

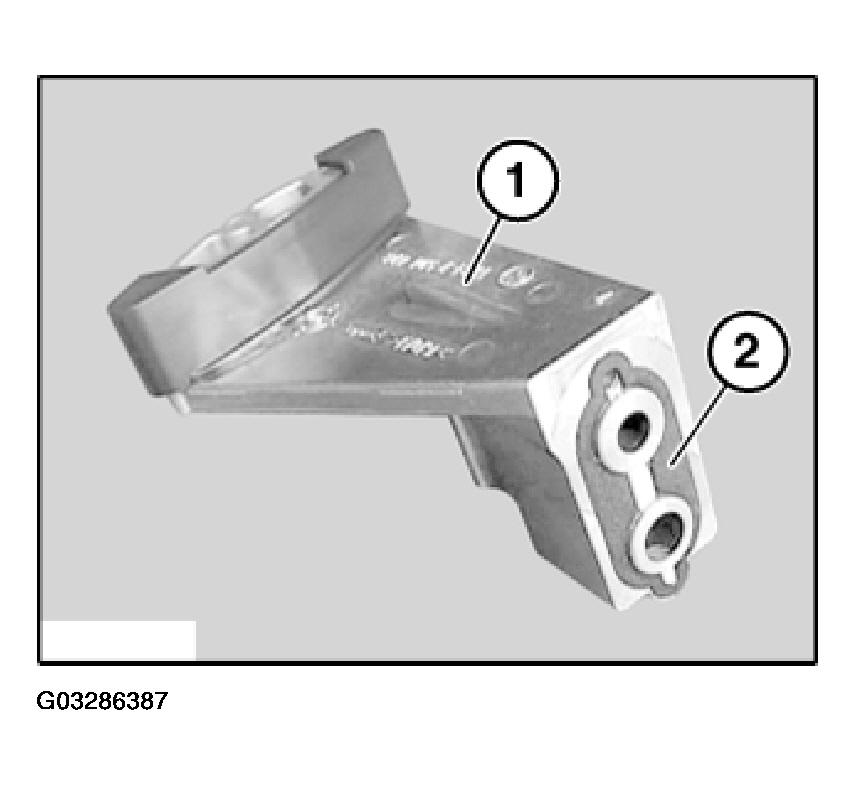

NOTE: A gasket (2) is installed between cylinder head and slide rail (1).

Replace gasket (2) and preinstall on slide rail (1).

Fig 19: Identifying Slide Rail Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Install slide rail (1) with gasket, insert screw and tighten down.

Fig 20: Installing Slide Rail With Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate exhaust camshaft against direction of rotation until cam on 1st cylinder points upwards at an angle as shown in illustration.

Fig 21: Identifying Exhaust Camshaft Position

Courtesy of BMW OF NORTH AMERICA, INC.

Install inlet and exhaust adjustment unit on right side. Refer to 11 36 048 REMOVING AND INSTALLING/REPLACING INLET AND EXHAUST ADJUSTMENT UNITS ON RIGHT SIDE (N62) .

Install spark plugs on cylinder bank 1 to 4.

Install right cylinder head cover. Refer to 11 12 006 REMOVING AND INSTALLING / SEALING RIGHT CYLINDER HEAD COVER (N62 / N62TU) .

Install ignition coils on cylinder bank 1 to 4.

Assemble engine.
