Buzzers, Relays & Timers
WARNING: This page is about a different car, the 1997 BMW 318ti. However, it is still accessible from the selected car via links, so may be relevant.
BUZZERS, RELAYS & TIMERS
| Component | Component Location |
|---|---|

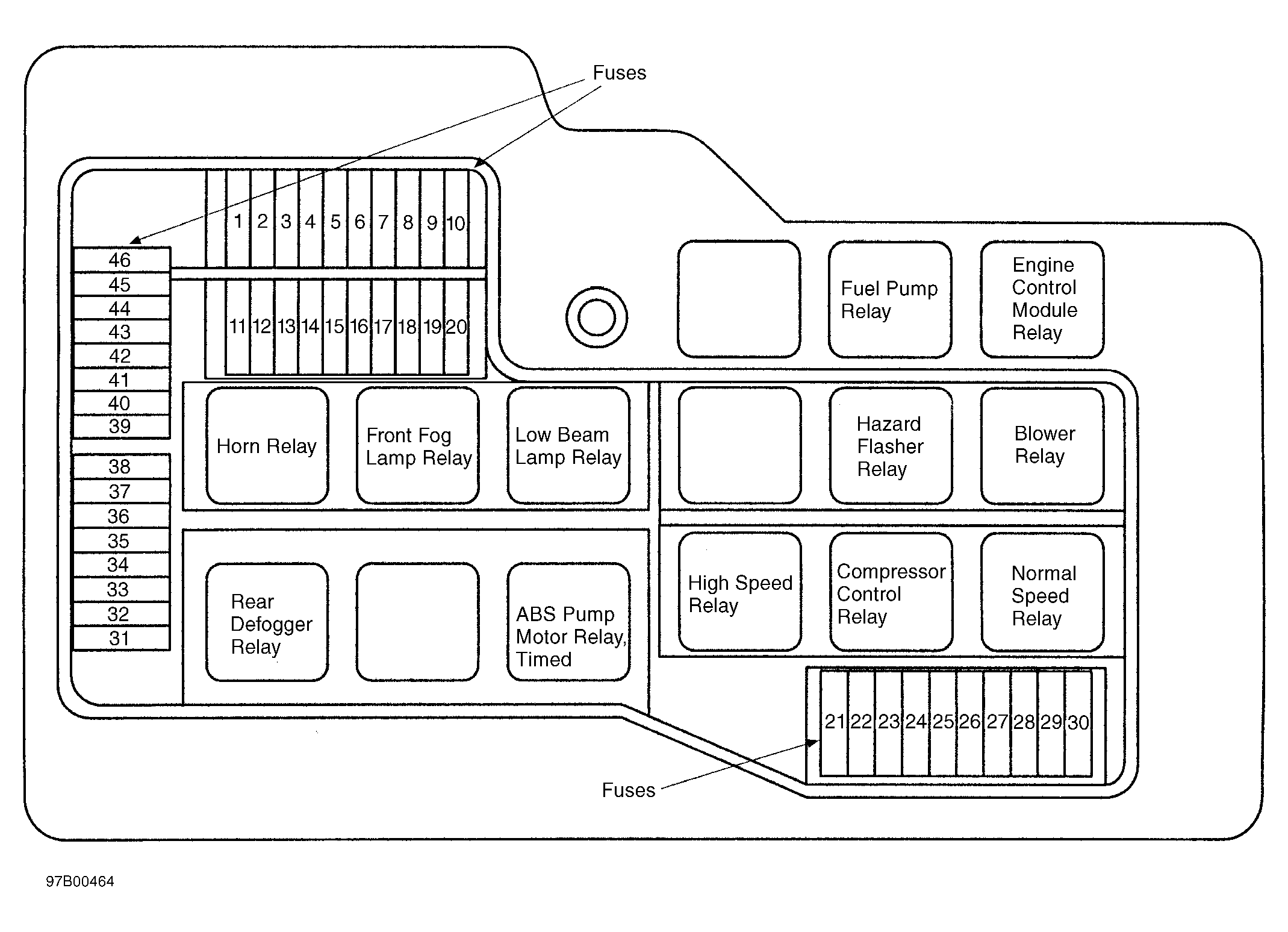

| ABS Pump Motor Relay, Timed | In engine compartment front power distribution box. See Figure . |
| Blower Relay | In engine compartment front power distribution box. See Figure . |

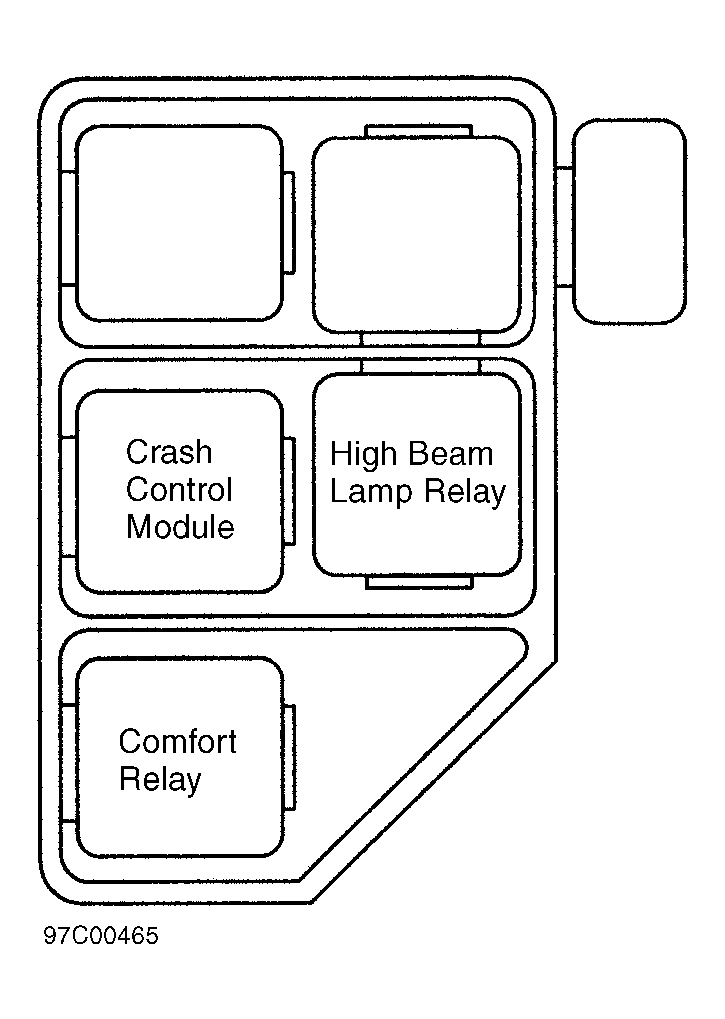

| Comfort Relay | On relay panel, under left side of dash. See Figure . |
| Compressor Control Relay | In engine compartment front power distribution box. See Figure . |
| Engine Control Module Relay | In engine compartment front power distribution box. See Figure . |
| Front Fog Lamp Relay | In engine compartment front power distribution box. See Figure . |
| Fuel Pump Relay | In engine compartment front power distribution box. See Figure . |
| Hazard Flasher Relay | In engine compartment front power distribution box. See Figure . |
| High Beam Lamp Relay | On relay panel, under left side of dash. See Figure . |
| High Speed Relay | In engine compartment front power distribution box. See Figure . |
| Horn Relay | In engine compartment front power distribution box. See Figure . |
| Low Beam Lamp Relay | In engine compartment front power distribution box. See Figure . |
| Normal Speed Relay | In engine compartment front power distribution box. See Figure . |
| Rear Defogger Relay | In engine compartment front power distribution box. See Figure . |
| Unloader Relay | On splice panel, under left side of dash. See Figure . |
