67 32 620 Replacing fan for thigh support on front seat (comfort seat)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove THIGH SUPPORT .

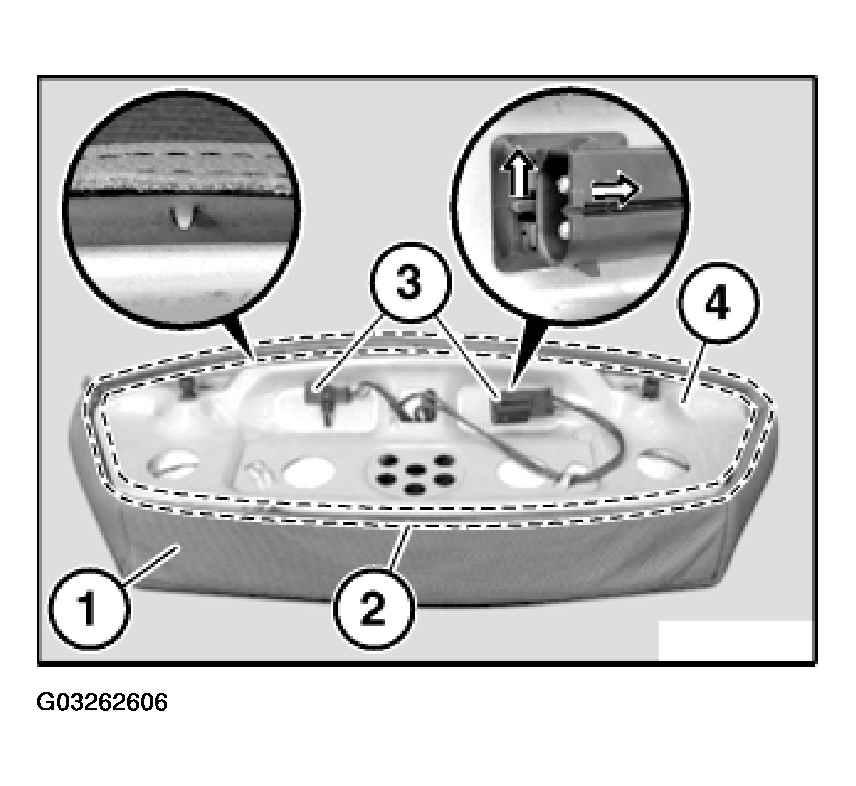

Unhook seat cover (1) in area (2).
Feed out plug housing (3) through opening in trim (4).
Remove trim (4).

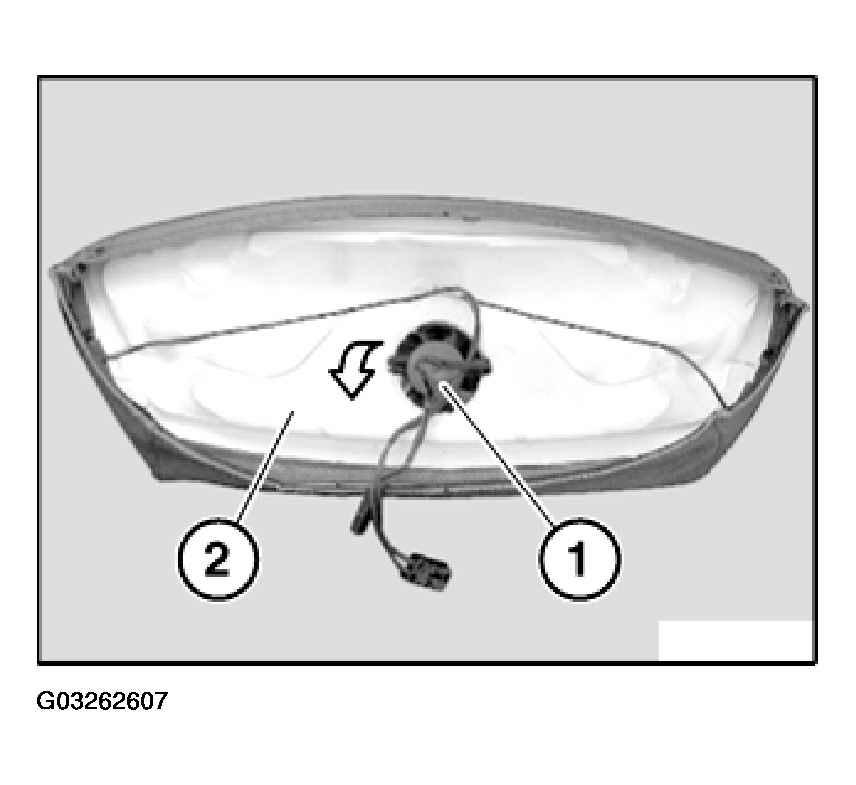

Feed fan (1) in direction of arrow out of thigh support cushion section (2) and remove.
