67 32 600 Replacing fan for front seat surface (comfort seat)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
US/CND front passenger seat (with OC3 mat) only:
Seat cover must not be separated from padding.
All parts must be replaced completely and released with the diagnosis system in event of defective fan, seat cover, seat heating, OC3 mat or padding.
Seat cover must not be separated from padding.
All parts must be replaced completely and released with the diagnosis system in event of defective fan, seat cover, seat heating, OC3 mat or padding.
Necessary preliminary tasks:
- Remove FRONT SEAT .
- Partially remove cover for front seat.
NOTE:

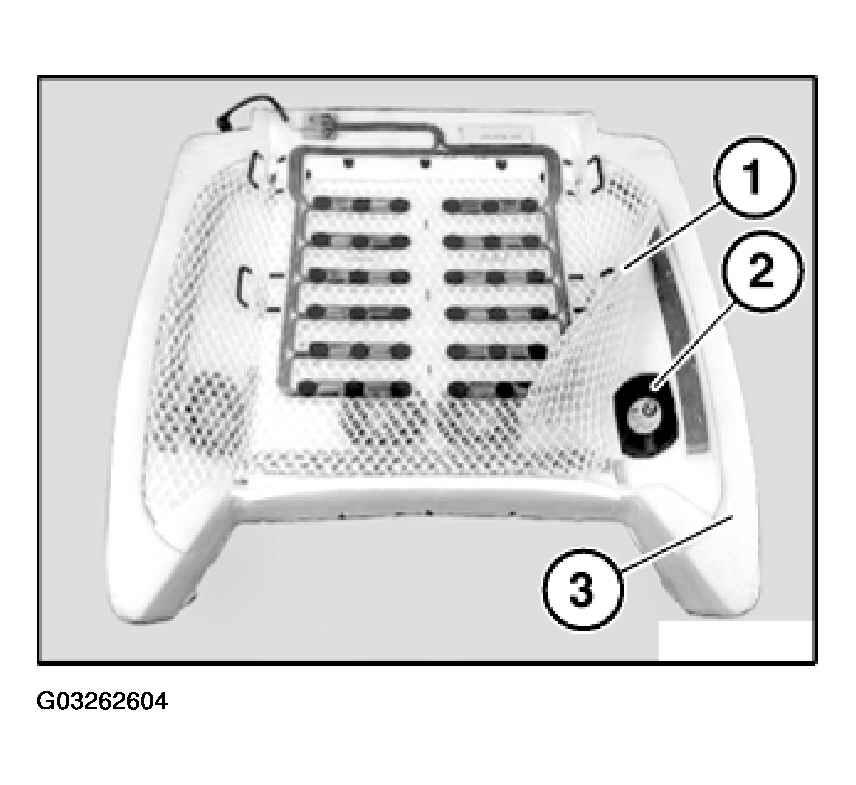

For purposes of clarity, illustration shows seat padding and seat cover removed.
Lift dividing net (1), pull fan for seat surface (2) out of seat padding (3) slightly and disconnect plug connection behind.
Remove fan for seat surface (2).
