67 66 010 Removing and installing/replacing lumbar support drive mechanism on front seat, left or right

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR PANEL ON FRONT SEAT BACKREST .

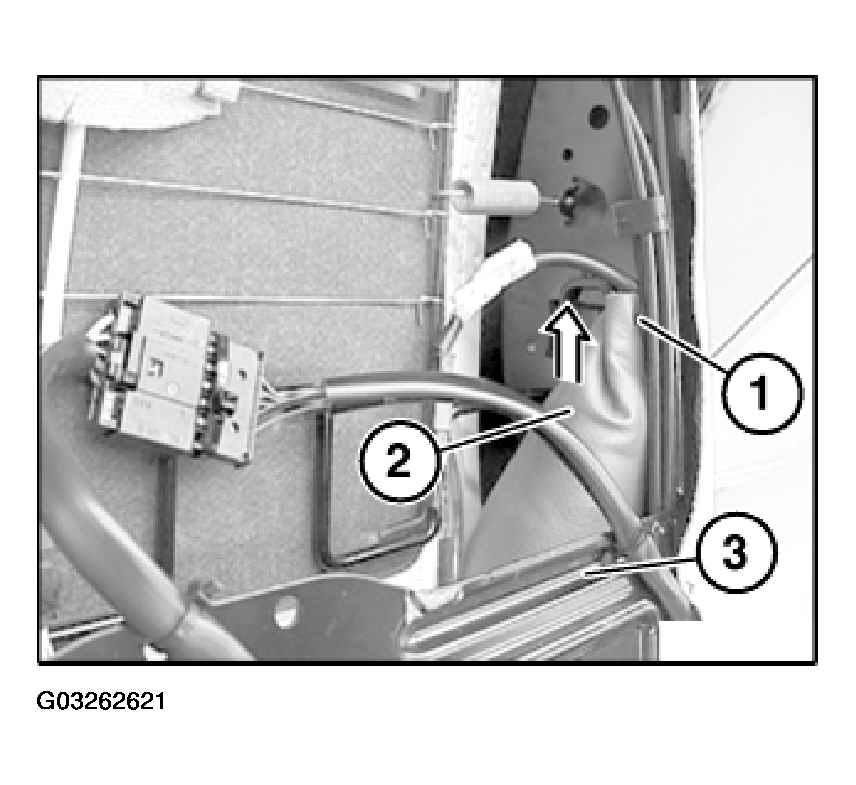

Fig 1: Removing Rear Panel On Front Seat Backrest

G03262621

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through cable tie (1).

Pull drive unit for lumbar support (2) with jacket slightly out of backrest frame (3).

Cut through cable tie (1) on jacket of drive unit for lumbar support (2).

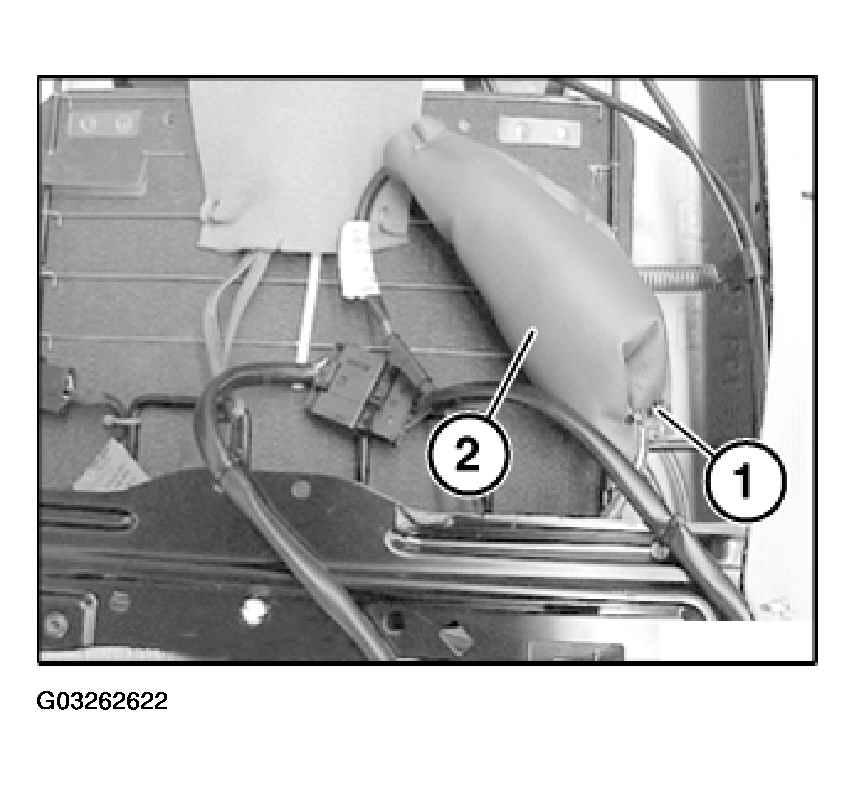

Fig 2: Pulling Drive Unit For Lumbar Support With Jacket Slightly Out Of Backrest Frame

G03262622

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Detach hose (2).

NOTE: If firmly seated, gently heat hose (2) on drive unit for lumbar support (3).

Installation:

Make sure hose (2) is laid without kinks.

Remove drive unit for lumbar support (3).

Replacement:

Pull drive unit for lumbar support (3) in direction of arrow out of jacket (4).

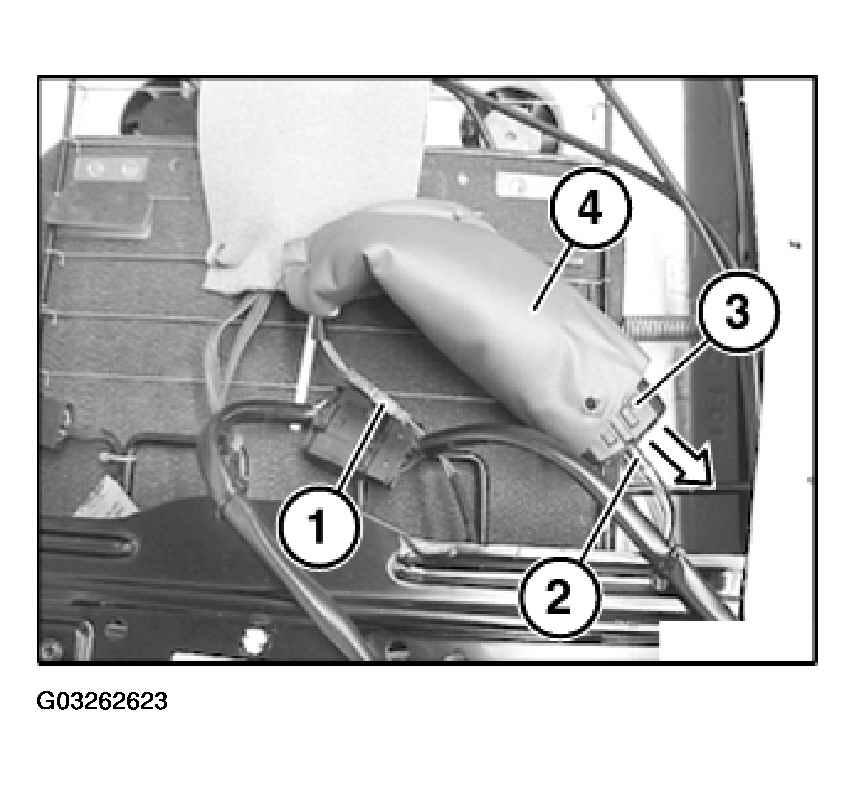

Fig 3: Removing Drive Unit For Lumbar Support

G03262623

Courtesy of BMW OF NORTH AMERICA, INC.
