67 31 520 Removing and installing/replacing drive unit for seat height adjustment

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT SEAT .
Remove OUTER COVER ON FRONT SEAT .

Set down front seat sideways on a suitable surface.

Disconnect plug connection (1).

Loosen screws (2).

Tightening torque: 8 Nm

Feed out drive unit for seat height adjustment (3) and remove.

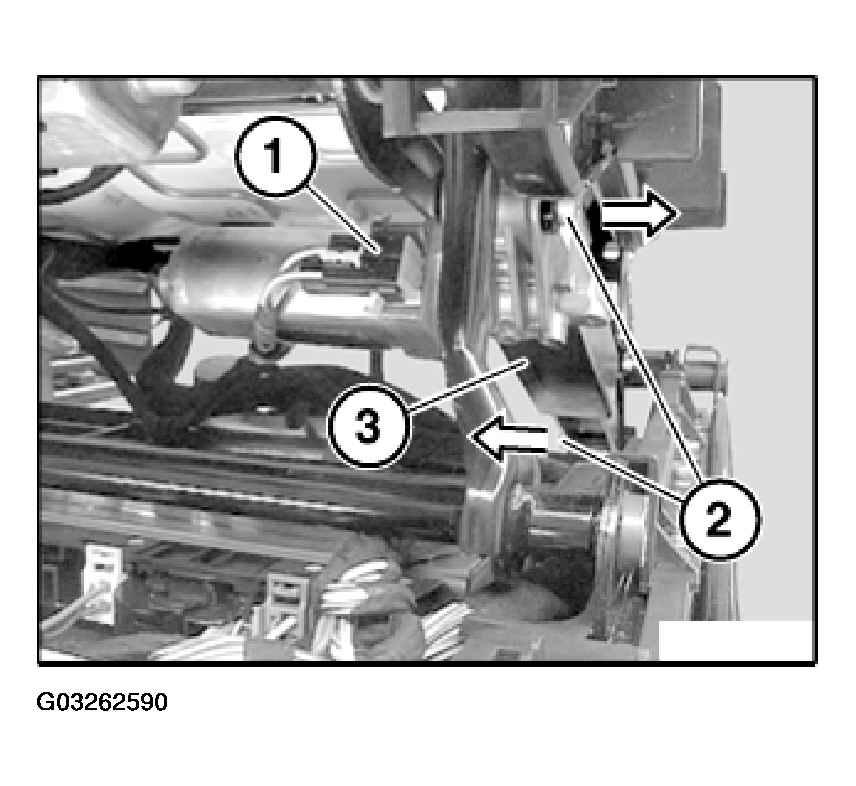

Fig 1: Feeding Out Drive Unit For Seat Height Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit drive unit for seat height adjustment (1) with plastic clip (2) only.

Make sure plastic clip (2) is correctly seated.

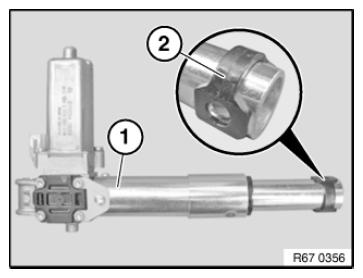

Fig 2: Identifying Seat Height Adjustment Drive Unit And Plastic Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

INITIALIZE drive unit for backrest head adjustment.
