BUZZERS, RELAYS & TIMERS LOCATION
| Component | Component Location |
|---|---|
| Air Conditioning Relay, Motronic (3.2L) | In front power distribution box. |
| Air Conditioning Relay/Auxiliary Water Pump Relay (3.2L) | In front power distribution box. See Figure . |

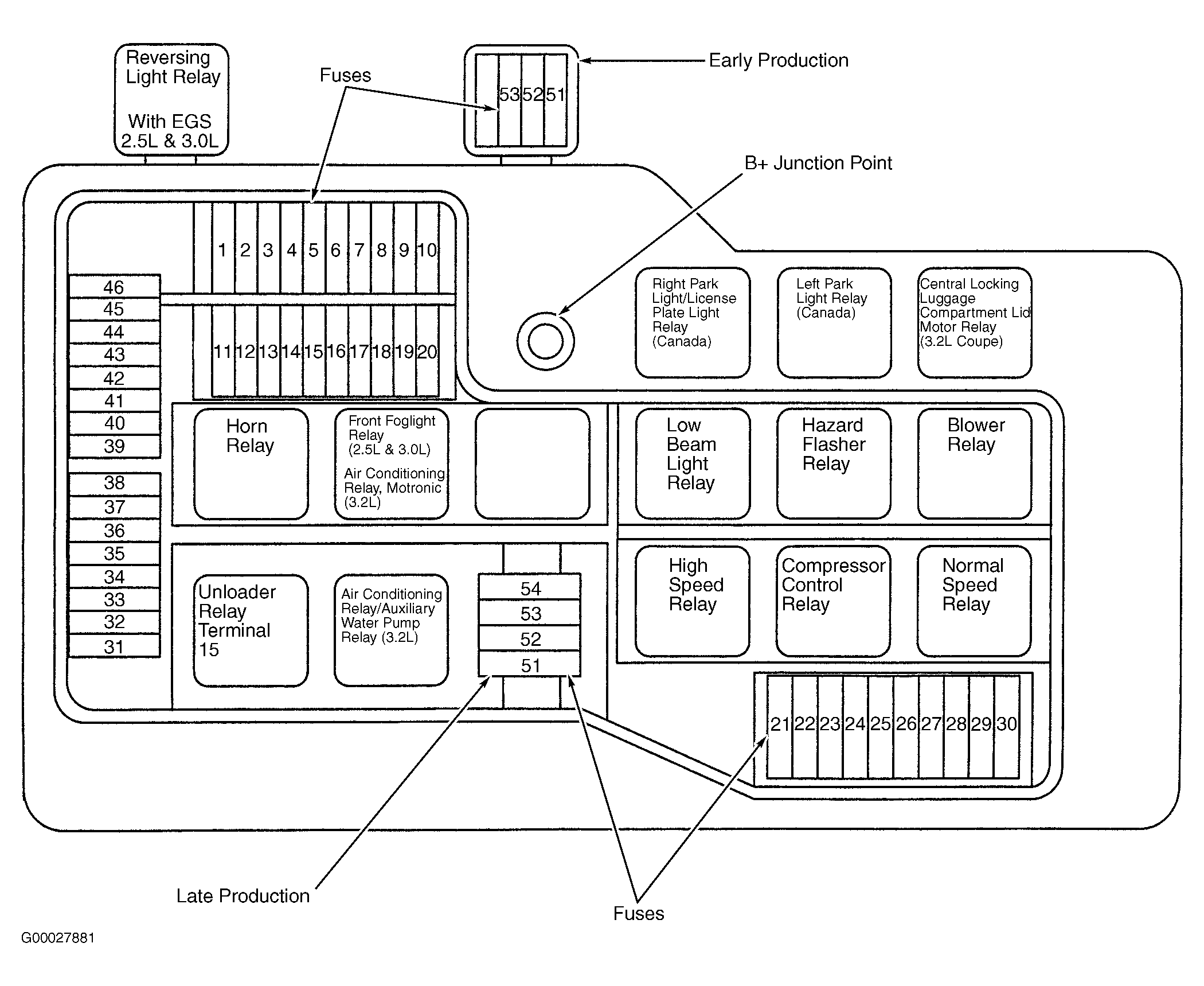

| Blower Relay | In front power distribution box. See Figure . |
| Central Locking Luggage Compartment Lid Motor Relay (3.2L Coupe) | In front power distribution box. See Figure . |
| Compressor Control Relay | In front power distribution box. See Figure . |
| Convertible Top Relay I (Close) | On left side of luggage compartment. |
| Convertible Top Relay II (Open) | On left side of luggage compartment. |
| Driver's Seat Length Adjust Cut Off Relay | Under left front seat. |
| Driver's Seat Tilt Adjust Cut Off Relay | Under left front seat. |

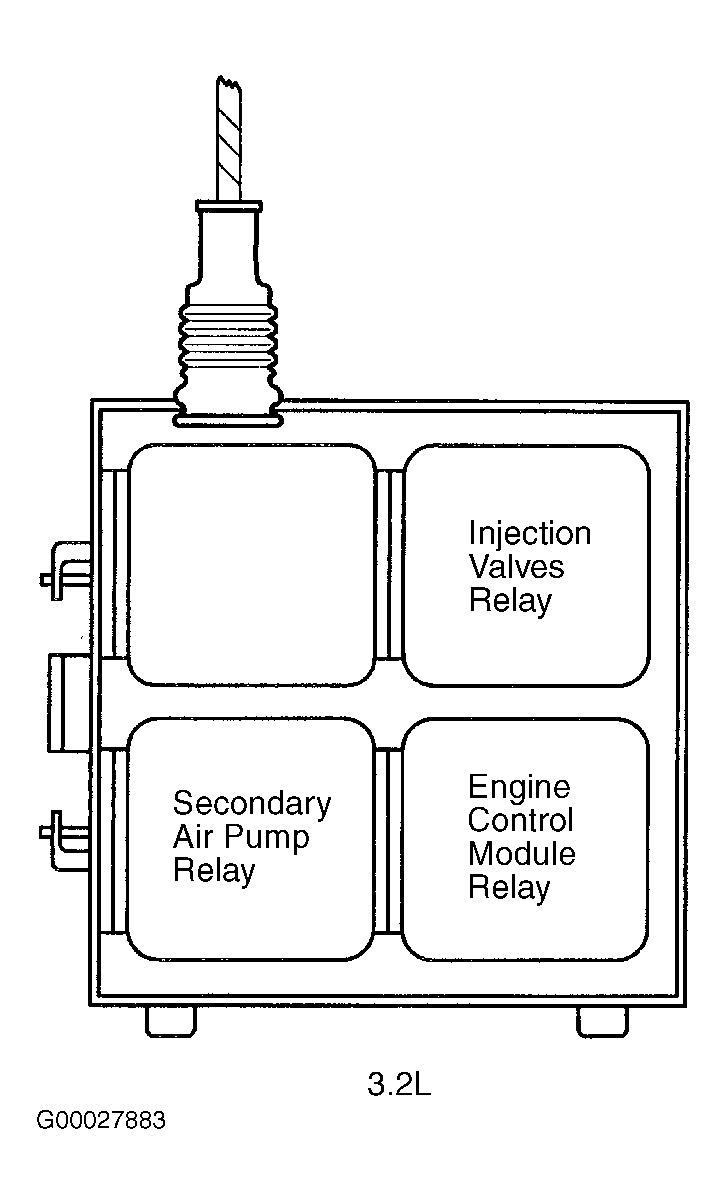

| Engine Control Module Relay (2.5L) | In E-box, on right rear side of engine compartment. See Figure . |
| Engine Control Module Relay (3.0L) | In E-box, on right rear side of engine compartment. See Figure . |
| Engine Control Module Relay (3.2L) | In E-box, on right rear side of engine compartment. See Figure . |
| Front Foglight Relay (2.5L) | In front power distribution box. See Figure . |
| Front Foglight Relay (3.0L) | In front power distribution box. See Figure . |
| Front Foglight Relay (3.2L) | In left rear of engine compartment. |
| Fuel Pump Relay | On relay panel, under left side of dash. See Figure . |
| Hazard Flasher Relay | In front power distribution box. See Figure . |
| High Beam Light Relay | On relay panel, under left side of dash. See Figure . |
| High Speed Relay | In front power distribution box. See Figure . |
| Horn Relay | In front power distribution box. See Figure . |
| Injection Valves Relay (2.5L) | In E-box, on right rear side of engine compartment. See Figure . |
| Injection Valves Relay (3.0L) | In E-box, on right rear side of engine compartment. See Figure . |
| Injection Valves Relay (3.2L) | In E-box, on right rear side of engine compartment. See Figure . |
| Left Park Light Relay (Canada) | In front power distribution box. See Figure . |
| Low Beam Light Relay | In front power distribution box. See Figure . |
| Normal Speed Relay | In front power distribution box. See Figure . |
| Passenger's Seat Length Adjust Cut Off Relay | Under right front seat. |
| Passenger's Seat Tilt Adjust Cut Off Relay | Under right front seat. |
| Reversing Light Relay (With EGS) (2.5L) | In front power distribution box. See Figure . |
| Reversing Light Relay (With EGS) (3.0L) | In front power distribution box. See Figure . |
| Right Park Light/License Plate Light Relay (Canada) | In front power distribution box. See Figure . |
| Secondary Air Pump Relay (2.5L) | In E-box, on right rear side of engine compartment. See Figure . |
| Secondary Air Pump Relay (3.0L) | In E-box, on right rear side of engine compartment. See Figure . |
| Secondary Air Pump Relay (3.2L) | In E-box, on right rear side of engine compartment. See Figure . |
| Unloader Relay Terminal 15 | In front power distribution box. See Figure . |
