65 13 195 Removing and installing/replacing rear treble speaker (in rear shelf)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR MID-RANGE SPEAKER .

Disconnect plug connection (1).

Release screws (2).

Remove rear treble speaker (3) from rear shelf (4).

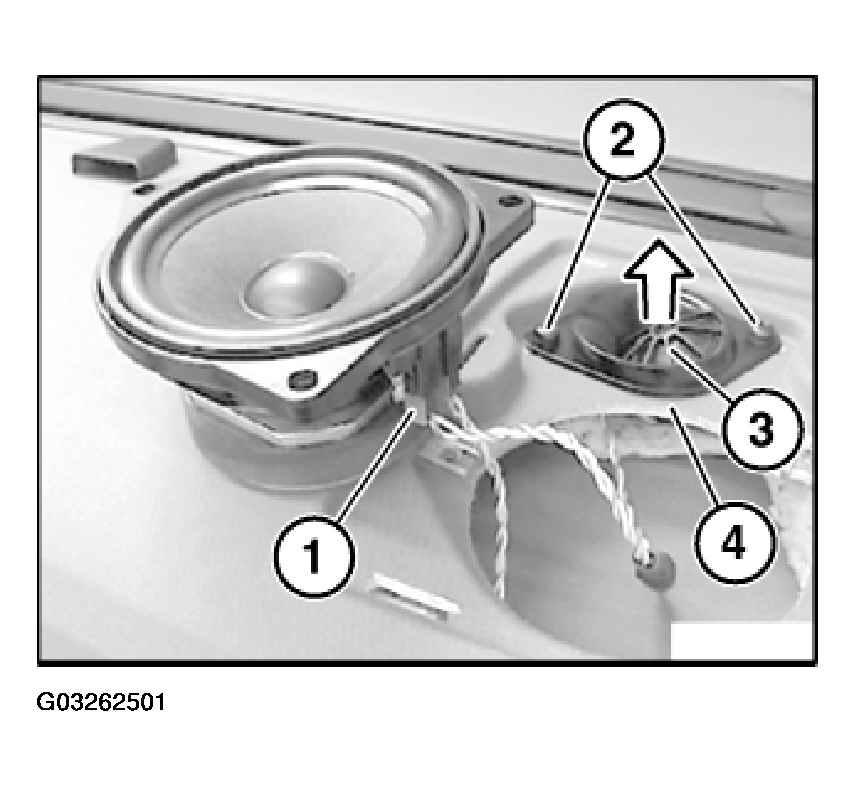

Fig 1: Removing Rear Treble Speaker From Rear Shelf

Courtesy of BMW OF NORTH AMERICA, INC.
