65 12 355 Removing and installing/replacing fan (luggage compartment recess)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
Remove spare wheel.

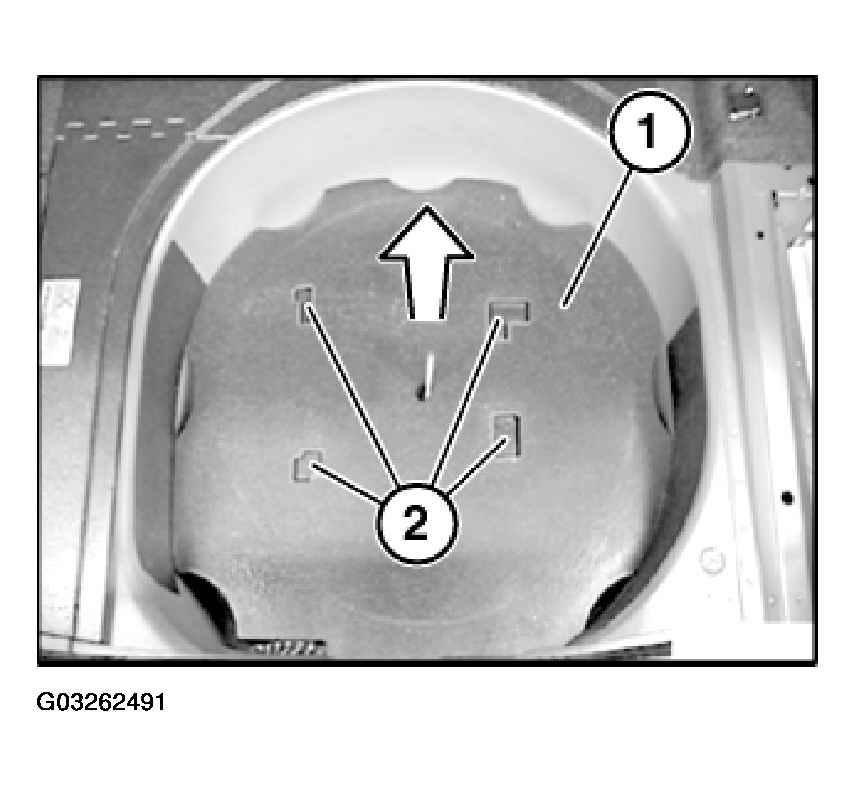

Take off cover for control units (1).

Installation:

Make sure cover for control units (1) is correctly seated on locating pins (2).

Fig 1: Removing Cover For Control Units

Courtesy of BMW OF NORTH AMERICA, INC.

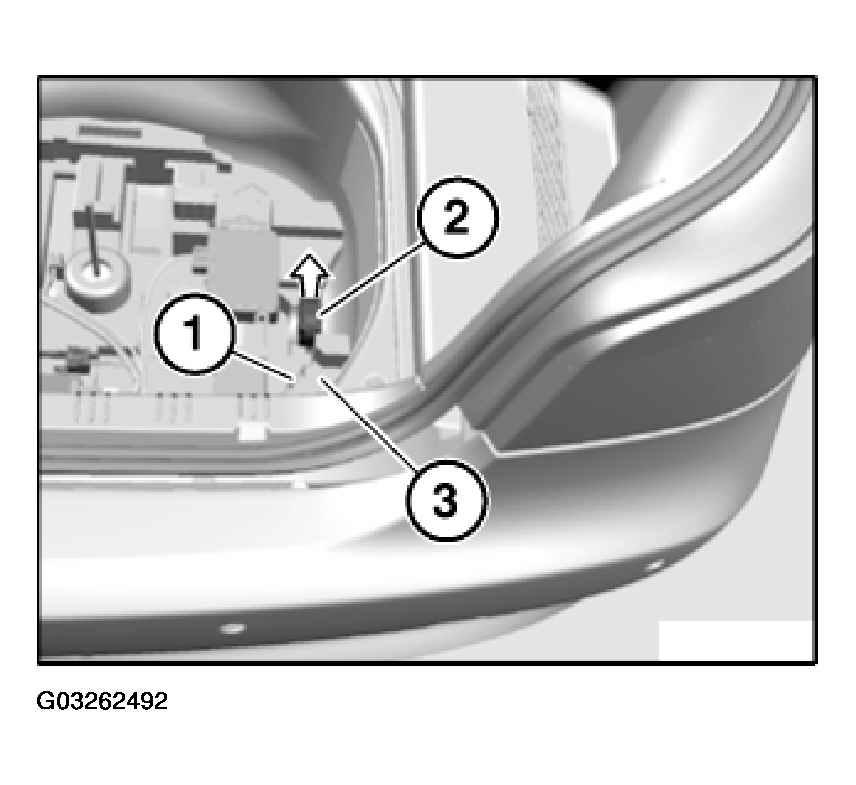

Disconnect plug connection (1).

Lift fan (2) out of mounting for control units (3).

Fig 2: Lifting Fan Out Of Mounting For Control Units

Courtesy of BMW OF NORTH AMERICA, INC.
