61 33 060 Removing and installing/replacing both fanfare horns

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Detach cover (2) from front underride protection (3) and feed out in direction of arrow.

Remove cover (2).

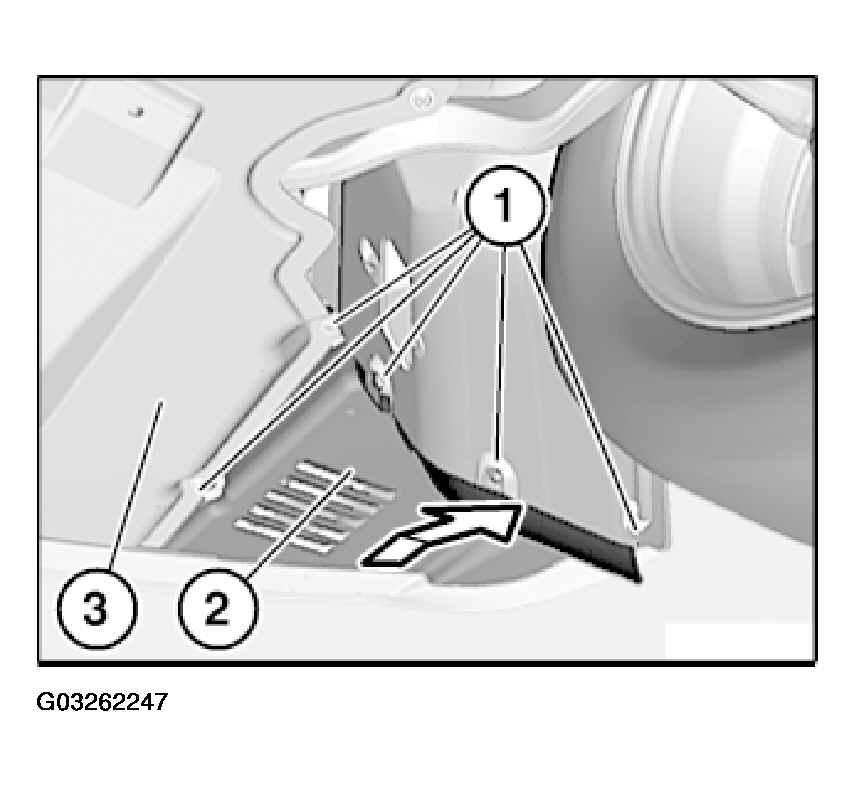

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Release nuts (2) and remove fanfare horns (3).

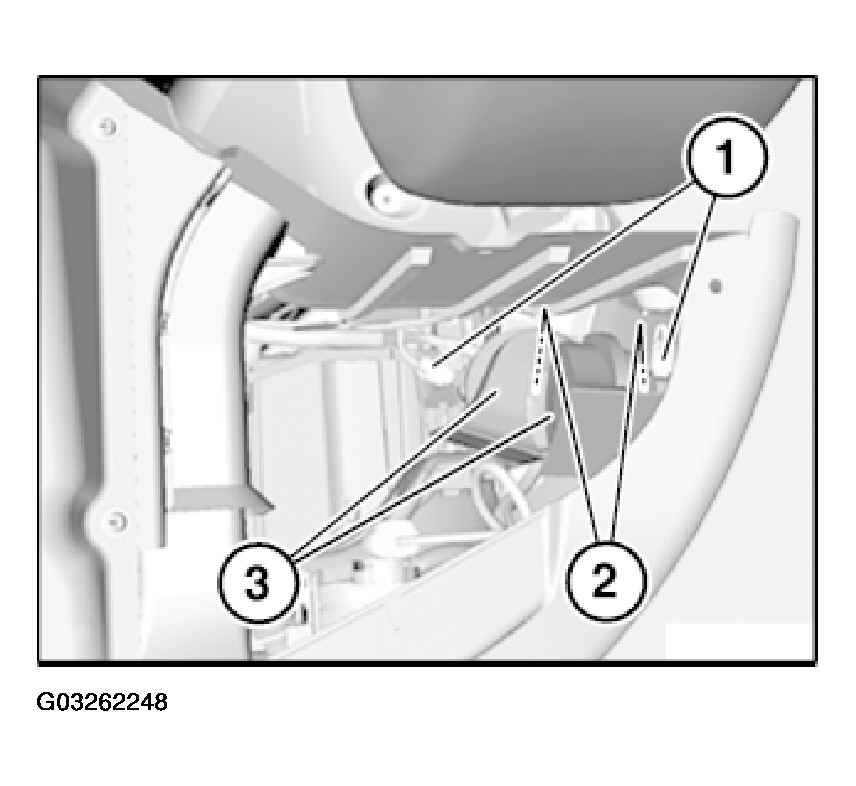

Fig 2: Removing Fanfare Horns

Courtesy of BMW OF NORTH AMERICA, INC.
