54 12 270 Removing and installing/replacing adjuster for glass slide/tilt sunroof lid

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove Glass Sunroof Lid .

Close glass sunroof lid (zero position).

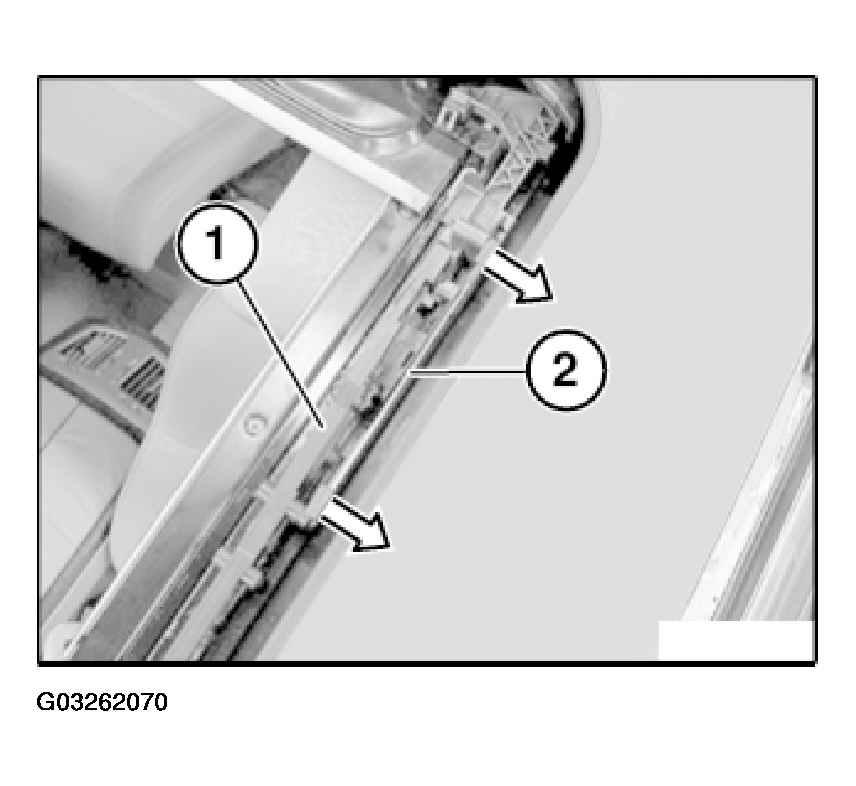

Unhook lever (2) from adjuster (1).

Fig 1: Unhooking Lever From Adjuster

G03262070

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

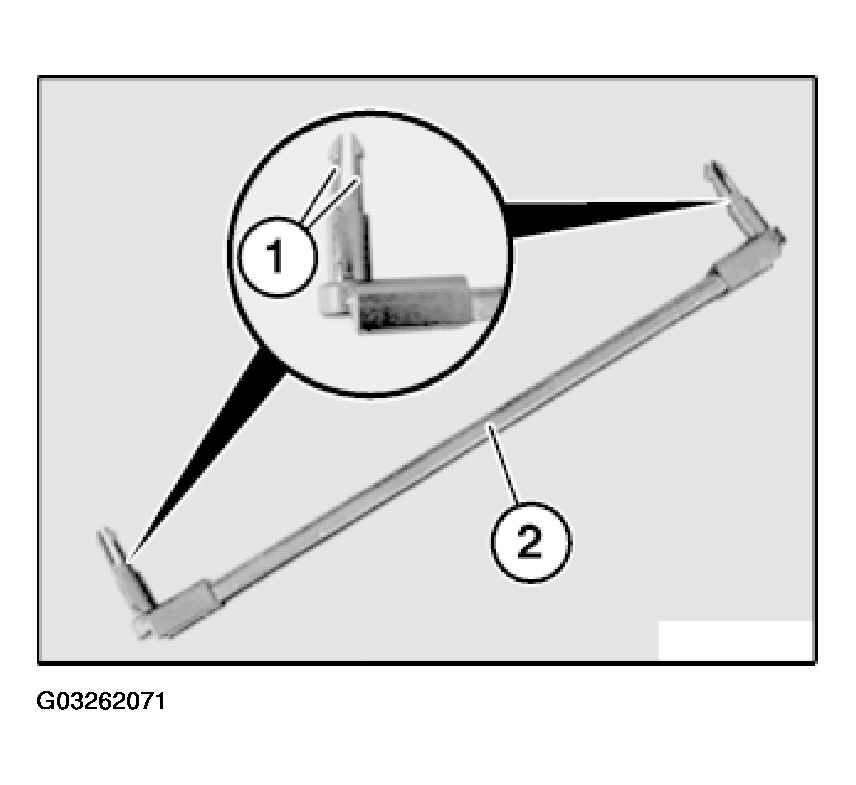

Locking catches (1) of lever (2) must not be damaged.

Fig 2: Locking Catches Of Lever

G03262071

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

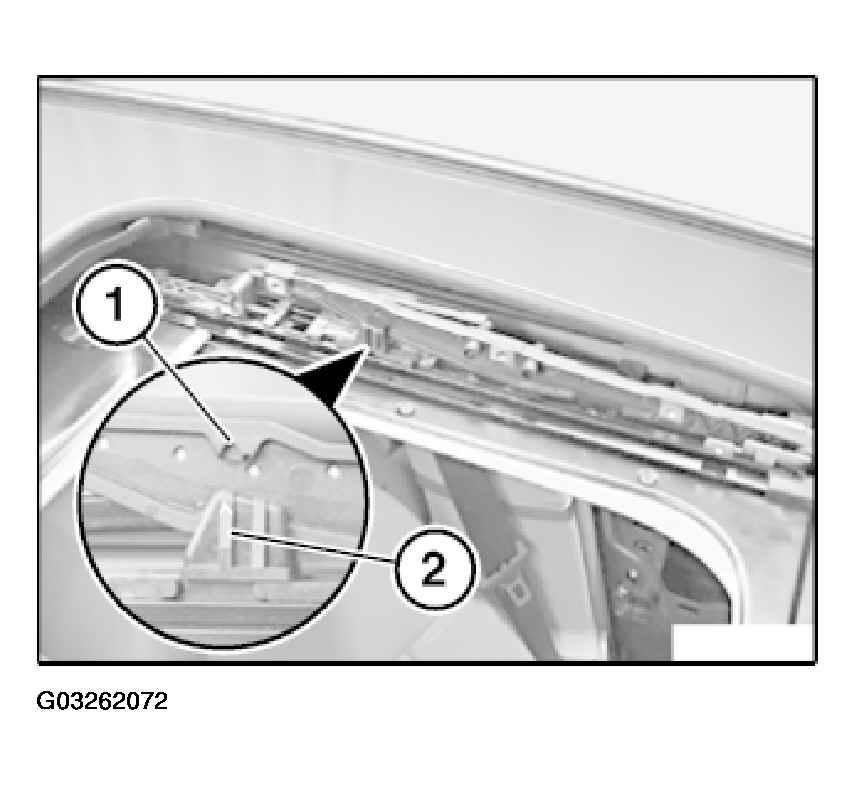

When glass sunroof is in zero position, marking (1) on adjuster must be positioned over marking (2) on slider.

If necessary, move adjuster or slider.

Fig 3: Moving Adjuster Or Slider

G03262072

Courtesy of BMW OF NORTH AMERICA, INC.

Move glass sunroof lid into "lift position".

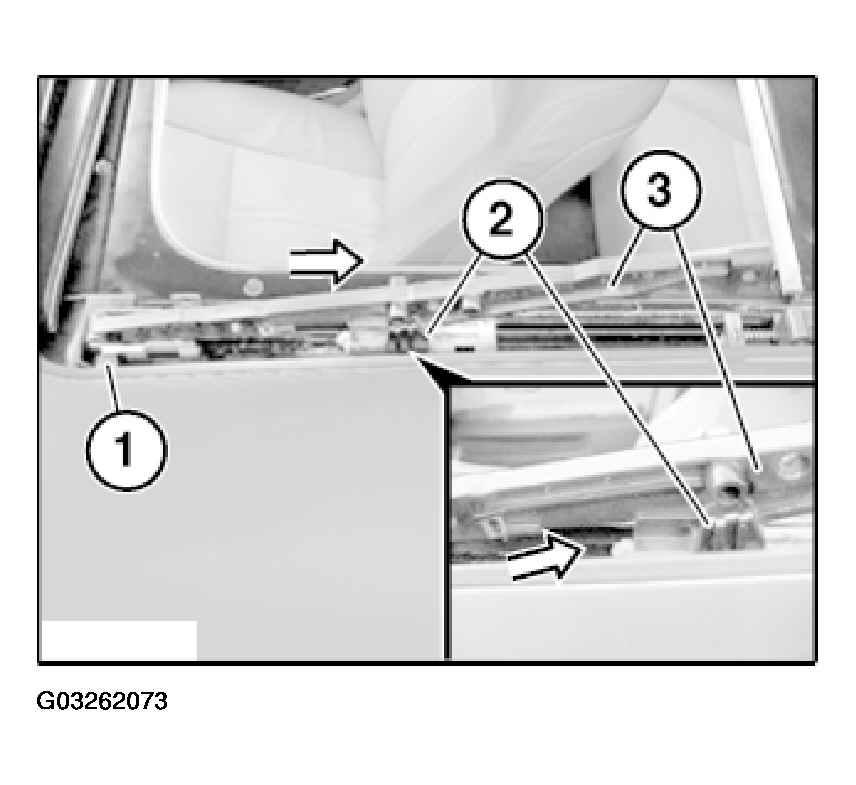

Pull adjuster (3) and carriage (1) together towards rear until adjuster (3) can be unhooked from slider (2).

Grip slider (2) in so doing.

Fig 4: Pulling Adjuster And Carriage Together Towards Rear

G03262073

Courtesy of BMW OF NORTH AMERICA, INC.

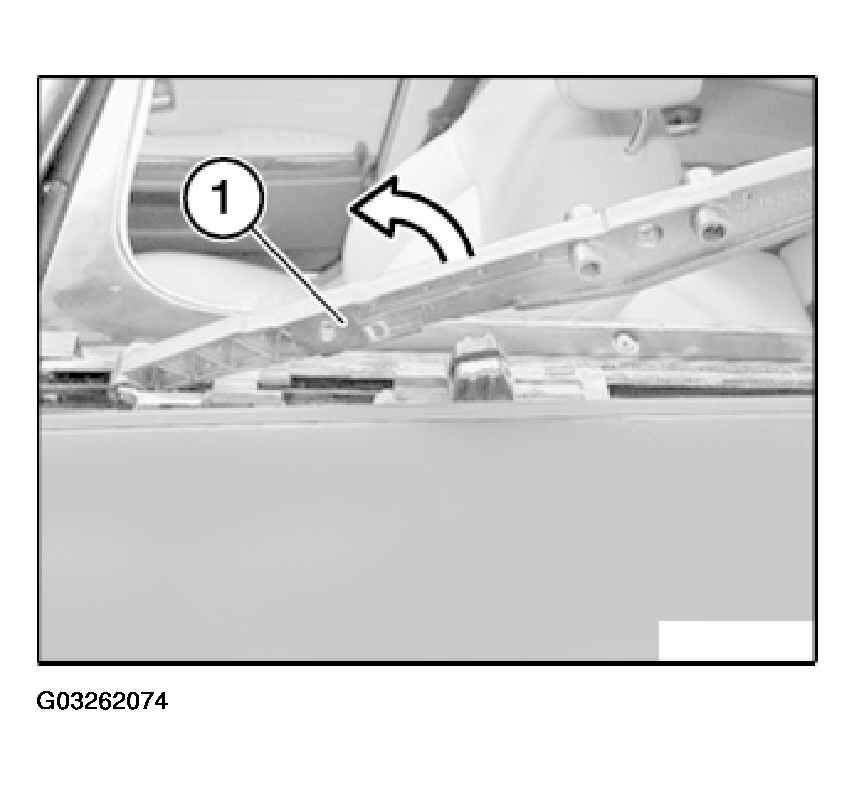

Twist adjuster (1) upwards.

Fig 5: Twisting Adjuster Upwards

G03262074

Courtesy of BMW OF NORTH AMERICA, INC.

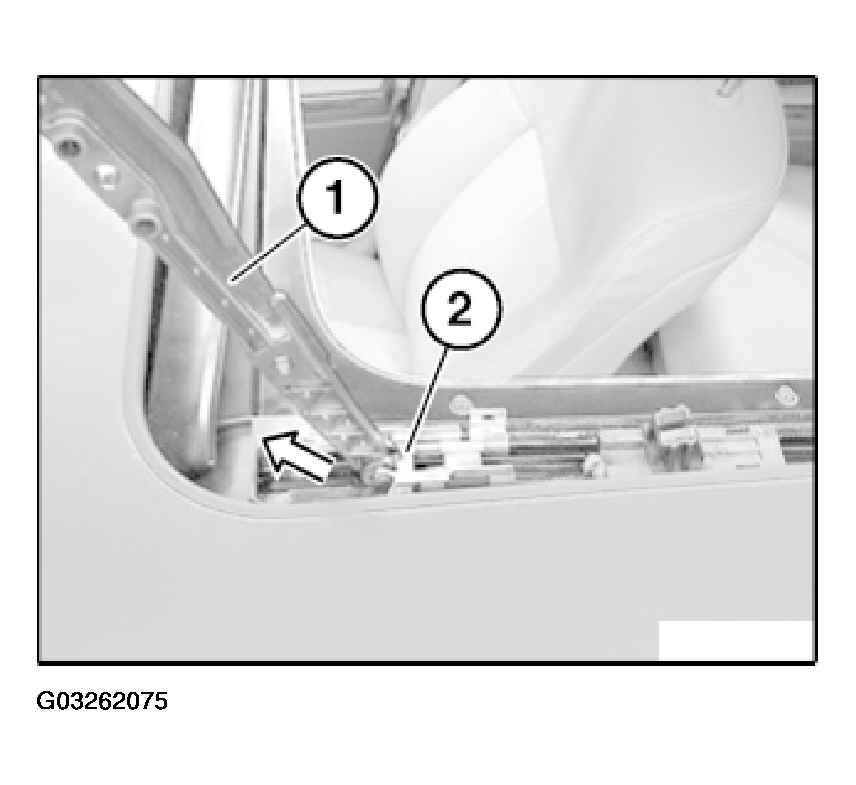

Unhook adjuster (1) from carriage (2).

Fig 6: Unhooking Adjuster From Carriage

G03262075

Courtesy of BMW OF NORTH AMERICA, INC.
